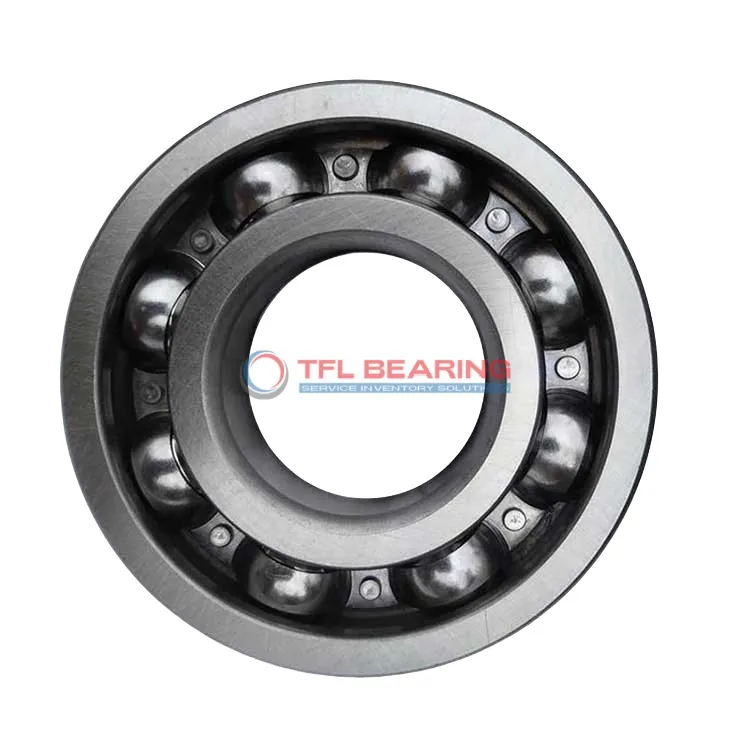

Single Row Deep Groove Ball Bearings 6006/C2E

Single Row Deep Groove Ball Bearings 6006/C2E

The 6006/C2E is a single row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 2967 lbf and operates smoothly at speeds up to 13,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability under stress. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 116g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006/C2E
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
Single Row Deep Groove Ball Bearings 6006/C2E dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006/C2E Bearing

6006/C2E Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2967 lbf, ensuring dependable performance in various applications.

The chrome steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 13,000 rpm, it delivers a balance of durability and efficiency.

6006/C2E Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication, enhancing long-term reliability.

Application

Industrial Uses of 6006/C2E Bearing
6006/C2E Bearing is commonly used in conveyor systems and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in dusty environments.

What Makes 6006/C2E Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6006/C2E Bearing handles moderate speeds with reliability. Its chrome steel construction resists wear, making it suitable for long-term use.

Perfect Fit for Automation: 6006/C2E Bearing
6006/C2E Bearing works well in robotic arms and packaging machines, thanks to its balanced radial load performance. The C2 clearance provides flexibility in temperature-varying conditions.

Medical vs Industrial: Where 6006/C2E Bearing Excels
While 6006/C2E Bearing supports industrial gearboxes, it also fits lab equipment like centrifuges. Its consistent performance meets both precision and durability needs.
