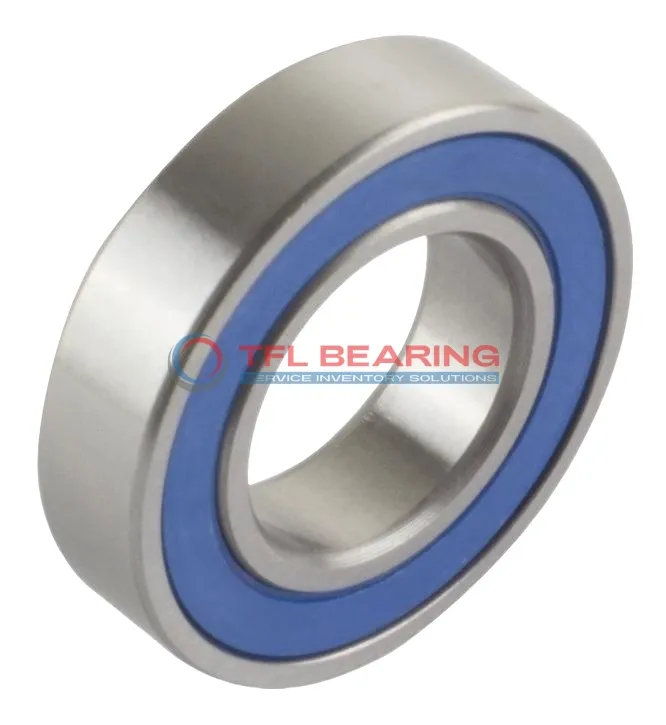

Single Row Deep Groove Ball Bearings 6003-RSJEM

Single Row Deep Groove Ball Bearings 6003-RSJEM

The 6003-RSJEM is a compact single-row deep groove ball bearing, measuring 17mm by 35mm by 10mm, crafted from sturdy chrome steel for durability. It handles radial loads up to 1349 lbf and spins smoothly at speeds up to 21,000 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for small motors, pumps, or appliances where space is limited but performance is key.

Weighing just 39g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6003-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g
  • price（$） 3.96
Single Row Deep Groove Ball Bearings 6003-RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6003-RSJEM Bearing for Precision Tasks?

6003-RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

With a dynamic radial load capacity of 1349 lbf, it handles demanding tasks with ease.
The bearing operates efficiently at speeds up to 21,000 rpm, making it suitable for high-speed applications.

6003-RSJEM Bearing’s temperature range of -30°C to 120°C allows for reliable use in various environments.
Its compact size (17 mm x 35 mm x 10 mm) makes it ideal for space-constrained installations.

Application

Common Applications of 6003-RSJEM Bearing
6003-RSJEM Bearing is widely used in small electric motors, such as those found in household appliances like washing machines and fans. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday environments.

How Does 6003-RSJEM Bearing Improve Performance?
In automotive applications, 6003-RSJEM Bearing provides smooth rotation for components like alternators and water pumps. The chrome steel construction offers good wear resistance, making it reliable for continuous use.

Built for Versatility: 6003-RSJEM Bearing
This bearing fits well in light industrial equipment, including conveyor systems and small gearboxes. The metric sizing and ABEC 1 tolerance make it easy to replace in various machinery setups.

Automotive vs Industrial: Where 6003-RSJEM Bearing Excels
While commonly found in car parts, 6003-RSJEM Bearing also works well in power tools and small machinery. Its balanced performance handles both radial loads and moderate speeds effectively.
