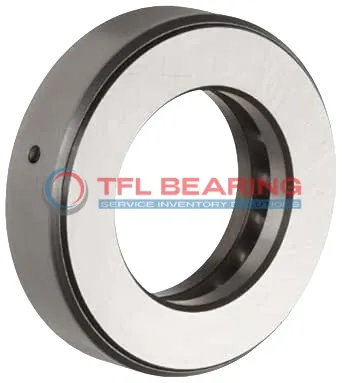

Thrust Ball Bearing With Outside Band T-100-31

Thrust Ball Bearing With Outside Band T-100-31

The T-100-31 is a thrust ball bearing measuring 2″×3″×0.812500″, crafted from durable 52100 chrome steel. It handles thrust loads up to 6485 lbf and operates smoothly in temperatures from -30°C to 110°C.

With a 2″ bore and 3″ outer diameter, this bearing is designed for high-load applications. Its 20 steel balls, each 3/8″ in size, ensure even weight distribution and reliable performance.

The open design requires regular lubrication, making maintenance straightforward. It’s compliant with RoHS and REACH standards, ensuring safe use in various environments.

Ideal for heavy machinery or industrial equipment, this bearing offers a balance of strength and precision. Weighing 0.33kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-31
  • Brand TFL
  • Bore Dia 2"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.031250"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.812500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 20
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 6485 lbf
  • Dynamic Thrust Load(100 RPM) 4270 lbf
  • Dynamic Thrust Load(500 RPM) 2630 lbf
  • Dynamic Thrust Load(1500 RPM) 1890 lbf
  • Static Thrust Load 25129 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.33 kg

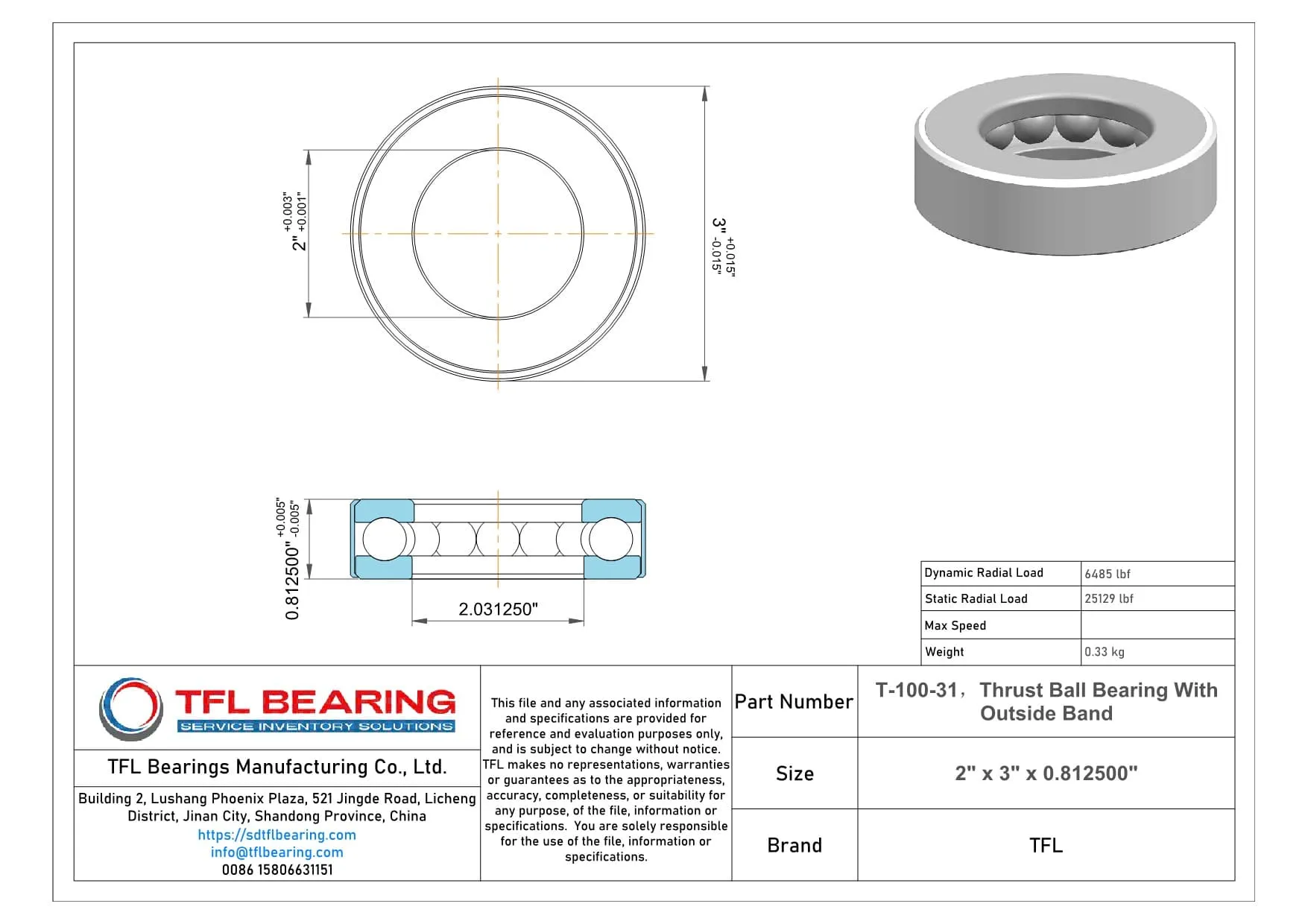

Thrust Ball Bearing With Outside Band T-100-31 dimension drawing
Download DWG Download PDF

Features

How Does T-100-31 Bearing Handle Heavy Loads?

T-100-31 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 25129 lbf, ensuring dependable performance in demanding conditions.

The bearing’s design includes 20 steel balls, each with a diameter of 3/8″, for balanced load distribution.
With a maximum operating temperature of 110°C, it remains reliable in various environments.

T-100-31 Bearing requires lubrication, which helps maintain smooth operation and prolongs its service life.
Its inch-based measurements make it compatible with systems using imperial units.

Application

Industrial Uses of T-100-31 Bearing
T-100-31 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its high thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial standards.

In automotive applications, T-100-31 Bearing handles axial loads in components like steering systems and transmissions. Its chrome steel construction provides durability under constant stress, making it a dependable choice for vehicle manufacturers.

For automation systems, T-100-31 Bearing supports robotic arms and conveyor belts, where precise movement is essential. The required lubrication helps maintain smooth operation over extended periods.

Where Is T-100-31 Bearing Used?
You’ll often find T-100-31 Bearing in industrial fans and compressors, where its ability to handle dynamic thrust loads keeps operations running smoothly. The temperature range also makes it suitable for varied working conditions.

In household appliances like washing machines, T-100-31 Bearing ensures quiet and efficient performance. Its balanced design reduces vibration, contributing to longer appliance life.

Built for Heavy-Duty Use: T-100-31 Bearing
T-100-31 Bearing excels in construction equipment, such as cranes and excavators, where its static thrust load capacity is crucial. The stainless steel balls enhance wear resistance in tough environments.

Medical devices like centrifuges benefit from T-100-31 Bearing’s precision and reliability. Its consistent performance under load makes it ideal for lab equipment requiring accurate results.

Automotive vs Aerospace: Applications of T-100-31 Bearing
In automotive settings, T-100-31 Bearing is often used in drivetrain components, while in aerospace, it supports auxiliary systems like fuel pumps. The bearing’s versatility makes it useful across different industries.

For 3D printers, T-100-31 Bearing ensures smooth linear motion in high-precision printing tasks. Its inch measurements align well with many North American machine designs.
