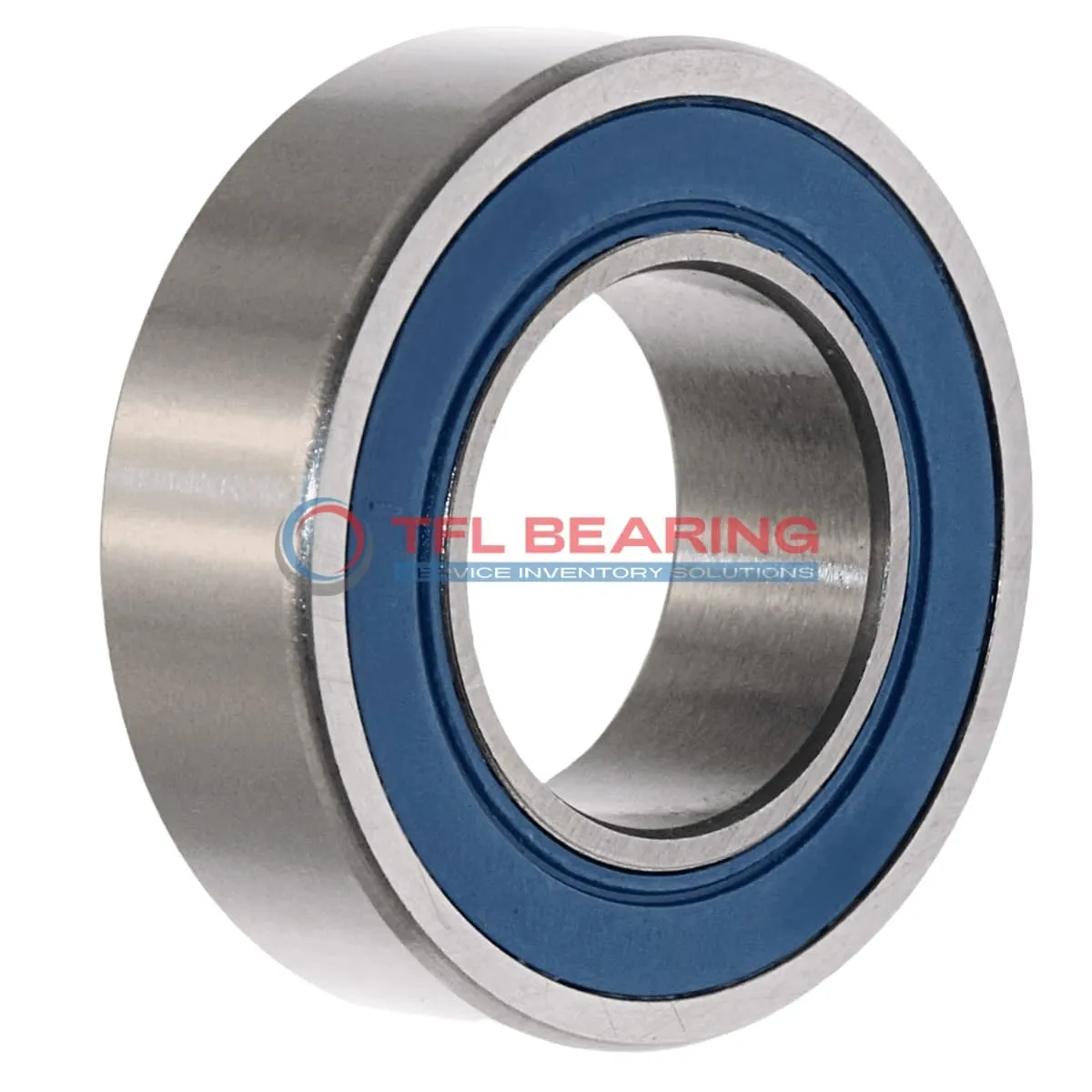

Single Row Deep Groove Ball Bearings 6310-2RS1/C3

Single Row Deep Groove Ball Bearings 6310-2RS1/C3

The 6310-2RS1/C3 is a single-row deep groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Its robust design suits applications like electric motors or pumps where radial loads are common.

Weighing 1050g, it balances durability with manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6310-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13938 lbf
  • Static Radial Load 861 lbf
  • Max Speed 6000 rpm
  • Weight 1050 g
  • price（$） 15.3
Single Row Deep Groove Ball Bearings 6310-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6310-2RS1/C3 Bearing Reduce Friction?

6310-2RS1/C3 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its sealed construction keeps contaminants out, ensuring consistent performance over time.

The chrome steel rings and balls in 6310-2RS1/C3 Bearing minimise friction, enhancing efficiency.
With a dynamic radial load capacity of 13,938 lbf, it handles demanding applications with ease.

6310-2RS1/C3 Bearing operates within a temperature range of -30°C to 120°C, suitable for various environments.
Its ABEC 1 tolerance ensures reliable precision in everyday industrial use.

The sealed design of 6310-2RS1/C3 Bearing reduces maintenance needs, saving time and costs.
Weighing just 1050g, it offers a practical balance of strength and portability.

Application

Industrial Uses of 6310-2RS1/C3 Bearing
The 6310-2RS1/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 clearance also accommodates thermal expansion in high-speed applications.

What Makes 6310-2RS1/C3 Bearing a Preferred Choice?
In automotive applications, 6310-2RS1/C3 Bearing is often found in wheel hubs and transmissions, thanks to its radial load capacity and durability. The chrome steel construction ensures long service life even under demanding conditions.

Perfect Fit for Automation: 6310-2RS1/C3 Bearing
For automated systems, 6310-2RS1/C3 Bearing provides smooth operation in robotic arms and conveyor belts. Its sealed design reduces maintenance needs, making it ideal for continuous operation environments.

Medical vs Industrial: Where 6310-2RS1/C3 Bearing Excels
While 6310-2RS1/C3 Bearing is reliable in industrial gearboxes, it also meets the precision needs of medical devices like centrifuges. The temperature range ensures stable performance in various settings.
