Single Row Deep Groove Ball Bearings RLS 7-2RS1

Single Row Deep Groove Ball Bearings RLS 7-2RS1

The RLS 7-2RS1 is a sealed single row deep groove ball bearing with a 0.875″ bore and 2″ outer diameter, made from durable chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 9000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage ensures reliable performance even under continuous use.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for various environments. It’s interchangeable with SKF bearings for easy replacements.

Ideal for applications like electric motors or small machinery where radial loads and moderate speeds are common. Weighing just 0.13kg, it’s lightweight yet robust for its size. Compliant with REACH and RoHS standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 7-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 0.875"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 2"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.56252"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1720 lbf
  • Max Speed 9000 rpm
  • Weight 0.13 kg
  • price（$） 12.726

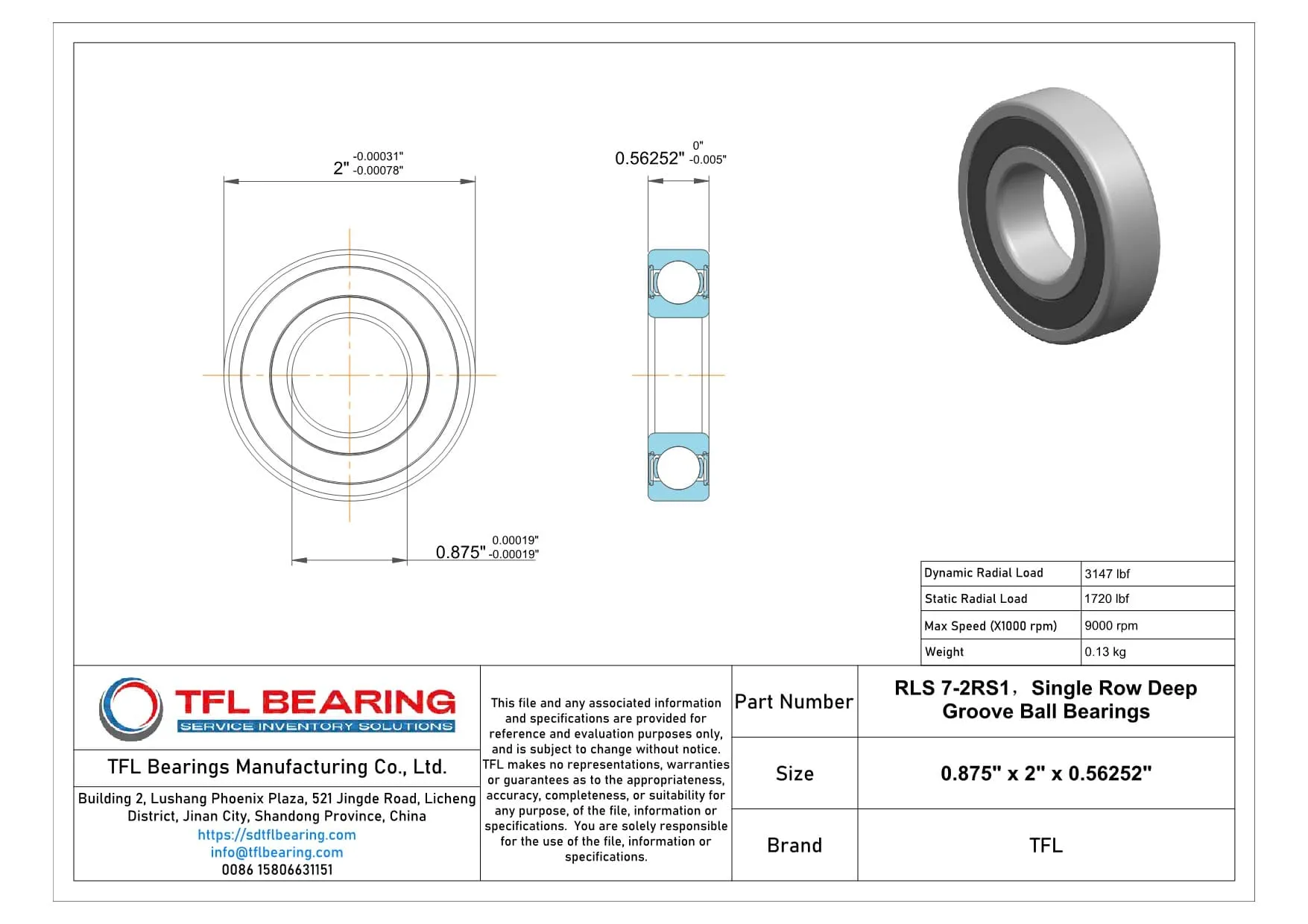

Single Row Deep Groove Ball Bearings RLS 7-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose RLS 7-2RS1 Bearing for Precision Tasks?

RLS 7-2RS1 Bearing features a single-row deep groove design, ensuring smooth radial load handling.
Its sealed construction keeps contaminants out, making it suitable for various environments.

The chrome steel rings and balls enhance durability, while the stainless steel cage maintains alignment.
With a dynamic radial load capacity of 3147 lbf, it performs reliably under stress.

RLS 7-2RS1 Bearing operates efficiently at speeds up to 9,000 rpm, balancing speed and longevity.
Its grease lubrication reduces maintenance needs, ensuring consistent performance.

The temperature range of -30° to 120°C makes it versatile for different operating conditions.
Its P6 tolerance class ensures high precision, ideal for demanding applications.

Application

Industrial Uses of RLS 7-2RS1 Bearing
RLS 7-2RS1 Bearing is commonly used in conveyor systems, where its sealed design keeps out dust and debris. The inch sizing makes it a good fit for machinery in regions where imperial measurements are standard.

What Makes RLS 7-2RS1 Bearing a Preferred Choice?
In automotive applications like electric motors, RLS 7-2RS1 Bearing offers reliable radial load support. Its grease lubrication ensures smooth operation even at higher speeds.

Perfect Fit for Automation: RLS 7-2RS1 Bearing
RLS 7-2RS1 Bearing works well in robotic arms, thanks to its precise P6 tolerance. The stainless steel cage adds durability for continuous use in automated systems.

Medical vs Industrial: Where RLS 7-2RS1 Bearing Excels
RLS 7-2RS1 Bearing is suitable for medical devices like lab equipment, where cleanliness is key. In industrial settings, it handles radial loads in pumps and compressors with ease.

Consumer Electronics and More: RLS 7-2RS1 Bearing
For household appliances like fans, RLS 7-2RS1 Bearing provides quiet and efficient performance. Its temperature range also makes it versatile for various environments.
