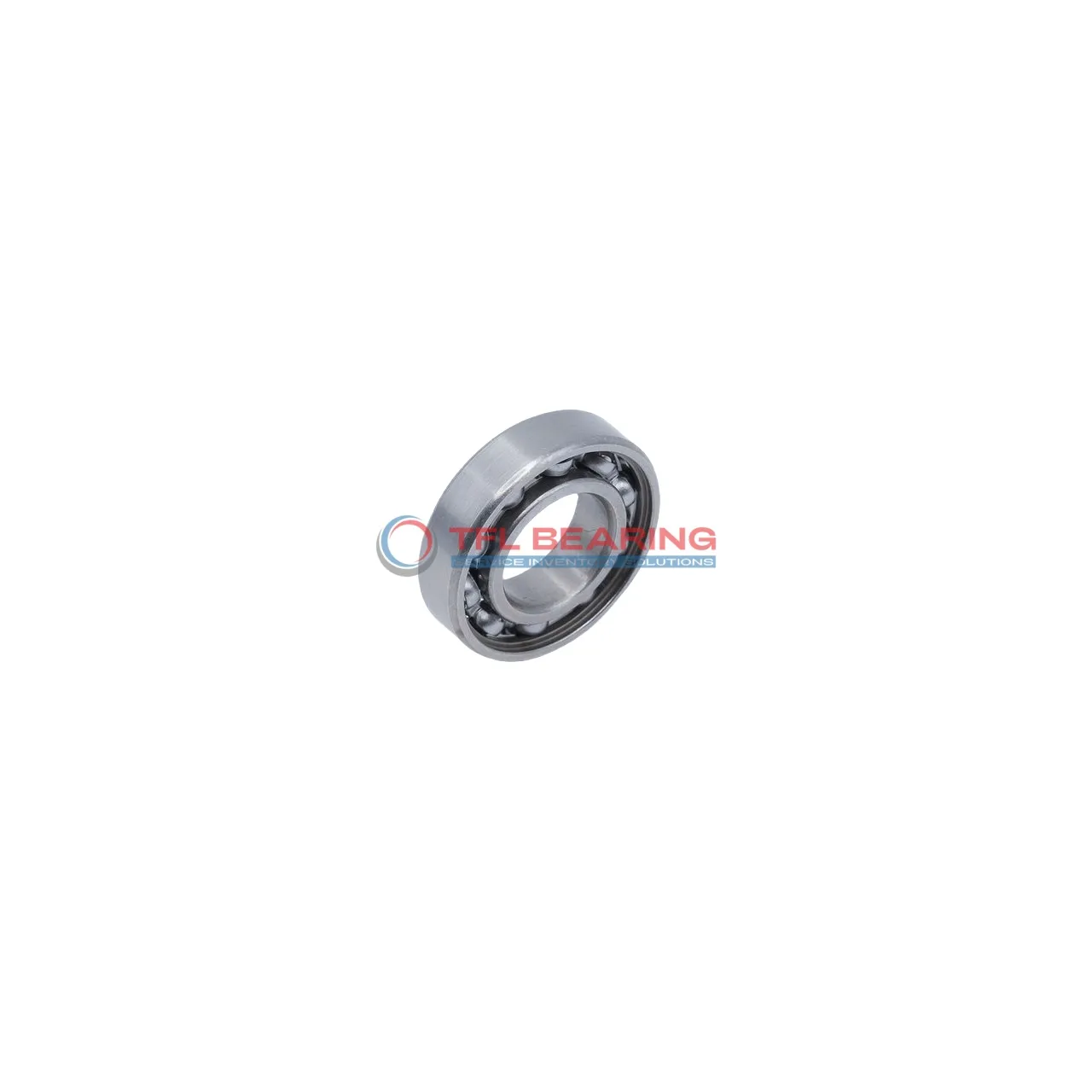

Single Row Deep Groove Ball Bearings 6000/W64HVU121

Single Row Deep Groove Ball Bearings 6000/W64HVU121

The 6000/W64HVU121 is a compact single row deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter, with a width of just 8mm. Made from durable chrome steel, it handles radial loads up to 1023 lbf and spins smoothly at speeds up to 31,000 RPM.

Its open design and solid oil lubrication ensure low maintenance while providing reliable performance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small machinery, electric motors, or appliances where space is limited but performance is key.

Weighing only 19g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000/W64HVU121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 6000/W64HVU121 dimension drawing
Download DWG Download PDF

Features

How Does 6000/W64HVU121 Bearing Reduce Friction?

6000/W64HVU121 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while reducing friction during operation.

The solid oil lubrication in 6000/W64HVU121 Bearing provides consistent performance, even at high speeds.
With a maximum speed of 31,000 rpm, it maintains efficiency without compromising reliability.

6000/W64HVU121 Bearing operates in temperatures from -30°C to 120°C, suitable for various environments.
Its open design simplifies maintenance, making it a practical choice for many applications.

Application

Industrial Uses of 6000/W64HVU121 Bearing
This bearing is commonly used in small electric motors and pumps, where its compact size and radial load capacity are ideal. The open design with solid oil lubrication ensures smooth operation in dusty environments.

Where Is 6000/W64HVU121 Bearing Used?
You’ll often find it in household appliances like washing machines and fans, thanks to its quiet performance and durability. The chrome steel construction handles daily wear without issues.

Built for Heavy-Duty Use: 6000/W64HVU121 Bearing
It’s a reliable choice for conveyor systems in light industrial settings, where consistent radial load support is needed. The ABEC 1 tolerance balances cost and performance for general machinery.

Automotive vs Industrial: Applications of 6000/W64HVU121 Bearing
In cars, it fits well in auxiliary components like alternators, while factories use it for small gearboxes. The metric sizing makes it versatile across European and Asian equipment.

Perfect Fit for Automation: 6000/W64HVU121 Bearing
This bearing works smoothly in robotic arms and small CNC machines, where precision and low maintenance matter. The solid oil lubrication reduces friction even at higher speeds.
