Constant Section (CS) Bearings SD070CP0

Constant Section (CS) Bearings SD070CP0

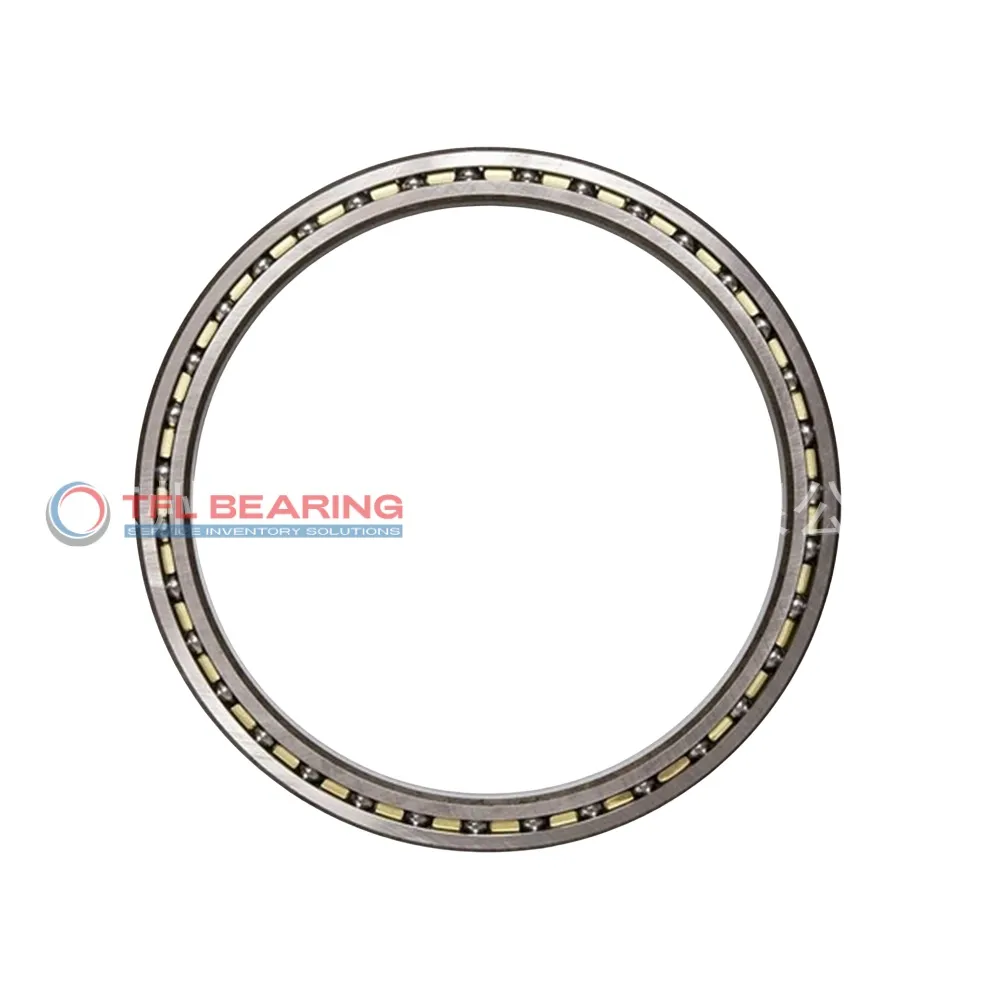

The SD070CP0 is a slim stainless steel bearing with a 7″ bore and 8″ outer diameter, featuring a compact width of just 0.5″. Made from durable stainless steel, it handles radial loads up to 2345 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure easy maintenance and reliable performance. The bearing is interchangeable with KAYDON models, making it a practical choice for replacements.

Ideal for applications requiring thin-section bearings, such as robotics or medical equipment. Weighing 1.31 lbs, it’s lightweight yet sturdy, and complies with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD070CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 7"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 8"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 7.370"
  • Internal Diameter On Outer Ring (Small Side Face) 7.630"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2345 lbf
  • Static Radial Load 5130 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.31 lbs
  • price（$） 297
Constant Section (CS) Bearings SD070CP0 dimension drawing
Download DWG Download PDF

Features

How Does SD070CP0 Bearing Ensure Smooth Radial Load Handling?

SD070CP0 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its ABEC-1 tolerance ensures precise operation, making it suitable for applications requiring accuracy.

The brass cage maintains ball alignment, reducing friction and enhancing performance under radial loads.
With a dynamic radial load capacity of 2345 lbf, it delivers reliable performance in various conditions.

SD070CP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring long-lasting efficiency.

Application

Industrial Uses of SD070CP0 Bearing
SD070CP0 Bearing is commonly used in industrial machinery, especially where space is limited but radial load support is essential. Its thin-section design makes it ideal for applications like robotic arms and conveyor systems.

Where Is SD070CP0 Bearing Used?
In automation systems, SD070CP0 Bearing provides smooth operation for components like rotary tables and indexing devices. The stainless steel construction ensures durability in demanding environments.

Built for Heavy-Duty Use: SD070CP0 Bearing
SD070CP0 Bearing excels in applications requiring high precision, such as medical imaging equipment. The brass cage enhances stability, making it reliable for continuous use.

Automotive vs Aerospace: Applications of SD070CP0 Bearing
In automotive systems, SD070CP0 Bearing supports lightweight components like steering mechanisms. Its inch sizing makes it compatible with various North American and European designs.

Perfect Fit for Automation: SD070CP0 Bearing
SD070CP0 Bearing is a great choice for 3D printers and CNC machines, where its thin profile and radial load capacity are beneficial. The open seal design allows for easy lubrication and maintenance.
