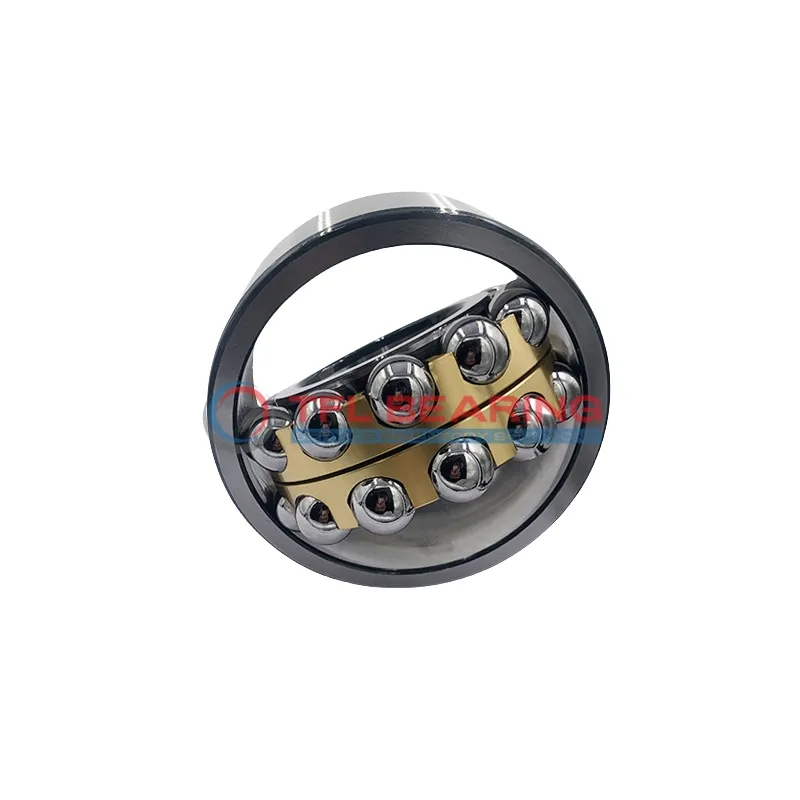

Self Aligning Ball Bearings 2308-M-P6

The 2308-M-P6 is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7605 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction help reduce friction and keep dirt out, extending its lifespan. The brass cage adds durability while maintaining smooth operation.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, making replacements hassle-free.

Ideal for machinery with misalignment issues, like conveyor systems or agricultural equipment. Weighing 0.96kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 2308-M-P6
Brand TFL & OEM
Interchangeable SKF
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 33 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 55.4 mm
Internal Diameter On Outer Ring 81.8 mm
Chamfer Dimension 1.5 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Cylindrical
For Load Direction Radial
Construction Double Row
Seal Type Sealed
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 7605 lbf
Static Radial Load 2520 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance CN
RoHS Compliant
REACH Compliant
Max Speed 4800 rpm
Weight 0.96 kg
Price（$） 122.2

Self Aligning Ball Bearings 2308-M-P6 dimension drawing

Download DWG Download PDF

Features

How Does 2308-M-P6 Bearing Reduce Friction?

2308-M-P6 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its brass cage helps maintain ball alignment, reducing friction and wear during operation.
The sealed construction keeps contaminants out, preserving lubrication for consistent performance.
With a dynamic radial load capacity of 7605 lbf, it handles demanding applications efficiently.

Engineered for Precision: 2308-M-P6 Bearing

2308-M-P6 Bearing is crafted with high-precision chrome steel components, offering reliable radial load support.
The double-row ball arrangement enhances stability, making it suitable for high-speed applications.
Its sealed design ensures long-lasting lubrication, reducing maintenance needs.
Operating within a temperature range of -30° to 110°C, it performs well in various environments.

Performance Features of 2308-M-P6 Bearing

2308-M-P6 Bearing’s brass cage minimises friction, contributing to quieter and smoother operation.
The sealed construction protects against dust and moisture, extending its service life.
With a maximum speed of 4,800 rpm, it balances speed and durability effectively.
Its dynamic radial load capacity of 7605 lbf ensures reliable performance under pressure.

Application

Common Applications of 2308-M-P6 Bearing
2308-M-P6 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s service life in dusty environments.

In automotive applications, 2308-M-P6 Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. Its brass cage ensures smooth operation even under varying temperatures and loads.

For automation equipment, 2308-M-P6 Bearing is a solid choice for robotic arms and assembly lines, thanks to its double-row construction. The chrome steel balls and rings offer consistent performance in high-speed scenarios.

Medical devices like diagnostic machines benefit from 2308-M-P6 Bearing’s precision and low maintenance requirements. The lubricated design ensures quiet operation, which is essential in sensitive environments.

In household appliances such as washing machines, 2308-M-P6 Bearing handles radial loads effectively while reducing noise. Its durability makes it a cost-effective solution for long-term use.
