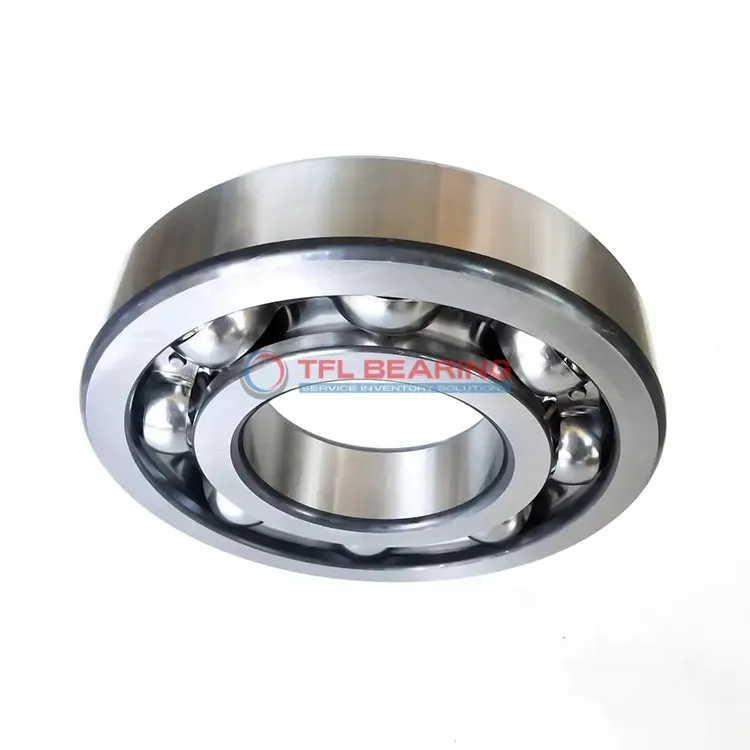

Single Row Deep Groove Ball Bearings 408MFF

Single Row Deep Groove Ball Bearings 408MFF

The 408MFF is a single-row deep groove ball bearing with a 40mm bore and 110mm outer diameter, crafted from sturdy chrome steel for reliable performance. Its open design allows for easy lubrication and maintenance, making it a practical choice for various applications.

This bearing fits well in radial load scenarios and operates smoothly within a temperature range of -30°C to 120°C. The chrome steel cage enhances durability, ensuring long service life under typical working conditions.

Interchangeable with SKF bearings, it offers a cost-effective alternative for replacements. Ideal for use in machinery, pumps, or electric motors where radial loads are common.

Weighing 1.27kg, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets environmental and safety requirements for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 408MFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Weight 1.27 kg
  • price（$） 47.106
Single Row Deep Groove Ball Bearings 408MFF dimension drawing
Download DWG Download PDF

Features

Core Advantages of 408MFF Bearing

408MFF Bearing features a single-row deep groove design, optimised for radial load applications.

Its chrome steel construction ensures durability and resistance to wear in various conditions.

With an ABEC 1 tolerance class, it offers reliable precision for general industrial use.

The open seal type allows for easy maintenance and inspection.

Application

Industrial Uses of 408MFF Bearing
408MFF Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 408MFF Bearing fits well in components such as alternators and wheel hubs, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle models.

For automation equipment, 408MFF Bearing provides reliable performance in robotic arms and conveyor systems. The ABEC 1 tolerance class offers a good balance of precision and cost-effectiveness for these applications.

Where Is 408MFF Bearing Used?
You’ll often find 408MFF Bearing in household appliances like washing machines and fans, where its quiet operation is a plus. The chrome steel balls and rings ensure long-lasting performance even with daily use.

In agricultural machinery, 408MFF Bearing handles the demands of equipment like harvesters and tractors. Its robust design and wide temperature range make it a dependable choice for tough environments.

Built for Versatility: 408MFF Bearing
408MFF Bearing works well in medical devices such as centrifuges, where precision and reliability are key. The open seal type allows for easy maintenance, ensuring consistent performance over time.

For general machinery, 408MFF Bearing is a go-to option due to its balanced load handling and durability. Its ISO P0 tolerance makes it a practical choice for many industrial applications.
