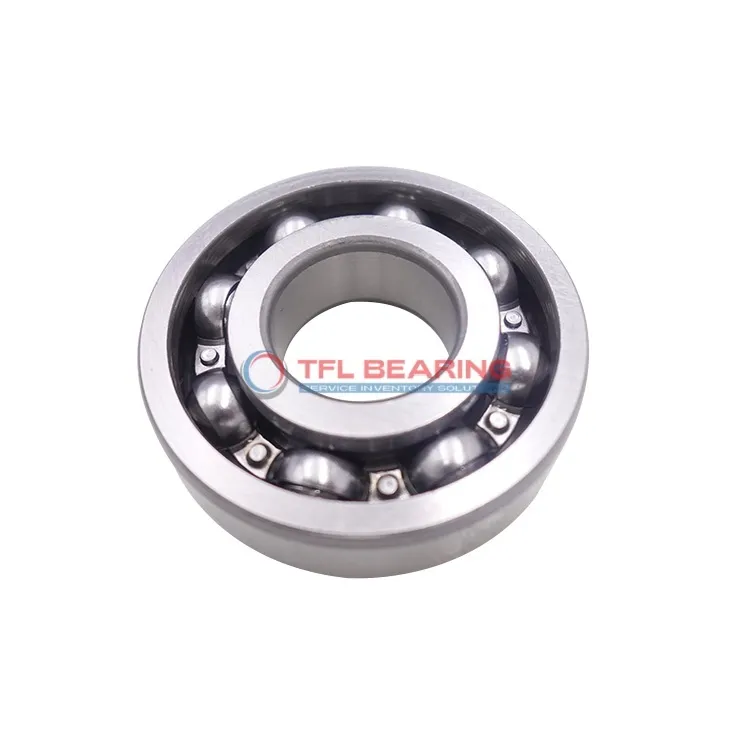

Single Row Deep Groove Ball Bearings 320SW1

Single Row Deep Groove Ball Bearings 320SW1

The 320SW1 is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery and equipment where radial loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various applications. The compact design (100mm×215mm×82.55mm) fits neatly into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320SW1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 82.55 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 368.991
Single Row Deep Groove Ball Bearings 320SW1 dimension drawing
Download DWG Download PDF

Features

How Is 320SW1 Bearing Engineered for Reliability?

320SW1 Bearing features a single-row deep groove design, ideal for handling radial loads up to 16800 lbf.
Its chrome steel construction ensures durability and resistance to wear in various operating conditions.

The open seal type allows for easy maintenance and inspection, while the ABEC 1 tolerance ensures consistent performance.
With a temperature range of -30°C to 120°C, 320SW1 Bearing adapts well to different environments.

The precise bore and outer diameter tolerances contribute to smooth operation and long service life.
This bearing is interchangeable with SKF models, offering flexibility in replacement and installation.

Application

Industrial Uses of 320SW1 Bearing
320SW1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 320SW1 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding driving conditions.

For automation equipment, 320SW1 Bearing supports smooth operation in robotic arms and conveyor belts. The ABEC 1 tolerance class offers a good balance between precision and cost-effectiveness for most industrial needs.

Where Is 320SW1 Bearing Used?
You’ll often find 320SW1 Bearing in household appliances like washing machines and air conditioners, where its radial load capacity keeps things running quietly. The wide temperature range also makes it adaptable to different environments.

In agricultural machinery, 320SW1 Bearing handles the rough conditions of tractors and harvesters. Its robust design and chrome steel components resist wear, even with frequent exposure to dust and moisture.
