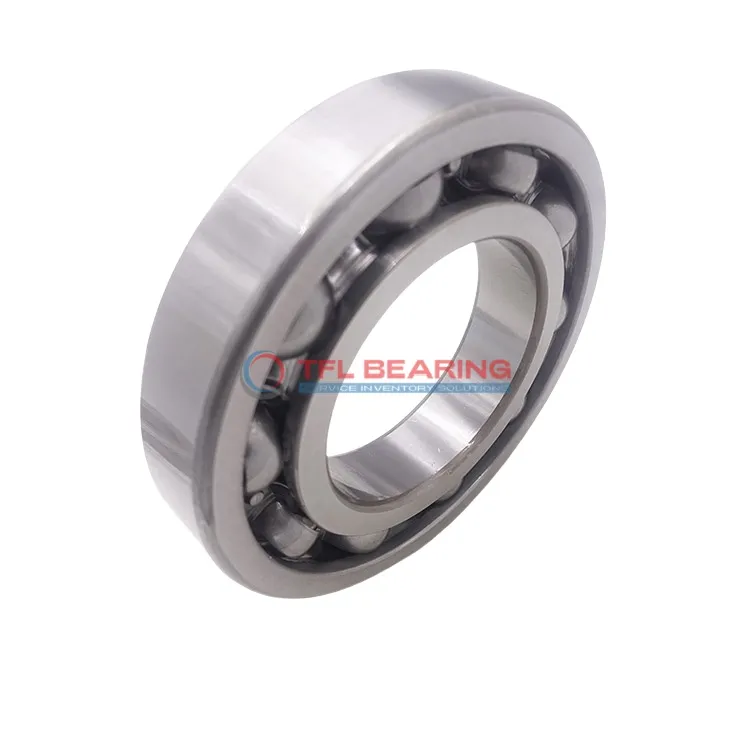

Single Row Deep Groove Ball Bearings 6232 M

Single Row Deep Groove Ball Bearings 6232 M

The 6232 M is a single-row deep groove ball bearing with a 160mm bore and 290mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 41814 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it adapts well to various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for industrial machinery or heavy equipment where radial load support is essential.

Weighing 14.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6232 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 48 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 41814 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 4300 rpm
  • Weight 14.1 kg
  • price（$） 308.367
Single Row Deep Groove Ball Bearings 6232 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6232 M Bearing

6232 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 41814 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and wear for extended service life.
With a maximum speed of 4,300 rpm, it balances performance and durability in various applications.

6232 M Bearing operates reliably in temperatures ranging from -30° to 120 °C.
Its open design allows for easy maintenance and lubrication, ensuring long-term efficiency.

Application

Industrial Uses of 6232 M Bearing
6232 M Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 6232 M Bearing Used?
You’ll find 6232 M Bearing in automotive applications such as wheel hubs and transmissions, thanks to its high load capacity and smooth operation. Its metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 6232 M Bearing
In automation systems, 6232 M Bearing supports robotic arms and conveyor belts, offering reliable performance under continuous use. The open seal design allows for easy lubrication and maintenance.

Medical vs Industrial: Where 6232 M Bearing Excels
While 6232 M Bearing isn’t typically used in medical devices, it shines in industrial settings like power generators and gearboxes. Its stainless steel cage adds extra resistance to wear and corrosion.

Perfect Fit for Automation: 6232 M Bearing
6232 M Bearing is ideal for automated production lines, where its high-speed capability and radial load handling keep operations running smoothly. The P6 tolerance class ensures precision in every rotation.
