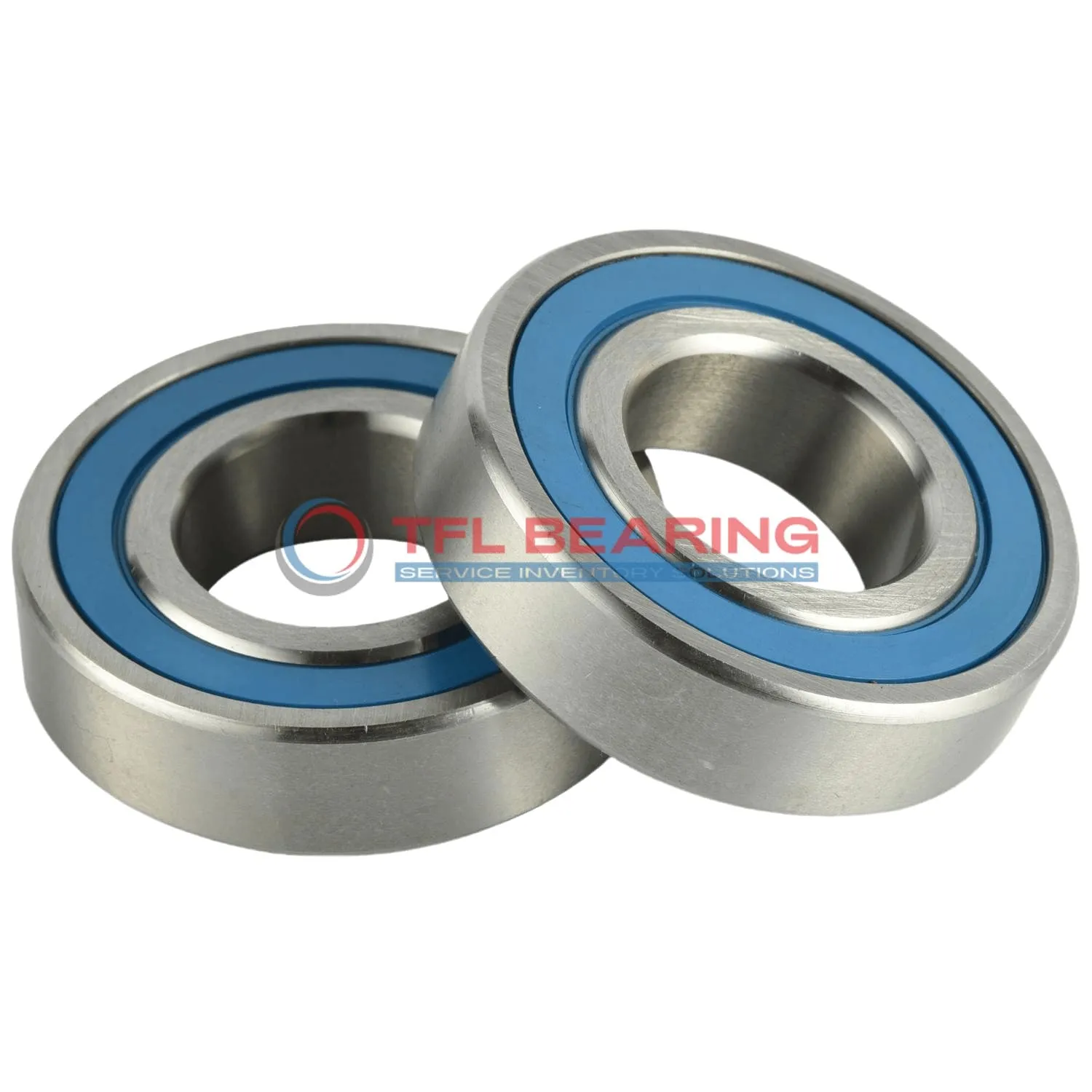

Single Row Deep Groove Ball Bearings 6306-2RS1/WT

Single Row Deep Groove Ball Bearings 6306-2RS1/WT

The 6306-2RS1/WT is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s ideal for applications like electric motors or pumps where radial loads and sealed protection are needed.

Weighing 346g, it’s a sturdy yet manageable choice for various industrial uses. Compliant with RoHS and REACH standards for safe and environmentally friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS1/WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
Single Row Deep Groove Ball Bearings 6306-2RS1/WT dimension drawing
Download DWG Download PDF

Features

Why Choose 6306-2RS1/WT Bearing for Precision Tasks?

6306-2RS1/WT Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 6002 lbf, it handles demanding conditions reliably.
The ABEC 1 tolerance class guarantees precision, making it suitable for high-accuracy tasks.

Operating within -30°C to 120°C, 6306-2RS1/WT Bearing performs well in varied environments.
Its sealed design reduces maintenance needs, offering long-term reliability.

Application

Industrial Uses of 6306-2RS1/WT Bearing
6306-2RS1/WT Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

What Makes 6306-2RS1/WT Bearing a Preferred Choice?
In automotive applications, 6306-2RS1/WT Bearing works well in alternators and wheel hubs, offering reliable performance under radial loads. Its metric sizing makes it a versatile fit for various vehicle models.

Perfect Fit for Automation: 6306-2RS1/WT Bearing
For automation systems, 6306-2RS1/WT Bearing is ideal for robotic arms and conveyor belts, providing smooth operation. The sealed design also reduces maintenance needs in dusty or wet conditions.

Medical vs Industrial: Where 6306-2RS1/WT Bearing Excels
In medical devices like centrifuges, 6306-2RS1/WT Bearing offers quiet and precise rotation. Its industrial strength makes it equally suitable for heavy machinery, balancing performance across sectors.

Essential Roles of 6306-2RS1/WT Bearing
6306-2RS1/WT Bearing is a reliable choice for household appliances like washing machines, where its sealed design prevents grease leakage. The durable materials ensure long service life even with daily use.
