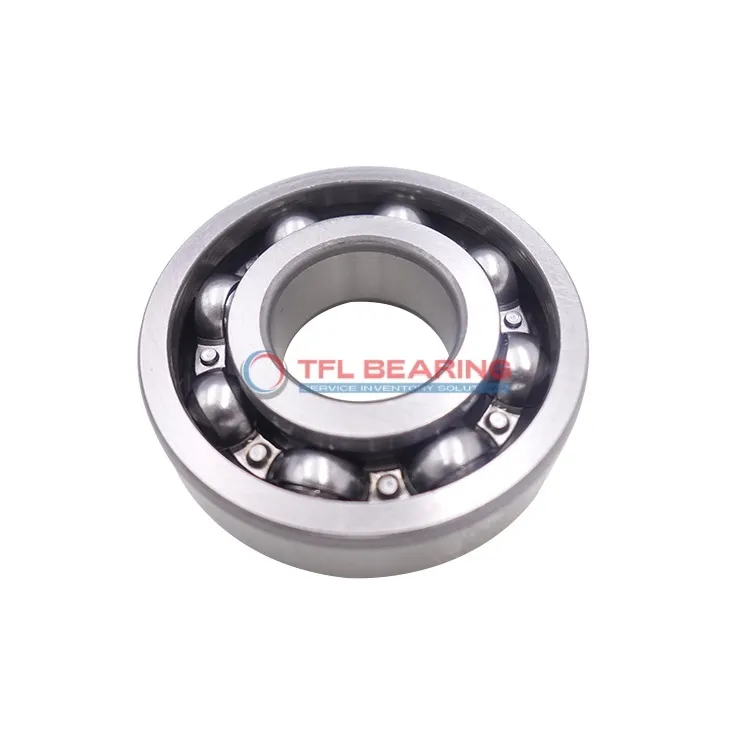

Single Row Deep Groove Ball Bearings 320SFF

Single Row Deep Groove Ball Bearings 320SFF

The 320SFF is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance under stress. The bearing meets ABEC 1 and ISO P0 tolerance standards for consistent quality.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery or automotive applications where radial load support is needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various engineering projects. The compact width of 47mm makes it easy to fit into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320SFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 125.352
Single Row Deep Groove Ball Bearings 320SFF dimension drawing
Download DWG Download PDF

Features

Performance Features of 320SFF Bearing

320SFF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, making it suitable for various industrial applications.
The open design allows for easy lubrication, ensuring smooth operation over time.
With a temperature range of -30°C to 120°C, it performs reliably in diverse environments.

How Is 320SFF Bearing Engineered for Reliability?

320SFF Bearing features a single-row deep groove design, providing stable radial load support.
The chrome steel construction enhances durability, reducing wear in demanding conditions.
Its ABEC 1 tolerance ensures consistent performance, suitable for general precision needs.
The open seal type simplifies maintenance, making it a practical choice for many applications.

Designed for Durability: 320SFF Bearing

320SFF Bearing’s chrome steel cage keeps the balls aligned, minimising friction and wear.
With a bore diameter of 100 mm, it fits securely in various machinery setups.
The static radial load capacity matches the dynamic rating at 16800 lbf, ensuring reliability.
Its wide temperature range makes it adaptable to different working conditions.

Application

Industrial Uses of 320SFF Bearing
320SFF Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 320SFF Bearing Used?
You’ll often find 320SFF Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Perfect Fit for Automation: 320SFF Bearing
In automated production lines, 320SFF Bearing supports conveyor systems and robotic arms with reliable performance. The ABEC 1 tolerance class ensures smooth operation without unnecessary friction.

Medical vs Industrial: Where 320SFF Bearing Excels
While 320SFF Bearing performs well in industrial gearboxes, it’s also suitable for medical devices like centrifuges due to its consistent radial load capacity. The chrome steel balls and cage provide durability in both environments.

Key Fields for 320SFF Bearing
320SFF Bearing is a go-to choice for agricultural equipment, such as harvesters and tractors, where its wide temperature range handles outdoor conditions. The static and dynamic load ratings make it versatile for various farming tasks.
