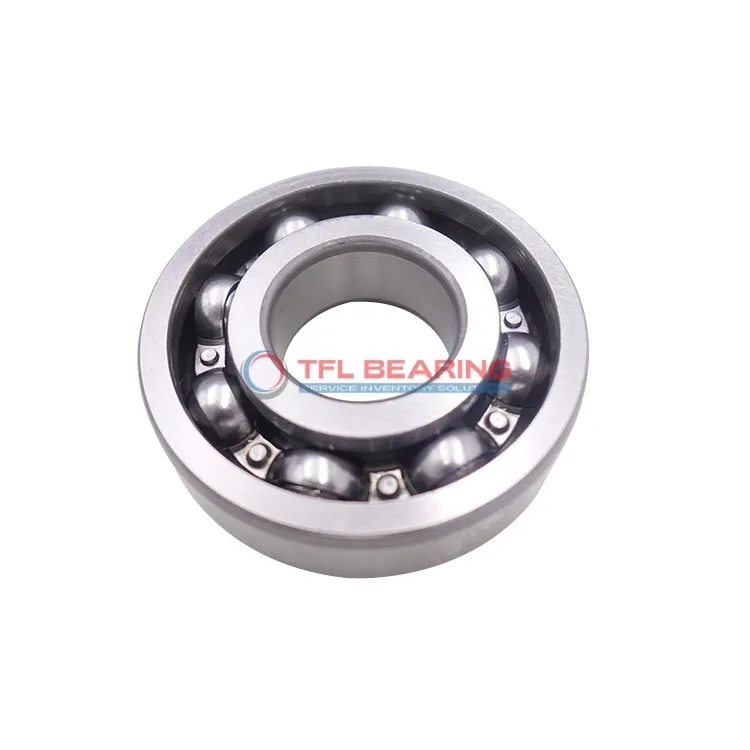

Single Row Deep Groove Ball Bearings 320MFF

Single Row Deep Groove Ball Bearings 320MFF

The 320MFF is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for lasting durability. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance under stress. The bearing meets ABEC 1 and ISO P0 tolerance standards for consistent quality.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for radial load applications like electric motors or industrial pumps.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial uses. Its compact width of 47mm makes it easy to fit into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320MFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 215.064
Single Row Deep Groove Ball Bearings 320MFF dimension drawing
Download DWG Download PDF

Features

Performance Features of 320MFF Bearing

320MFF Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 16,800 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The ABEC 1 tolerance class and ISO P0 standard make 320MFF Bearing suitable for general precision applications.
With a temperature range of -30°C to 120°C, it performs reliably in various environments.

320MFF Bearing’s open design simplifies installation and maintenance.
Its chrome steel cage enhances durability, reducing wear over time.

Application

Industrial Uses of 320MFF Bearing
320MFF Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 320MFF Bearing a Preferred Choice?
In automotive applications, 320MFF Bearing fits well in wheel hubs and transmission systems due to its robust chrome steel construction. Its ABEC 1 tolerance ensures reliable performance without unnecessary precision costs.

Built for Heavy-Duty Use: 320MFF Bearing
For conveyor systems in factories, 320MFF Bearing offers smooth operation under constant radial loads. The metric dimensions make it a versatile choice for European and Asian equipment standards.

Automotive vs Industrial: Applications of 320MFF Bearing
In vehicles, 320MFF Bearing supports axles and drivetrains, while in industrial settings, it excels in electric motors and compressors. The wide temperature range suits both indoor and outdoor environments.

Where Is 320MFF Bearing Used?
You’ll find 320MFF Bearing in agricultural machinery like harvesters, where its durability handles dusty conditions. The chrome steel cage resists wear, making it a practical long-term solution.
