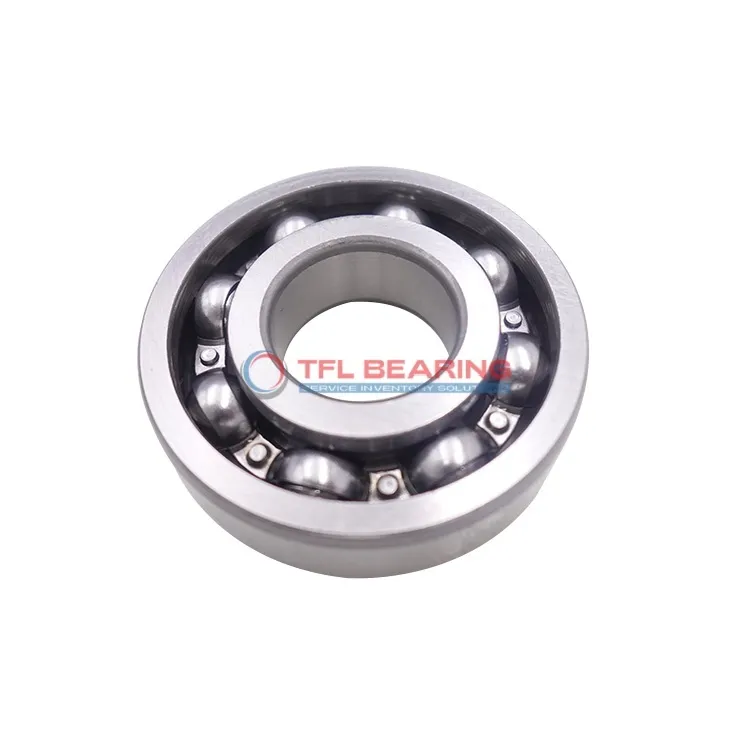

Single Row Deep Groove Ball Bearings 320MF

Single Row Deep Groove Ball Bearings 320MF

The 320MF is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication and maintenance, while the chrome steel cage ensures reliable performance under stress. The bearing meets ABEC 1 and ISO P0 tolerance standards for consistent quality.

This model is interchangeable with SKF bearings, making it a practical choice for replacements or upgrades. It’s well-suited for industrial machinery, pumps, or electric motors where radial load support is key.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various applications. The compact width of 47mm makes it easy to fit into tight spaces without sacrificing strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320MF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 202.887
Single Row Deep Groove Ball Bearings 320MF dimension drawing
Download DWG Download PDF

Features

Performance Features of 320MF Bearing

320MF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, making it suitable for demanding applications.
The open design allows for easy lubrication, ensuring smooth operation over time.
With a temperature range of -30° to 120°C, it performs reliably in various conditions.

Application

Industrial Uses of 320MF Bearing
320MF Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently.
The open seal type allows for easy lubrication, making it suitable for environments where regular maintenance is needed.

Where Is 320MF Bearing Used?
You’ll often find 320MF Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction.
Its metric sizing ensures compatibility with a variety of vehicle models, both domestic and international.

Perfect Fit for Automation: 320MF Bearing
In robotic arms and automated production lines, 320MF Bearing provides smooth rotation and reliable performance.
The ABEC 1 tolerance class ensures consistent operation, even in precision-driven tasks.

Medical vs Industrial: Where 320MF Bearing Excels
While 320MF Bearing works well in industrial gearboxes, it’s also found in medical devices like centrifuges, where stability is key.
The chrome steel rings and balls offer long-lasting performance, reducing downtime in critical applications.

Essential Roles of 320MF Bearing
For household appliances like washing machines, 320MF Bearing ensures quiet and efficient operation.
Its wide temperature range (-30°C to 120°C) makes it versatile for both indoor and outdoor use.
