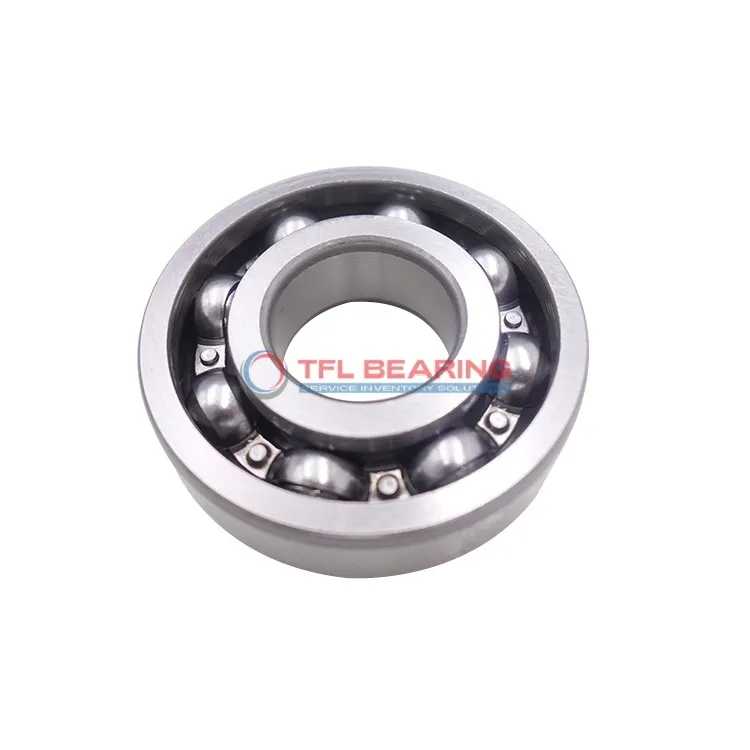

Single Row Deep Groove Ball Bearings 320M

Single Row Deep Groove Ball Bearings 320M

The 320M is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability under heavy use. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable precision.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery, pumps, or electric motors where radial load support is key.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various applications. The compact 47mm width makes it easy to fit into tight spaces without sacrificing strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 186.624
Single Row Deep Groove Ball Bearings 320M dimension drawing
Download DWG Download PDF

Features

Performance Features of 320M Bearing

320M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.
With a temperature range of -30°C to 120°C, it performs well in diverse conditions.

How Is 320M Bearing Engineered for Reliability?

320M Bearing features a single row deep groove design, optimised for radial load handling.
The ABEC 1 tolerance ensures consistent performance, suitable for general industrial use.
Its open seal type allows for easy lubrication and maintenance when required.
Constructed entirely from chrome steel, it provides durability and corrosion resistance.

Designed for Durability: 320M Bearing

320M Bearing’s robust construction makes it ideal for heavy-duty radial load applications.
The precise bore and outer diameter tolerances ensure a secure fit in assemblies.
Its chrome steel components resist wear, maintaining performance over extended periods.
Operating within a wide temperature range, it adapts to various working environments.

Application

Common Applications of 320M Bearing
320M Bearing is widely used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 320M Bearing can be found in wheel hubs and transmissions, providing reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding conditions.

For automation systems, 320M Bearing supports robotic arms and conveyor belts, offering smooth rotation with minimal maintenance. The ABEC 1 tolerance ensures consistent performance in precision-driven tasks.

Household appliances like washing machines often use 320M Bearing for its quiet operation and long service life. The metric sizing makes it compatible with a variety of European-designed equipment.
