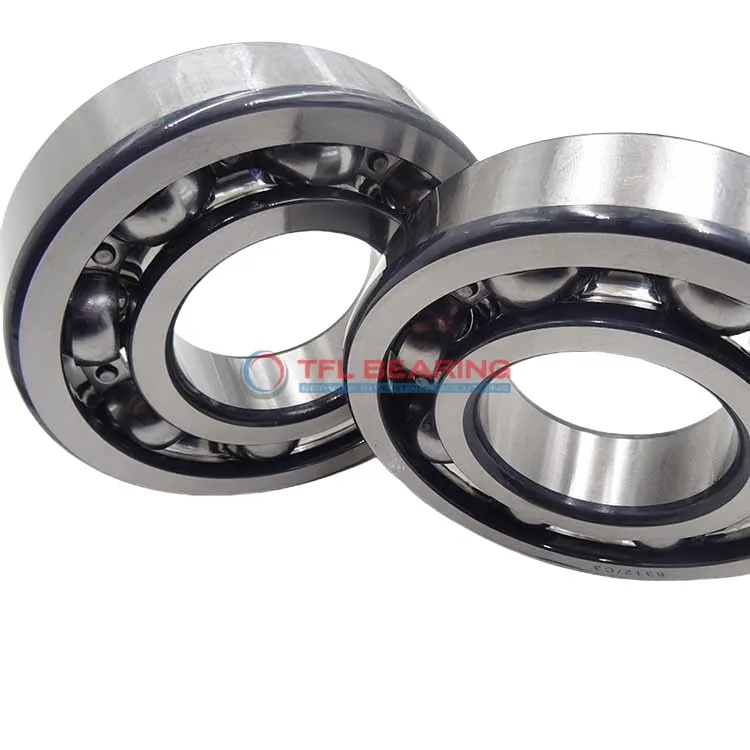

Single Row Deep Groove Ball Bearings 16056 MA

Single Row Deep Groove Ball Bearings 16056 MA

The 16056 MA is a single-row deep groove ball bearing with a 280mm bore and 420mm outer diameter, crafted from sturdy chrome steel for lasting performance. It manages radial loads up to 54404 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. It suits heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 23.6kg, it’s built for robust use while complying with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16056 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 44 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 54404 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 2600 rpm
  • Weight 23600 g
  • price（$） 955.566
Single Row Deep Groove Ball Bearings 16056 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16056 MA Bearing

16056 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 54,404 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 2,600 rpm, it delivers reliable performance in various conditions.

16056 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 16056 MA Bearing
16056 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, ensuring long service life in demanding environments.

What Makes 16056 MA Bearing a Preferred Choice?
With its chrome steel construction, 16056 MA Bearing offers reliable performance in applications like conveyor systems and gearboxes. The P6 tolerance class ensures precise operation, making it suitable for high-accuracy industrial equipment.

Built for Heavy-Duty Use: 16056 MA Bearing
In automotive applications, 16056 MA Bearing supports components like wheel hubs and transmissions, where durability is key. Its metric sizing and high load capacity make it a practical choice for both European and Asian vehicle models.

Automotive vs Aerospace: Applications of 16056 MA Bearing
While 16056 MA Bearing excels in automotive systems, it also finds use in aerospace ground support equipment. The bearing’s ability to handle high radial loads and moderate speeds makes it versatile across different industries.

Perfect Fit for Automation: 16056 MA Bearing
In automated production lines, 16056 MA Bearing ensures smooth operation of robotic arms and assembly systems. Its stainless steel cage enhances resistance to wear, making it a reliable choice for continuous operation.
