Double Direction Thrust Ball Bearings 52230 M

Double Direction Thrust Ball Bearings 52230 M

The 52230 M is a double-direction thrust ball bearing with a 130mm bore and 215mm outer diameter, built from sturdy chrome steel. It manages heavy thrust loads up to 55575 lbf and operates at speeds up to 1300 RPM.

Its brass cage adds durability, while the open design simplifies maintenance. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems.

Weighing 11.5kg, it’s robust for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52230 M
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 89 mm
  • Width Tolerance +0.2mm to -0.6mm
  • Chamfer Dimension Housing Washer 1.5 mm
  • Chamfer Dimension Shaft Washer 1.1 mm
  • Inner Dia Housing Washer 153 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 55575 lbf
  • Static Thrust Load 180000 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1300 rpm
  • Weight 11.5 kg

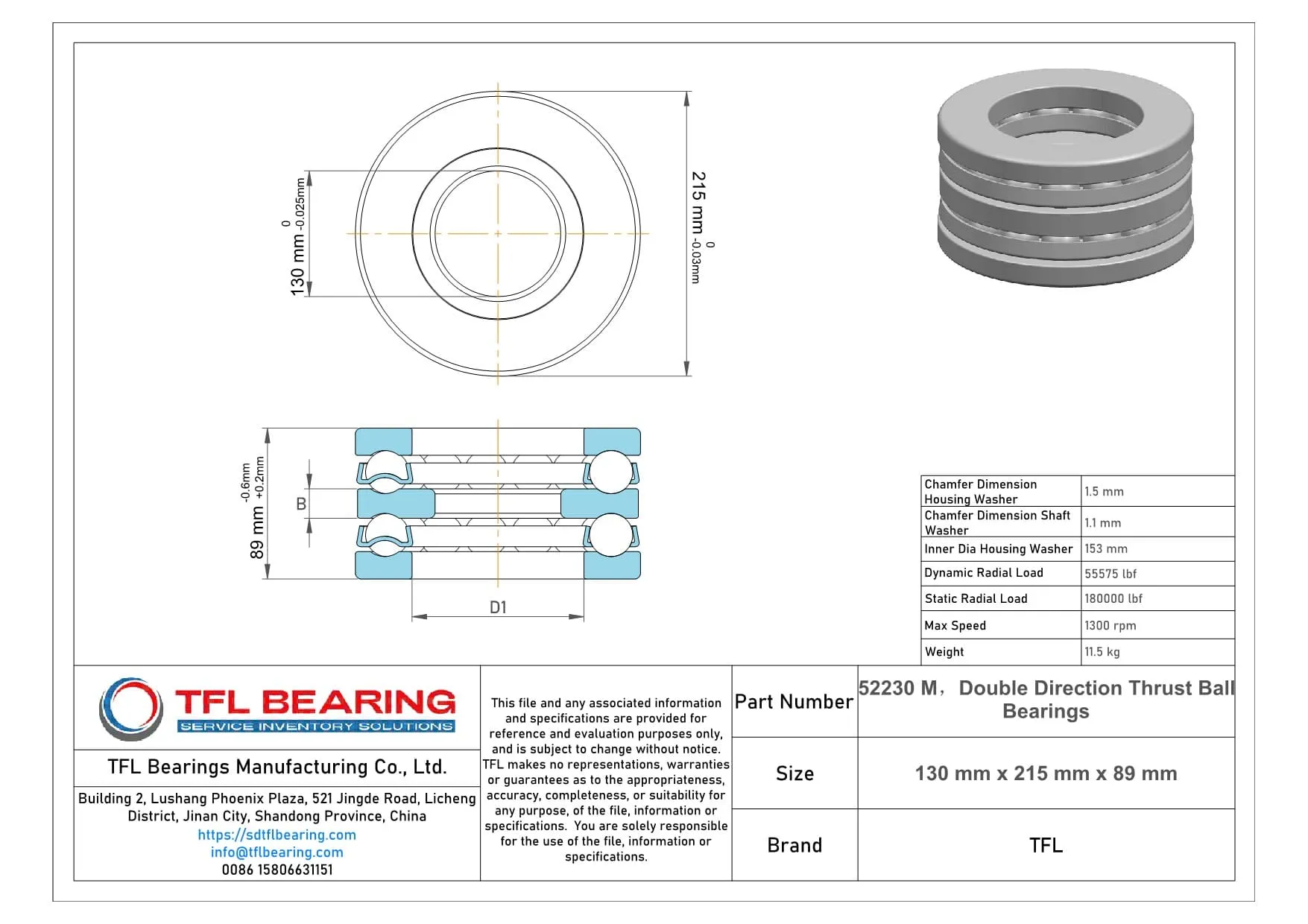

Double Direction Thrust Ball Bearings 52230 M dimension drawing
Download DWG Download PDF

Features

How Does 52230 M Bearing Handle Heavy Loads?

52230 M Bearing is built with chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 55575 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,300 rpm, it delivers reliable performance under demanding conditions.

Structural Advantages of 52230 M Bearing

52230 M Bearing features a precision-engineered raceway design, optimised for smooth operation under heavy loads.
The brass cage maintains ball alignment, minimising wear and extending the bearing’s lifespan.
Its wide temperature range of -30° to 110°C ensures consistent performance in various environments.
The open seal design allows for easy maintenance and lubrication.

Why Choose 52230 M Bearing for Precision Tasks?

52230 M Bearing’s chrome steel construction provides excellent resistance to wear and corrosion.
Its high static thrust load capacity of 180000 lbf ensures reliability in demanding applications.
The bearing’s brass cage reduces noise, making it ideal for precision machinery.
With RoHS and REACH compliance, it meets stringent environmental and safety standards.

Application

Industrial Uses of 52230 M Bearing
52230 M Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The brass cage offers smooth operation, reducing friction in continuous-use scenarios.

Where Is 52230 M Bearing Used?
In wind turbine gearboxes, 52230 M Bearing provides reliable support for rotational components, thanks to its robust chrome steel construction. Its metric dimensions make it a straightforward fit for European-designed equipment.

Built for Heavy-Duty Use: 52230 M Bearing
This bearing excels in mining equipment, where its open design simplifies maintenance in dusty environments. The wide temperature range ensures performance in both hot and cold operating conditions.

Automotive vs Aerospace: Applications of 52230 M Bearing
In automotive applications, 52230 M Bearing suits heavy-duty truck transmissions, while in aerospace, it supports auxiliary systems requiring precise axial load management. Its durability makes it versatile across industries.

Key Fields for 52230 M Bearing
52230 M Bearing is ideal for industrial pumps, where its static thrust load capacity prevents downtime. The chrome steel rings and brass cage combine for long service life in wet or corrosive environments.
