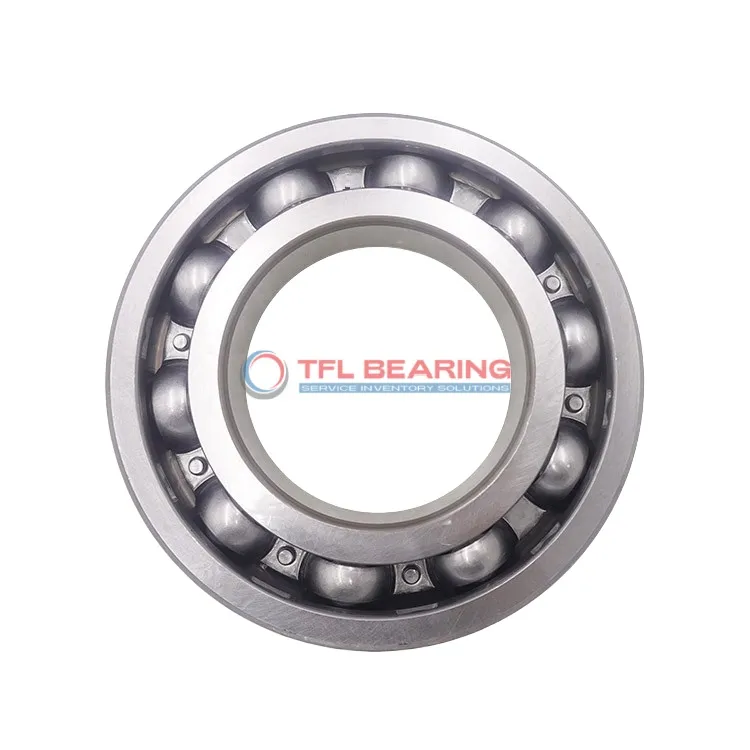

Single Row Deep Groove Ball Bearings 16026

Single Row Deep Groove Ball Bearings 16026

The 16026 is a single-row deep groove ball bearing with a 130mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 18704 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery like pumps or electric motors where radial loads are common.

Weighing 1900g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16026
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 22 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 18704 lbf
  • Static Radial Load 18322 lbf
  • Max Speed 3200 rpm
  • Weight 1900 g
  • price（$） 80.64
Single Row Deep Groove Ball Bearings 16026 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16026 Bearing

16026 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 18704 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 3,200 rpm, it delivers reliable performance in various conditions.

16026 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies maintenance while ensuring consistent lubrication.

Application

Industrial Uses of 16026 Bearing
The 16026 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance.
Its open design simplifies lubrication, making maintenance straightforward in demanding environments.

What Makes 16026 Bearing a Preferred Choice?
In automotive applications, 16026 Bearing supports components such as alternators and fans, thanks to its durable chrome steel construction.
The metric sizing ensures compatibility with a variety of vehicle models, both domestic and international.

Perfect Fit for Automation: 16026 Bearing
For automation systems, 16026 Bearing works well in robotic arms and conveyor belts, providing smooth operation under radial loads.
The stainless steel cage adds longevity, even in high-use scenarios.

Medical vs Industrial: Where 16026 Bearing Excels
In medical devices like centrifuges, 16026 Bearing offers consistent performance due to its precision engineering.
Its temperature range also makes it suitable for industrial equipment operating in varied conditions.

Where to Use 16026 Bearing
For household appliances like washing machines, 16026 Bearing ensures quiet and efficient operation.
The ABEC-1 tolerance class provides a balance of performance and affordability for everyday use.
