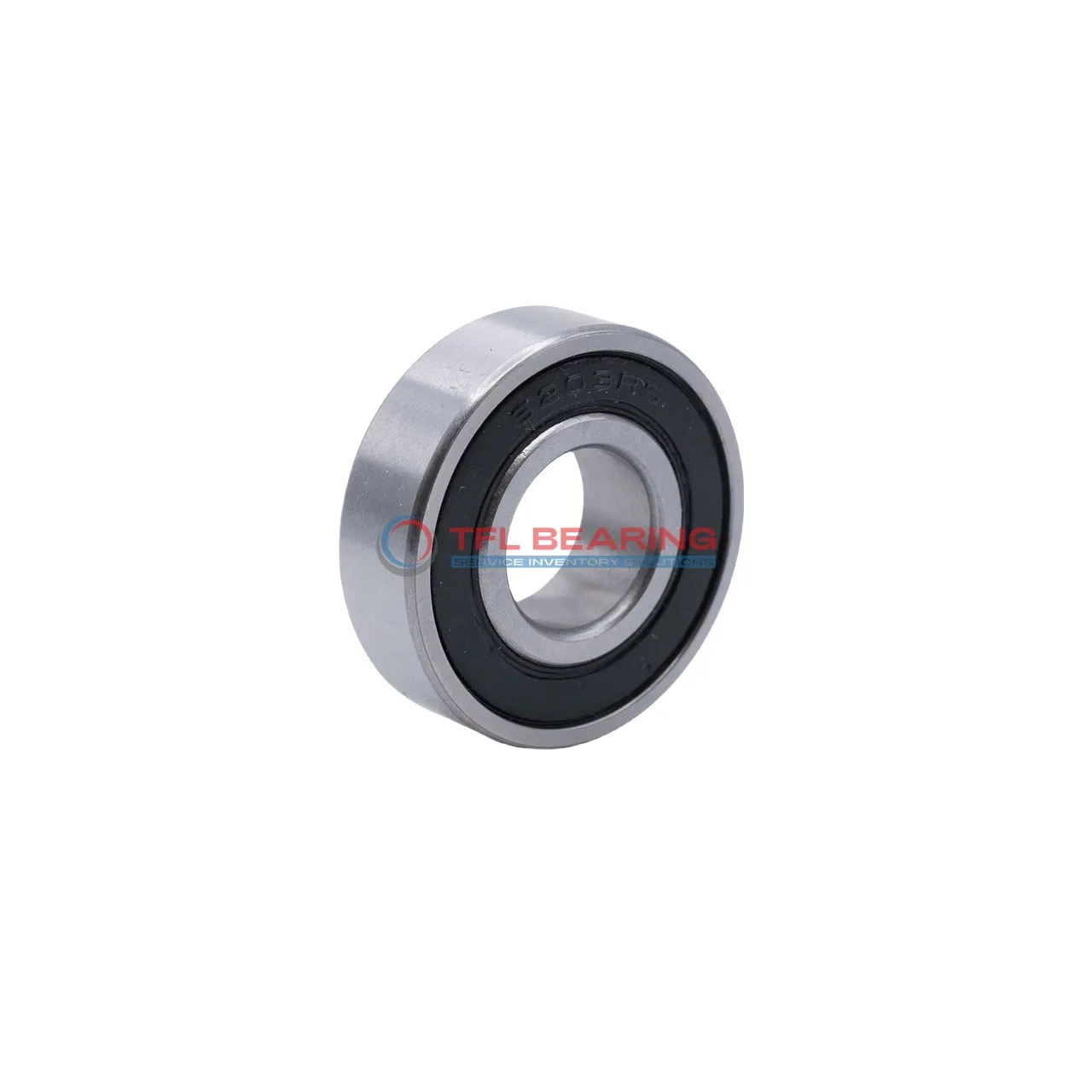

Single Row Deep Groove Ball Bearings 6200-2RS1 NT2

Single Row Deep Groove Ball Bearings 6200-2RS1 NT2

The 6200-2RS1 NT2 is a compact single-row deep groove ball bearing with a 10mm bore and 30mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 24,000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds strength and longevity, suitable for temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for small motors, pumps, or appliances where space is tight but performance matters.

Weighing just 32g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-2RS1 NT2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
  • price（$） 2.043
Single Row Deep Groove Ball Bearings 6200-2RS1 NT2 dimension drawing
Download DWG Download PDF

Features

Why Choose 6200-2RS1 NT2 Bearing for Precision Tasks?

6200-2RS1 NT2 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1147 lbf, it handles demanding conditions reliably.
The bearing operates smoothly at speeds up to 24,000 rpm, making it suitable for high-speed applications.

Its compact size (10 mm×30 mm×9 mm) allows for easy integration into various machinery.
The sealed design reduces maintenance needs, saving time and operational costs.

Application

Common Applications of 6200-2RS1 NT2 Bearing
6200-2RS1 NT2 Bearing is widely used in industrial machinery, such as conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6200-2RS1 NT2 Bearing can be found in components like alternators and water pumps, providing reliable radial load support. Its compact size and sealed features make it suitable for tight spaces and long service life.

For household appliances, 6200-2RS1 NT2 Bearing is often used in washing machines and fans, where smooth operation is essential. The sealed design helps maintain performance even in humid conditions.

In automation equipment, 6200-2RS1 NT2 Bearing supports precise movements in robotic arms and small actuators. Its low maintenance requirements make it a practical choice for continuous operation.
