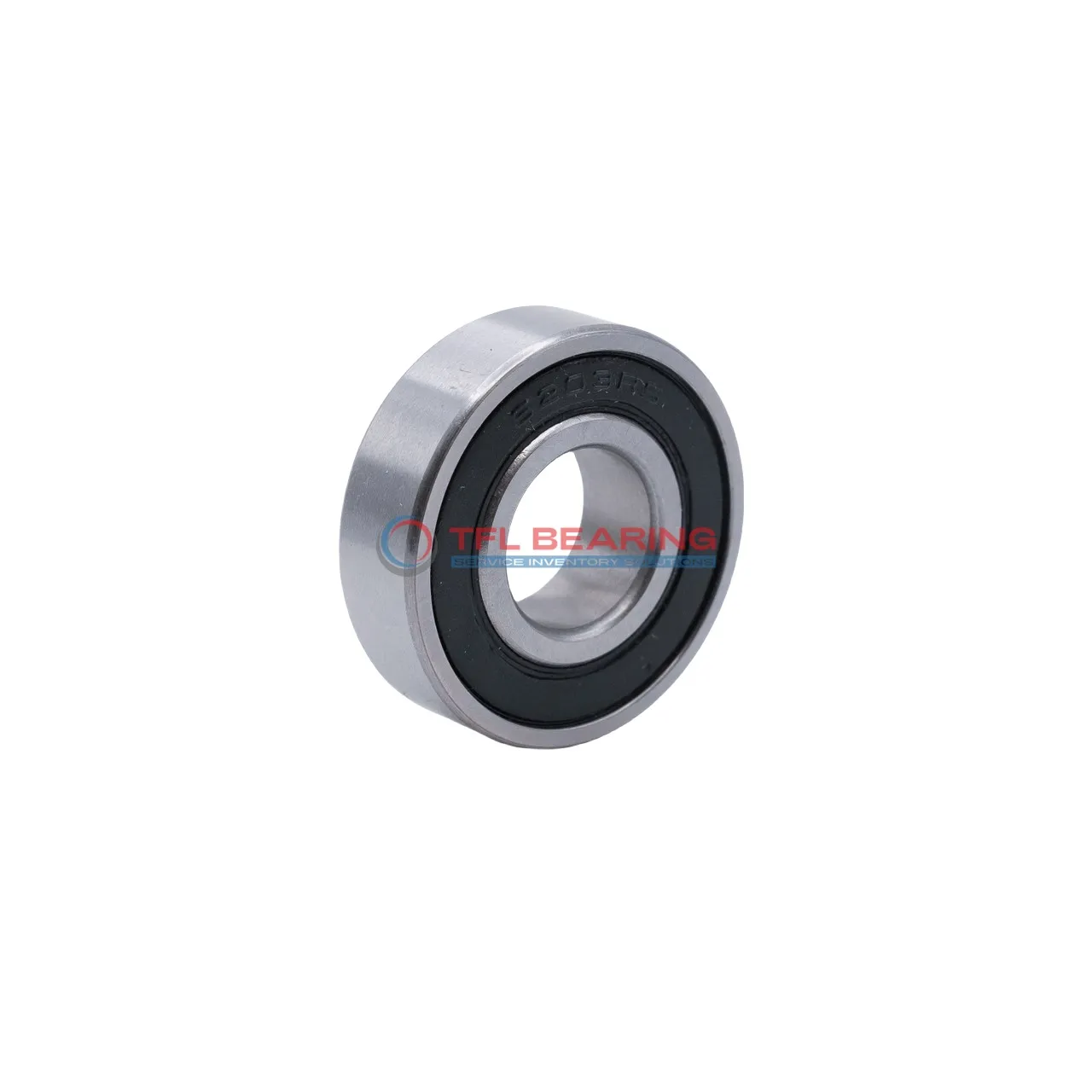

Single Row Deep Groove Ball Bearings 6200-2RS1/VK285

Single Row Deep Groove Ball Bearings 6200-2RS1/VK285

The 6200-2RS1/VK285 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a width of just 9mm. Made from chrome steel, it offers reliable performance for radial loads up to 1147 lbf.

Its sealed design keeps out dust and dirt, making it low-maintenance. The bearing can handle speeds up to 24,000 RPM and operates smoothly in temperatures from -30°C to 120°C.

With a lightweight construction at only 32g, it’s easy to handle and install. This model is interchangeable with SKF bearings, providing a practical replacement option.

Ideal for small machinery, electric motors, or appliances where space is limited but durability is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-2RS1/VK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
Single Row Deep Groove Ball Bearings 6200-2RS1/VK285 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6200-2RS1/VK285 Bearing

6200-2RS1/VK285 Bearing is designed with a single row deep groove, making it ideal for radial load applications.
The sealed construction helps keep contaminants out, ensuring smoother operation and longer life.

With chrome steel rings and balls, 6200-2RS1/VK285 Bearing offers good resistance to wear and corrosion.
Its dynamic radial load capacity of 1147 lbf ensures reliable performance under stress.

The bearing operates efficiently within a temperature range of -30°C to 120°C.
A maximum speed of 24,000 rpm makes it suitable for high-speed applications.

Maintenance is minimal thanks to the sealed design and quality materials.
This reduces downtime and keeps operational costs low.

Application

Industrial Uses of 6200-2RS1/VK285 Bearing
6200-2RS1/VK285 Bearing is commonly used in conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The chrome steel construction ensures durability in continuous operation.

What Makes 6200-2RS1/VK285 Bearing a Preferred Choice?
In household appliances like washing machines, 6200-2RS1/VK285 Bearing provides smooth and quiet operation. Its compact size and radial load capacity make it ideal for space-constrained applications.

Perfect Fit for Automation: 6200-2RS1/VK285 Bearing
6200-2RS1/VK285 Bearing works well in robotic arms and 3D printers, offering reliable performance with minimal maintenance. The sealed design helps prolong its lifespan in dusty environments.

Automotive vs Industrial: Applications of 6200-2RS1/VK285 Bearing
In automotive alternators, 6200-2RS1/VK285 Bearing handles radial loads efficiently, while in industrial fans, it ensures consistent performance. Its temperature range suits both high and low-heat conditions.
