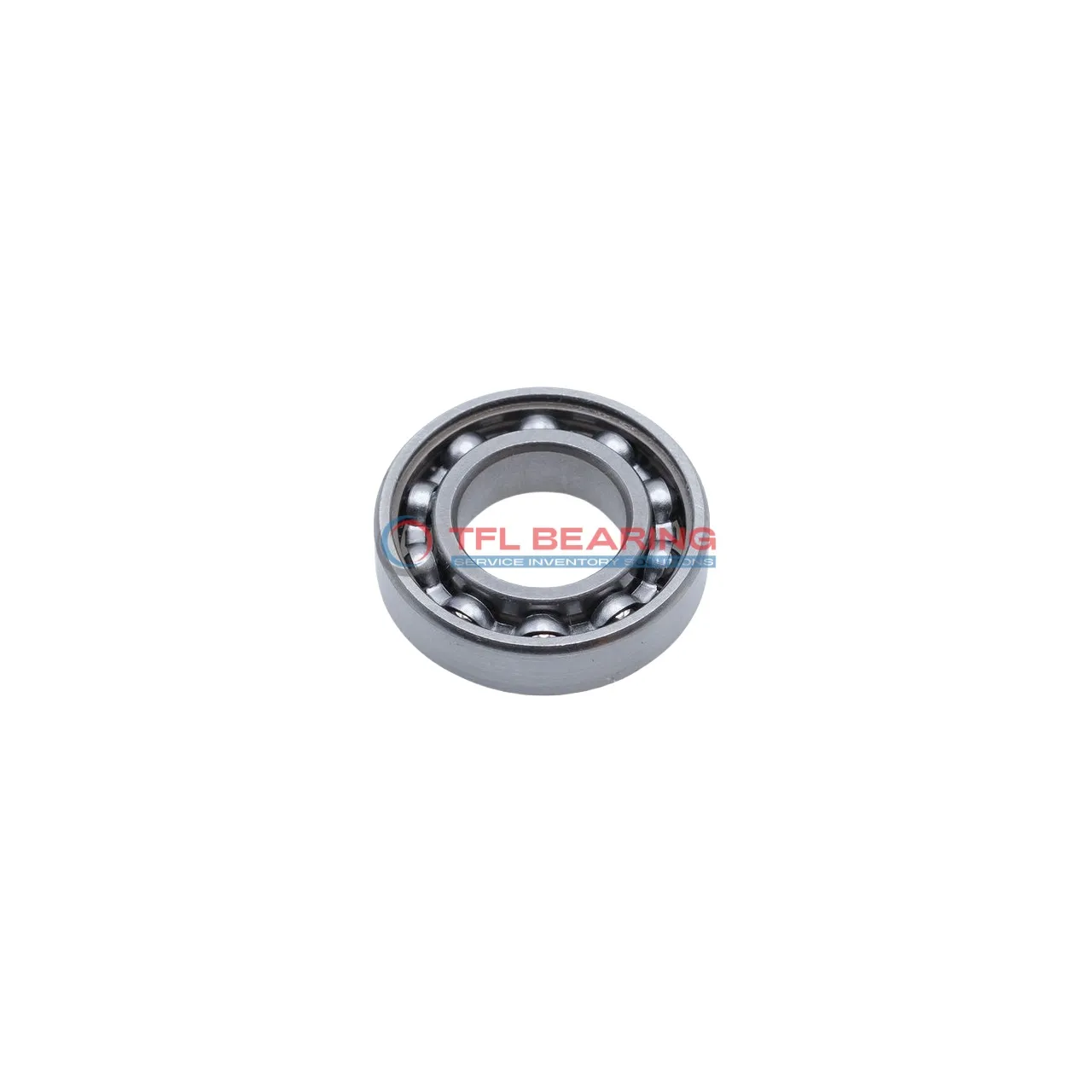

Single Row Deep Groove Ball Bearings 16010/W64E

Single Row Deep Groove Ball Bearings 16010/W64E

The 16010/W64E is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3619 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 180g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16010/W64E
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3619 lbf
  • Static Radial Load 2945 lbf
  • Max Speed 6300 rpm
  • Weight 180 g
Single Row Deep Groove Ball Bearings 16010/W64E dimension drawing
Download DWG Download PDF

Features

Performance Features of 16010/W64E Bearing

16010/W64E Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 3619 lbf.
Its solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.
The ABEC 1 tolerance class provides reliable precision for various applications.
With a maximum speed of 6,300 rpm, it balances performance and durability.

Application

Common Applications of 16010/W64E Bearing
This bearing is widely used in industrial equipment like electric motors and pumps, where its single-row design handles radial loads efficiently. The open seal type makes it suitable for environments where regular lubrication is possible.

Where Is 16010/W64E Bearing Used?
You’ll often find it in automotive applications such as alternators and small gearboxes, thanks to its solid oil lubrication for consistent performance. Its metric sizing ensures compatibility with various vehicle designs.

Ideal for Precision: 16010/W64E Bearing
In medical devices like lab centrifuges, this bearing’s chrome steel construction ensures durability and smooth operation. The ABEC 1 tolerance class provides reliable performance for precision instruments.

Automotive vs Industrial: Applications of 16010/W64E Bearing
While it excels in car components like water pumps, it’s equally effective in conveyor systems for its radial load capacity. The temperature range of -30° to 120°C makes it versatile for different environments.

Practical Applications of 16010/W64E Bearing
For household appliances like washing machines, this bearing offers quiet and reliable operation. Its lightweight design at 180g makes it a practical choice for compact devices.
