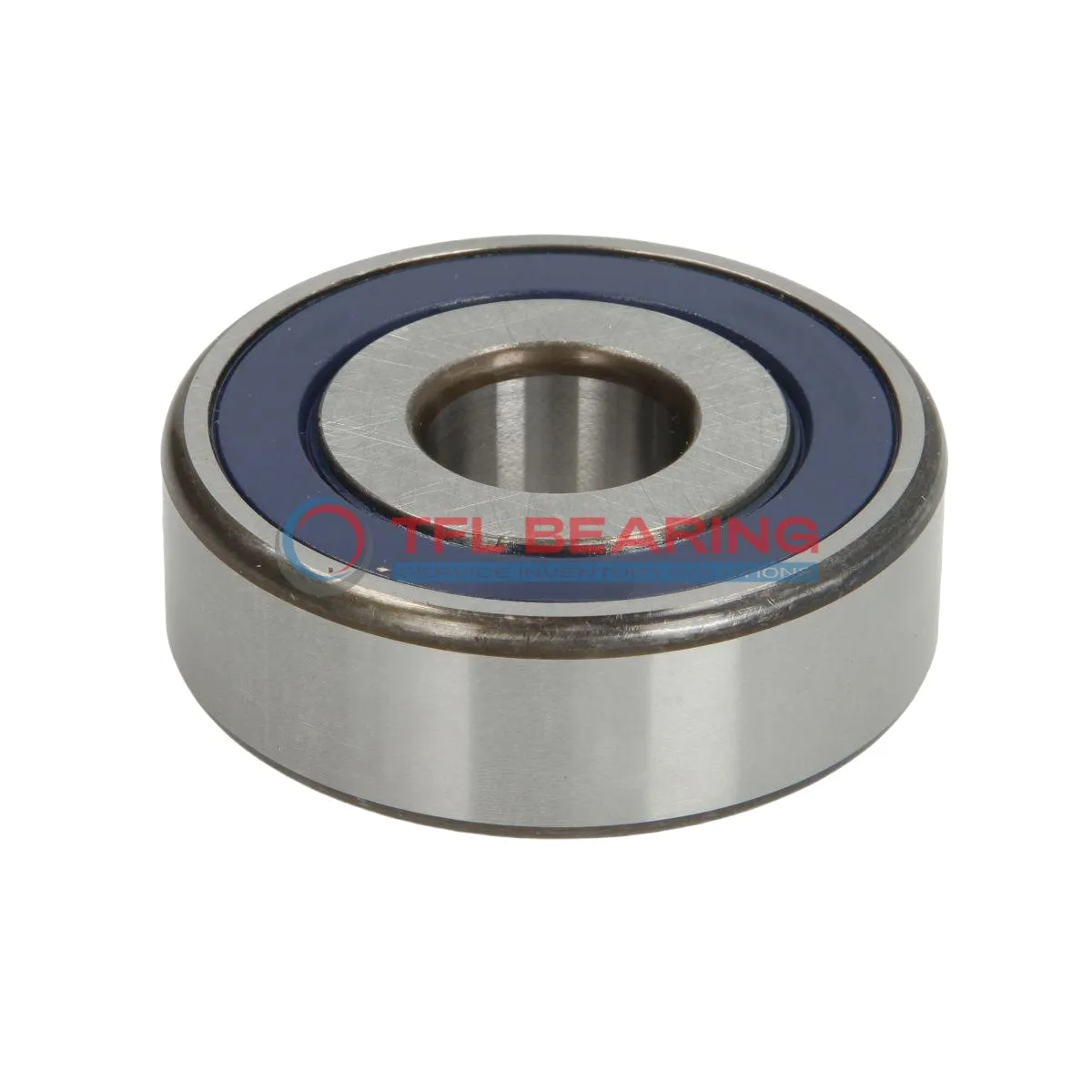

Single Row Deep Groove Ball Bearings 6305-2RS1TN9/C3GWF6

Single Row Deep Groove Ball Bearings 6305-2RS1TN9/C3GWF6

The 6305-2RS1TN9/C3GWF6 is a sealed single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Its nylon cage and sealed design keep dirt out while maintaining smooth rotation, even in temperatures from -30°C to 120°C. The C3 radial clearance ensures reliable performance under varying conditions.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing 232g, it’s a sturdy yet lightweight option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1TN9/C3GWF6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
Single Row Deep Groove Ball Bearings 6305-2RS1TN9/C3GWF6 dimension drawing
Download DWG Download PDF

Features

How Does 6305-2RS1TN9/C3GWF6 Bearing Reduce Friction?

6305-2RS1TN9/C3GWF6 Bearing features a deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.
With a maximum speed of 11,000 rpm, it delivers efficient performance in various applications.
The sealed design protects against contaminants, further enhancing its reliability.

Application

Where Is 6305-2RS1TN9/C3GWF6 Bearing Used?
In industrial settings, 6305-2RS1TN9/C3GWF6 Bearing is commonly used in machinery like pumps and electric motors, where its sealed design keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

For automotive applications, 6305-2RS1TN9/C3GWF6 Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity. Its nylon cage reduces noise, making it suitable for quieter vehicle operation.

In home appliances, 6305-2RS1TN9/C3GWF6 Bearing can be found in washing machines and fans, where durability and smooth rotation are key. The chrome steel construction ensures long-lasting performance even with daily use.

Automation systems benefit from 6305-2RS1TN9/C3GWF6 Bearing in robotic arms and conveyor belts, where precision and reliability are essential. The sealed design also helps in dusty or humid environments.
