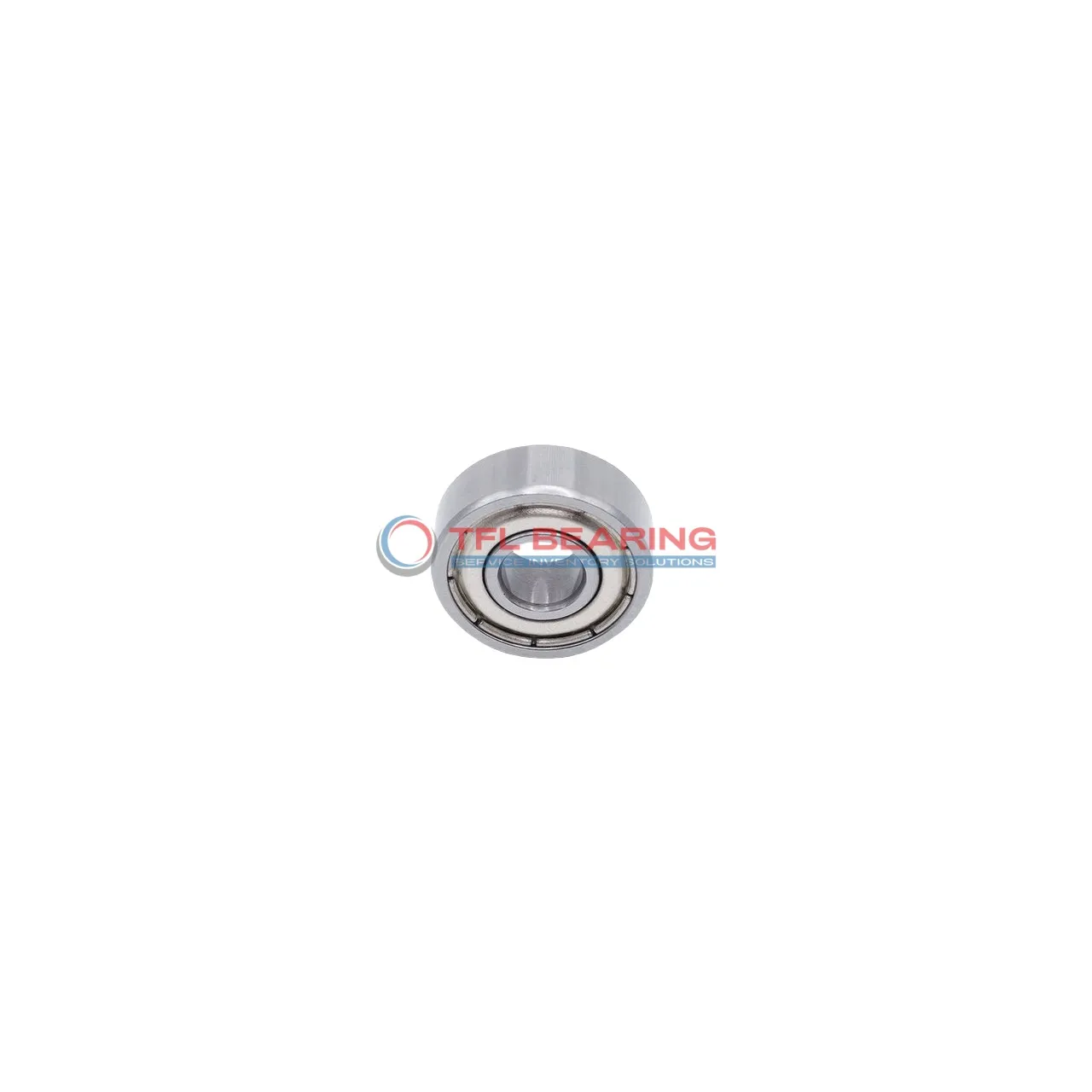

Stainless Steel Deep Groove Ball Bearings W 6305-2Z

Stainless Steel Deep Groove Ball Bearings W 6305-2Z

The W 6305-2Z is a stainless steel deep groove ball bearing, measuring 25mm by 62mm by 17mm. Its shielded design keeps grease in and dirt out, making it low-maintenance. The bearing handles radial loads up to 4002 lbf and spins smoothly at 13,000 RPM.

Made entirely of stainless steel, it resists corrosion and lasts longer in harsh conditions. The single-row construction ensures reliable performance in radial load applications. It operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for food processing or marine equipment where rust resistance is key. Weighing 0.23kg, it’s lightweight yet durable for industrial use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6305-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 4002 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.23 kg
Stainless Steel Deep Groove Ball Bearings W 6305-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 6305-2Z Bearing for Precision Tasks?

W 6305-2Z Bearing features stainless steel construction, offering excellent resistance to corrosion and wear.
Its shielded design keeps contaminants out while maintaining smooth operation.

The dynamic radial load capacity of 4002 lbf ensures reliable performance in various applications.
With a maximum speed of 13,000 rpm, it combines durability with high-speed efficiency.

W 6305-2Z Bearing’s single-row design provides consistent radial load support.
Its grease lubrication reduces maintenance needs, making it a practical choice for long-term use.

Application

Industrial Uses of W 6305-2Z Bearing
W 6305-2Z Bearing is commonly used in industrial machinery like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The shielded design helps keep contaminants out, extending the bearing’s lifespan.

In automotive applications, W 6305-2Z Bearing fits well in electric motors and alternators, providing reliable radial load support. Its metric sizing ensures compatibility with a variety of vehicle models.

For food processing equipment, W 6305-2Z Bearing’s stainless steel material meets hygiene standards while handling moderate loads. The grease lubrication ensures smooth operation even in high-speed scenarios.

In household appliances like washing machines, W 6305-2Z Bearing offers quiet and efficient performance. Its durable design reduces maintenance needs, making it a cost-effective choice for everyday use.
