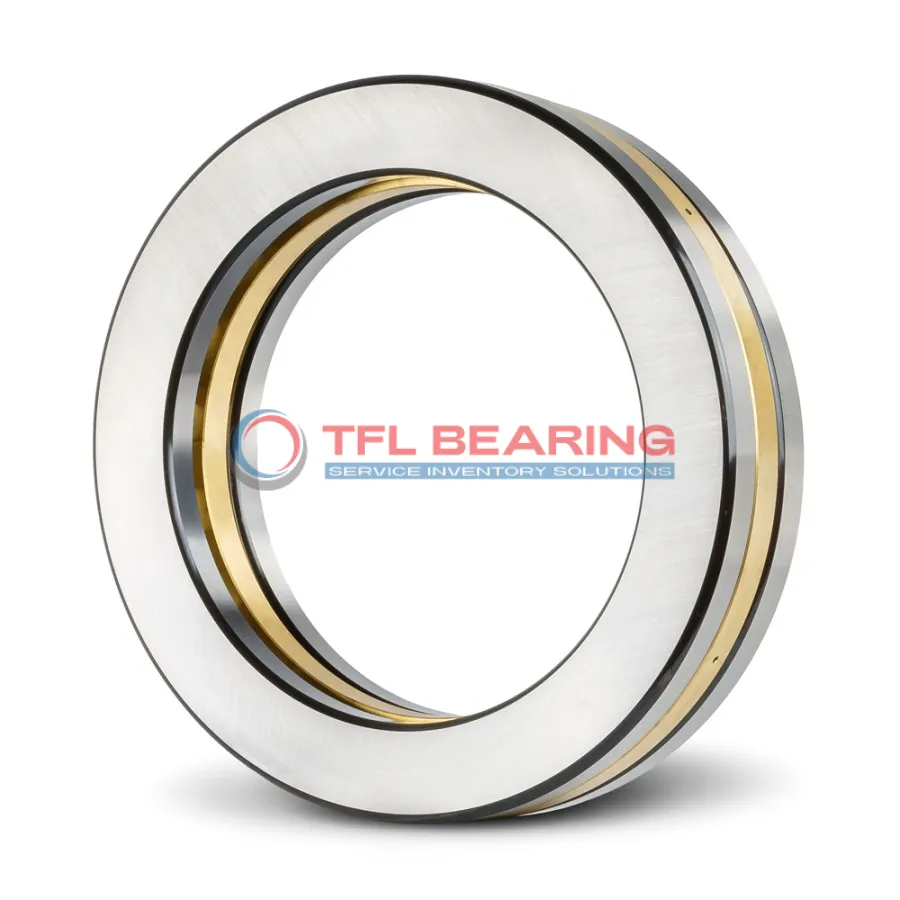

Single Row Cylindrical Roller Thrust Bearings 81164 M

Single Row Cylindrical Roller Thrust Bearings 81164 M

The 81164 M is a single-row cylindrical roller thrust bearing, measuring 320mm in bore diameter and 400mm in outer diameter, with a width of 63mm. It’s built from tough chrome steel, ensuring durability under heavy loads.

This bearing handles thrust loads up to 198000 lbf and operates smoothly at speeds up to 800 RPM. The machined brass cage adds strength and reduces friction for reliable performance.

Its robust design includes precise tolerances and a chamfered housing washer for easier installation. Suitable for temperatures between -30°C and 110°C, it works well in demanding environments.

Ideal for industrial machinery like gearboxes or presses where high thrust loads are common. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement. Weighing 20.7kg, it’s built for heavy-duty applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81164 M
  • size 320 mm x 400 mm x 63 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.040mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.040mm to 0
  • Width 63 mm
  • Height Tolerance -0.50mm to +0.04mm
  • Outside Diameter Shaft Washer 396 mm
  • Bore Diameter Housing Washer 324 mm
  • Height Shaft Washer 19 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 198000 lbf
  • Static Radial Load 1046250 lbf
  • Max Speed 800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 20.7 kg
  • Roller And Cage Thrust Assembly K 81164 M
  • Shaft Washer WS 81164
  • Housing Washer GS 81164
Single Row Cylindrical Roller Thrust Bearings 81164 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81164 M Bearing

81164 M Bearing is built with chrome steel washers and rollers, offering robust resistance to high thrust loads.
Its dynamic radial load capacity reaches 198000 lbf, making it suitable for heavy-duty industrial applications.

The machined brass cage ensures precise roller alignment, enhancing durability and reducing friction.
With a maximum speed of 800 rpm, it maintains stable performance under demanding conditions.

81164 M Bearing operates efficiently in temperatures ranging from -30° to 110°C, adapting to various environments.
Its compliant RoHS and REACH certifications ensure it meets international safety and environmental standards.

Application

Industrial Uses of 81164 M Bearing
81164 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

In wind turbine systems, 81164 M Bearing supports the main shaft, providing reliable performance in demanding conditions. Its chrome steel construction offers excellent durability against wear and corrosion.

For mining equipment, 81164 M Bearing excels in applications like conveyor systems, where its high static radial load capacity is essential. The metric sizing makes it compatible with a variety of industrial machinery.

Where Is 81164 M Bearing Used?
You’ll find 81164 M Bearing in marine propulsion systems, where its ability to handle axial loads is crucial. The temperature range of -30° to 110°C ensures performance in diverse environments.

Built for Heavy-Duty Use: 81164 M Bearing
81164 M Bearing is ideal for steel mills, where its robust design withstands extreme loads and high temperatures. The brass cage reduces friction, extending the bearing’s service life.

Automotive vs Aerospace: Applications of 81164 M Bearing
In automotive applications, 81164 M Bearing is used in heavy trucks for transmissions, while in aerospace, it supports landing gear mechanisms. Its precision engineering ensures reliability in both fields.
