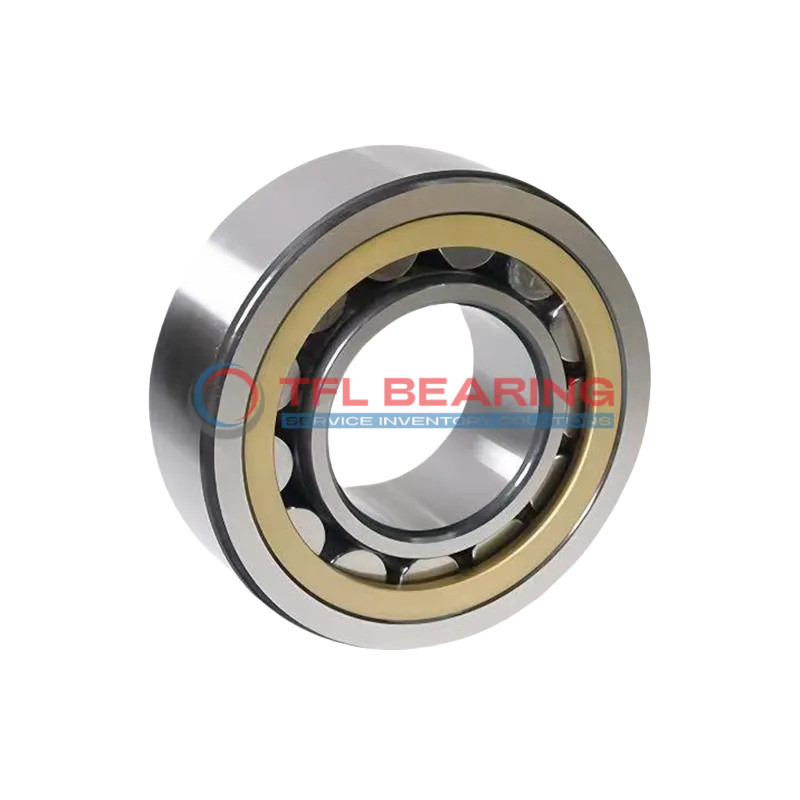

Single Row Cylindrical Roller Bearings With Inner Ring NU 2326 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 2326 ECML

The NU 2326 ECML is a single-row cylindrical roller bearing with a 130mm bore and 280mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 238,500 lbf and runs smoothly at speeds up to 4000 RPM.

Its brass cage design ensures reliable performance, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a width of 93mm and chamfered edges, it fits securely in heavy-duty applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or gear systems where high radial loads are common. Compliant with RoHS and REACH standards, it’s a dependable option for demanding environments. Weighing 28.4kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2326 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 93 mm
  • Width Tolerance -0.25mm to 0
  • Chamfer Dimension r1,2(min.) 4 mm
  • Chamfer Dimension r3,4(min.) 4 mm
  • Permissible Axial Displacement(max.) 8.7 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 238500 lbf
  • Static Radial Load 281250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 28.4 kg
  • Shoulder Dia Of Outer Ring 235.2 mm
  • Raceway Diameter Of Inner Ring 167 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2326 ECML dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2326 ECML Bearing

NU 2326 ECML Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 238,500 lbf, ensuring robust performance in heavy-duty applications.

The brass cage design helps maintain roller alignment, reducing friction and wear.
This extends the bearing’s service life, even under continuous operation.

NU 2326 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
It is suitable for both grease and oil lubrication, providing flexibility in various industrial settings.

With a maximum speed of 4,000 rpm, this bearing balances high performance and durability.
Its open design simplifies maintenance, making it a practical choice for many applications.

Application

Industrial Uses of NU 2326 ECML Bearing
NU 2326 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it suitable for demanding environments.

Where Is NU 2326 ECML Bearing Used?
In automotive applications, NU 2326 ECML Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing and open design make it easy to integrate into various vehicle systems.

Perfect Fit for Automation: NU 2326 ECML Bearing
NU 2326 ECML Bearing works well in automated production lines, particularly in robotic arms and conveyor systems. The combined load capability allows it to manage both radial and axial forces without compromising performance.

Medical vs Industrial: Where NU 2326 ECML Bearing Excels
NU 2326 ECML Bearing is ideal for industrial equipment like pumps and compressors, where reliability is key. While not typically used in medical devices, its precision and durability make it a standout choice for heavy industrial applications.

Essential Roles of NU 2326 ECML Bearing
NU 2326 ECML Bearing plays a vital role in wind turbines, where its high dynamic load capacity ensures long-term performance. The grease or oil lubrication options provide flexibility for different operating conditions.
