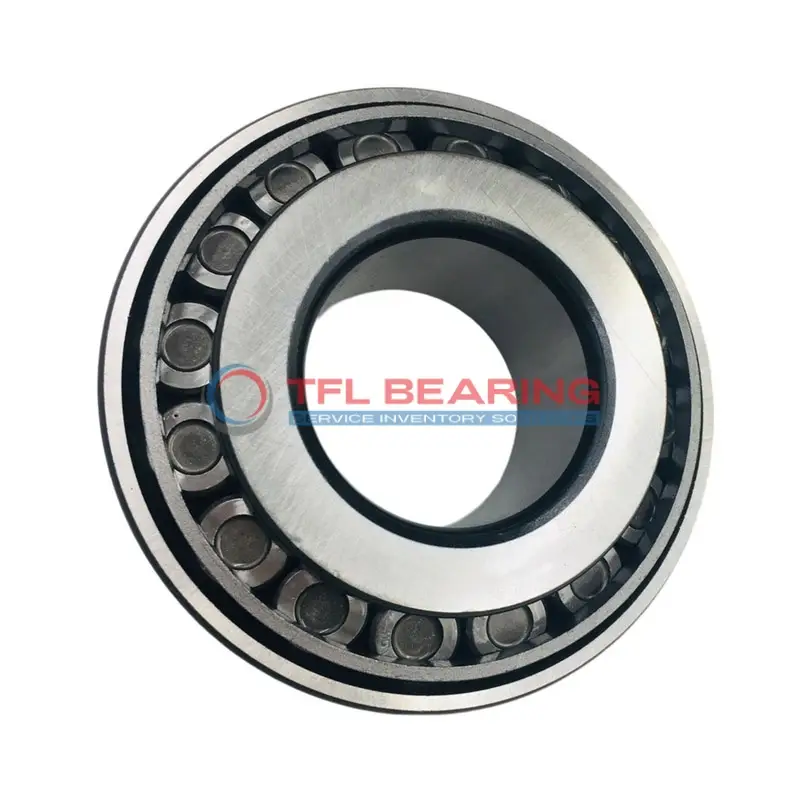

576 Single Cones (Imperial)

576 Single Cones (Imperial)

The 576 single cones are tapered roller bearings designed for combined loads, with a 2.875″ bore and made from durable chrome steel. They handle dynamic radial loads up to 46500 lbf and are built to last in tough conditions.

Their open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures ranging from -30°C to 110°C.

These cones are part of the 575 series and are interchangeable with Timken models, making them a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles.

Compliant with RoHS and REACH standards, they offer a balance of strength and longevity. Available in standard radial clearance, with options for C3, C4, or C5 fits.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 576
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 576-572 , 576-572A , 576-572X , 576-574
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 575
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 3.27"
  • Cone Backface Backing Diameter 3.54"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 80900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 21000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 576 Bearing

576 Bearing is constructed with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

576 Bearing’s standard radial clearance options provide flexibility for different applications.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of 576 Bearing
576 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 576 Bearing Used?
You’ll find 576 Bearing in automotive axles and wheel hubs, providing reliable performance under both radial and thrust loads. Its inch sizing makes it a good fit for older or custom-built vehicles.

Built for Heavy-Duty Use: 576 Bearing
576 Bearing excels in industrial fans and conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength for high-load applications.

Automotive vs Aerospace: Applications of 576 Bearing
In automotive settings, 576 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The temperature range suits both environments well.

Key Fields for 576 Bearing
576 Bearing is a solid choice for mining equipment, where its dynamic load capacity keeps operations running smoothly. The standard radial clearance offers flexibility for various installation needs.
