Inner Rings PI162012

Inner Rings PI162012

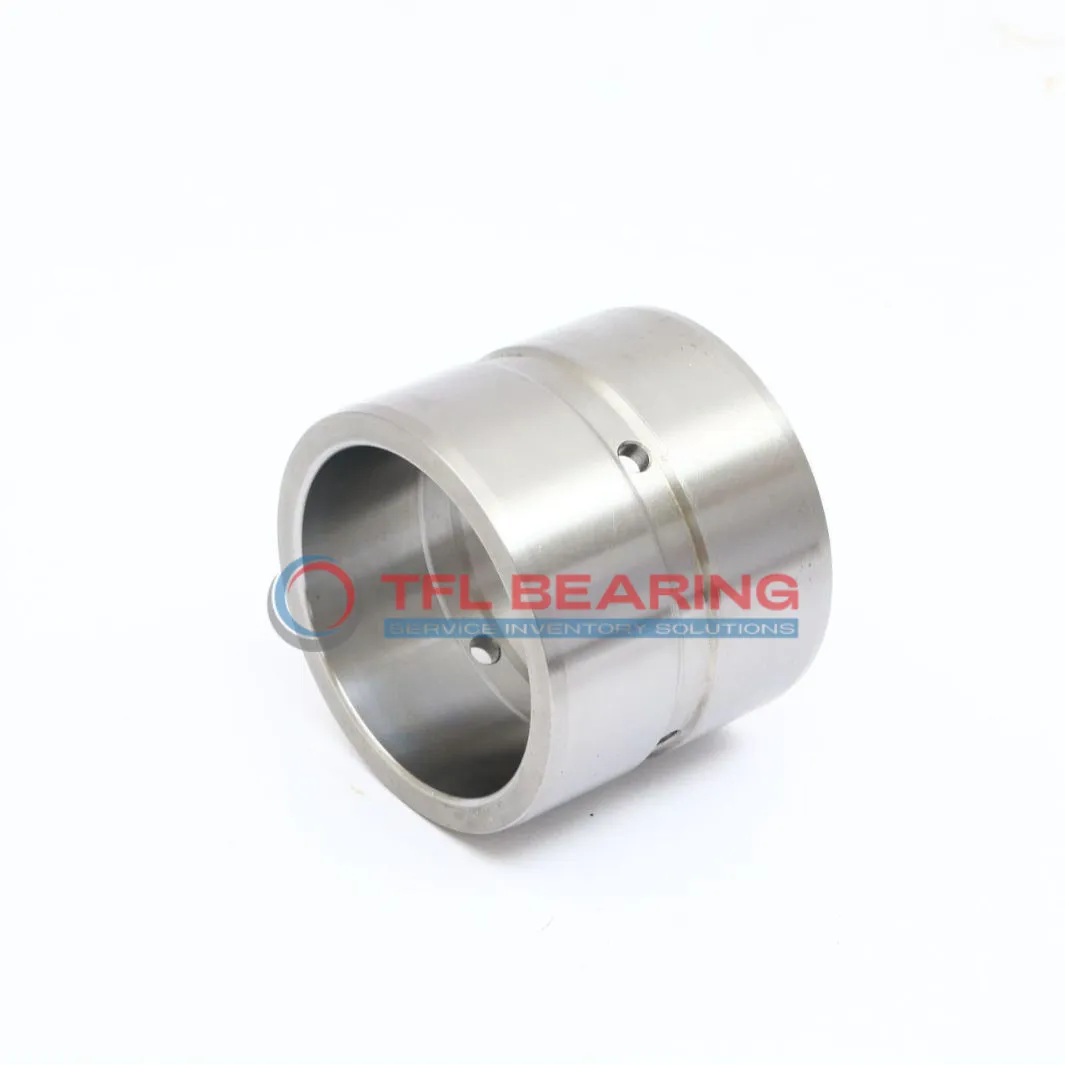

The PI162012 is a needle roller bearing inner ring with a 1-inch bore and 1.25-inch outer diameter, crafted from sturdy chrome steel. It fits seamlessly with INA bearings, offering a reliable interchange option.
Designed for inch-based systems, this ring handles radial loads efficiently and comes pre-lubricated for smooth operation. Its compact width of 0.75 inches makes it suitable for tight spaces.
The chrome steel construction ensures durability, while the precise tolerances guarantee a snug fit. RoHS compliance means it meets environmental safety standards.
Ideal for machinery requiring needle roller bearings, such as automotive transmissions or industrial equipment. Weighing just 40.6 grams, it’s lightweight yet robust for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number PI162012
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Series PI
  • Bore Dia 1"
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 1.25"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 0.75"
  • Width Tolerance -0.25mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 40.6 g

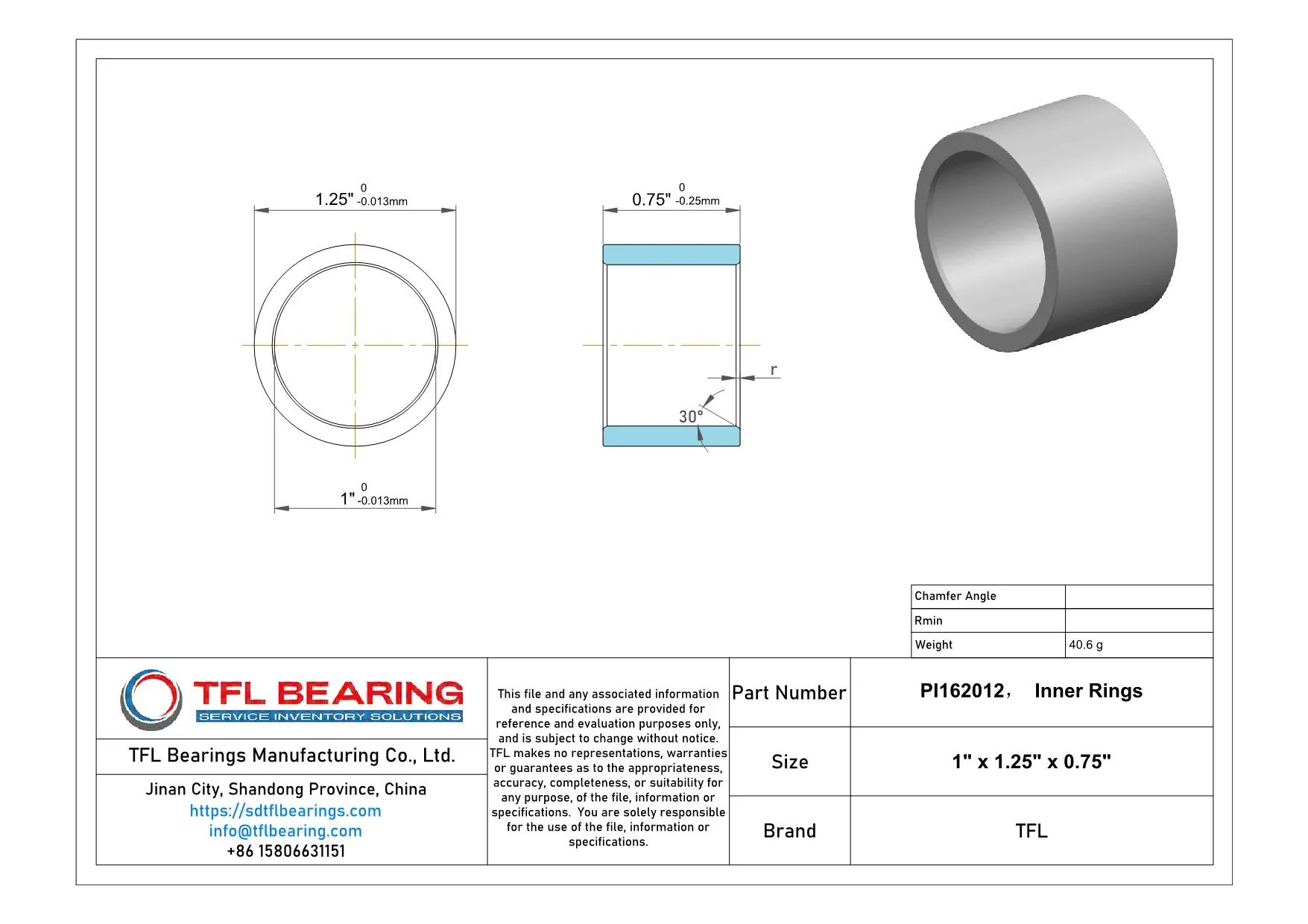

Inner Rings PI162012 dimension drawing
Download DWG Download PDF

Features

Performance Features of PI162012 Bearing
PI162012 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The inch-based measurements provide compatibility with a range of machinery, simplifying integration.
With RoHS compliance, PI162012 Bearing meets environmental standards while maintaining reliable performance.

Application

Key Fields for PI162012 Bearing
PI162012 Bearing is commonly used in automotive transmissions, where its compact design and needle roller construction help manage high radial loads efficiently. The inch sizing makes it a straightforward fit for many North American vehicle models.
In industrial gearboxes, PI162012 Bearing’s chrome steel material ensures durability under continuous operation. Its lubricated design reduces friction, making it suitable for high-speed applications.
For small machinery like power tools, PI162012 Bearing provides reliable performance due to its lightweight and precise tolerances. The needle rollers offer smooth rotation, enhancing the tool’s overall efficiency.
