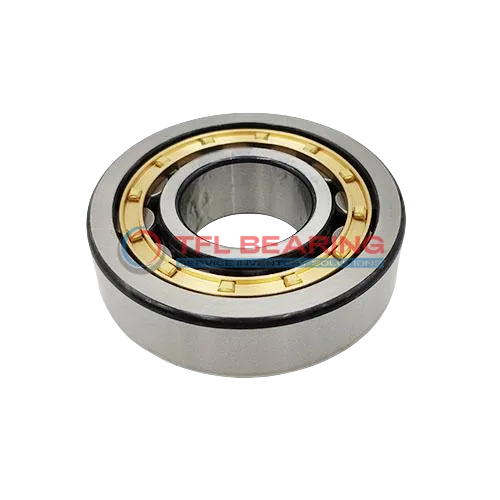

Single Row Cylindrical Roller Bearings With Inner Ring NU 19/600 ECMA/HA1

Single Row Cylindrical Roller Bearings With Inner Ring NU 19/600 ECMA/HA1

The NU 19/600 ECMA/HA1 is a single row cylindrical roller bearing with a 600mm bore and 800mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 427500 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where radial and axial loads are present.

Weighing 130kg, it’s a robust option for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 19/600 ECMA/HA1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 800 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 90 mm
  • Width Tolerance -0.50mm to 0
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 4.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 427500 lbf
  • Static Radial Load 855000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 130 kg
  • Shoulder Dia Of Outer Ring 740 mm
  • Raceway Diameter Of Inner Ring 649 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 19/600 ECMA/HA1 dimension drawing
Download DWG Download PDF

Features

How Does NU 19/600 ECMA/HA1 Bearing Handle Combined Loads?

NU 19/600 ECMA/HA1 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 427,500 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage, centred on the outer ring, maintains roller alignment for smooth operation and reduced wear.
With a maximum speed of 1,000 rpm, it delivers durability and efficiency in demanding environments.

Application

Industrial Uses of NU 19/600 ECMA/HA1 Bearing
NU 19/600 ECMA/HA1 Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its high radial load capacity ensures reliable performance. The brass cage design helps reduce friction, making it suitable for continuous operation.

Where Is NU 19/600 ECMA/HA1 Bearing Used?
In wind turbine systems, NU 19/600 ECMA/HA1 Bearing handles the combined loads from rotor blades and gear mechanisms. Its chrome steel construction provides durability in harsh outdoor conditions.

Built for Heavy-Duty Use: NU 19/600 ECMA/HA1 Bearing
NU 19/600 ECMA/HA1 Bearing excels in mining equipment, where its large bore size and robust design withstand extreme loads. The open seal type allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of NU 19/600 ECMA/HA1 Bearing
NU 19/600 ECMA/HA1 Bearing is found in large commercial vehicle axles, offering stability under heavy loads. While not typically used in aerospace, its precision makes it ideal for industrial applications.

Practical Applications of NU 19/600 ECMA/HA1 Bearing
NU 19/600 ECMA/HA1 Bearing supports paper manufacturing machinery, where its high-speed capability and grease lubrication ensure smooth operation. The metric dimensions make it easy to integrate into existing systems.
