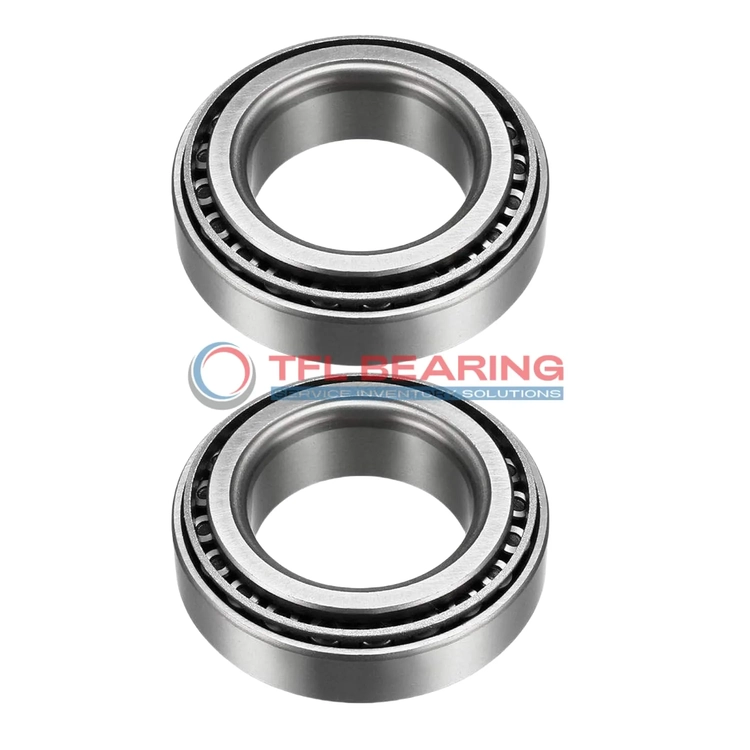

TS (Single Row Tapered Roller Bearings) (Imperial) 29675-29624

The 29675-29624 is a single-row tapered roller bearing with a 2.75″ bore and 4.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 29675-29624
Brand TFL
Interchangeable Timken
Size 2.75" x 4.5" x 1.0937"
Bore Dia 2.75"
Bore Dia Tolerance +0.005" to 0
Outer Dia 4.5"
Outer Dia Tolerance +0.001" to 0
Cone Width 1"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.875"
Cup Width Tolerance +0.002" to -0.01
Width 1.0937"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.06"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 3.66"
Cone Backface Backing Diameter 3.15"
Cup Frontface Backing Diameter 4.33"
Cup Backface Backing Diameter 4.06"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.08"
Effective Center Location 0.04"
System of Measurement Inch
Type Bearing
Cone Part Number 29675
Cup Part Number 29624
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 29600
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 24800 lbf
Static Radial Load 37200 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 2.3 lb

Features

Performance Features of 29675-29624 Bearing

29675-29624 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

The tapered roller design ensures smooth operation under both radial and thrust loads.
Standard radial clearance options provide flexibility for different installation requirements.

Application

Industrial Uses of 29675-29624 Bearing
29675-29624 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 29675-29624 Bearing Used?
You’ll often find 29675-29624 Bearing in agricultural machinery, supporting axles and gearboxes. Its inch sizing makes it a good fit for older equipment still using imperial measurements.

Built for Heavy-Duty Use: 29675-29624 Bearing
29675-29624 Bearing works well in mining applications, where its high dynamic radial load capacity keeps operations running smoothly. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 29675-29624 Bearing
In automotive settings, 29675-29624 Bearing supports wheel hubs and differentials, while its aerospace use is limited due to weight constraints. The steel cage provides reliable performance under stress.

Perfect Fit for Automation: 29675-29624 Bearing
29675-29624 Bearing is suitable for conveyor systems in factories, where its tapered rollers manage both radial and thrust loads. The standard radial clearance ensures smooth operation in varied temperatures.
