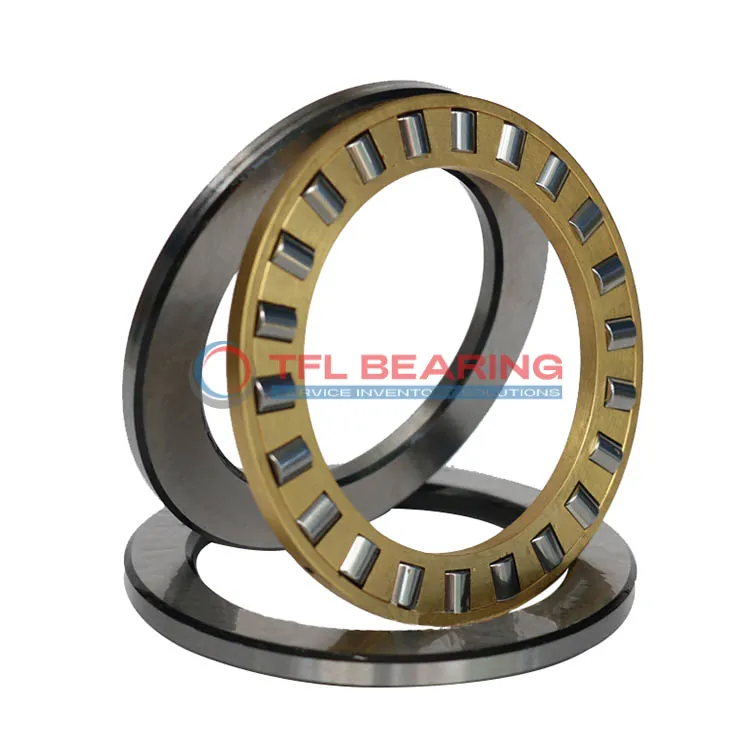

Single Row Cylindrical Roller Thrust Bearings 811/1060 M

Single Row Cylindrical Roller Thrust Bearings 811/1060 M

The 811/1060 M is a large single-row cylindrical roller thrust bearing, measuring 1060mm in bore diameter and 1250mm in outer diameter, with a width of 150mm. Made from durable chrome steel, it handles heavy thrust loads up to 1192500 lbf.

Its machined brass cage ensures smooth operation at speeds up to 200 RPM, while the robust design withstands temperatures from -30°C to 110°C. The bearing is interchangeable with SKF models, making it a reliable replacement option.

With a weight of 225kg, this bearing is built for heavy-duty applications like industrial machinery or large gear systems. Compliant with RoHS and REACH standards, it offers both strength and safety in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 811/1060 M
  • size 1060 mm x 1250 mm x 150 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 1060 mm
  • Bore Dia Tolerance -0.125mm to 0
  • Outer Dia 1250 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 150 mm
  • Height Tolerance -1.40mm to +0.10mm
  • Outside Diameter Shaft Washer 1244 mm
  • Bore Diameter Housing Washer 1066 mm
  • Height Shaft Washer 45 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 1192500 lbf
  • Static Radial Load 8437500 lbf
  • Max Speed 200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 225 kg
  • Shaft Washer IW-811/1060
  • Housing Washer OW-811/1060
Single Row Cylindrical Roller Thrust Bearings 811/1060 M dimension drawing
Download DWG Download PDF

Features

How Does 811/1060 M Bearing Handle Heavy Loads?

811/1060 M Bearing is built with chrome steel washers and rollers, offering robust resistance to extreme thrust loads.
Its dynamic radial load capacity reaches 1,192,500 lbf, ensuring dependable performance in heavy-duty applications.
The machined brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 200 rpm, it delivers stability and efficiency under high-pressure conditions.

Why Choose 811/1060 M Bearing for Precision Tasks?

811/1060 M Bearing features precise dimensions, with a bore diameter of 1060 mm and outer diameter of 1250 mm.
The chrome steel construction ensures consistent performance in temperatures ranging from -30° to 110°C.
Its machined brass cage provides smooth operation, minimising wear over time.
This makes it suitable for applications requiring high precision and reliability.

Engineered for Reliability: 811/1060 M Bearing

811/1060 M Bearing’s chrome steel rollers and washers ensure long-lasting performance under heavy loads.
The bearing’s static radial load capacity of 8,437,500 lbf makes it ideal for demanding industrial uses.
Its machined brass cage enhances stability, reducing maintenance needs.
With RoHS and REACH compliance, it meets stringent environmental and safety standards.

Structural Advantages of 811/1060 M Bearing

811/1060 M Bearing’s large bore diameter of 1060 mm accommodates substantial shaft sizes.
The precise tolerances of -0.125mm to 0 ensure a secure fit and smooth operation.
Its robust chrome steel construction resists wear, even in high-stress environments.
The bearing’s 150 mm width provides ample support for heavy axial loads.

What Makes 811/1060 M Bearing Suitable for High-Temperature Applications?

811/1060 M Bearing operates efficiently in temperatures from -30° to 110°C.
The chrome steel materials resist thermal expansion, maintaining performance under heat.
Its machined brass cage ensures smooth rolling action, even in fluctuating temperatures.
This makes it a reliable choice for industrial applications with varying thermal conditions.

Application

Industrial Uses of 811/1060 M Bearing
811/1060 M Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its cylindrical roller design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

In wind turbine systems, 811/1060 M Bearing supports the main shaft, providing stability and durability in demanding conditions. Its large bore diameter makes it suitable for heavy-duty applications requiring precise alignment.

For mining equipment, 811/1060 M Bearing’s chrome steel construction offers reliable performance in conveyors and crushers. The wide temperature range allows it to function efficiently in harsh environments.

Automotive vs Aerospace: Applications of 811/1060 M Bearing
In automotive applications, 811/1060 M Bearing is found in large trucks and industrial vehicles, where it manages axial loads in transmissions. Its robust design ensures longevity even with frequent use.

Aerospace applications benefit from 811/1060 M Bearing’s precision in landing gear systems, where reliability is critical. The high static load capacity makes it a dependable choice for safety-focused components.

Built for Heavy-Duty Use: 811/1060 M Bearing
811/1060 M Bearing excels in steel mills, where it supports rolling mills under extreme pressure. The chrome steel rollers and washers provide excellent wear resistance over time.

Its large size and weight make it ideal for applications where space isn’t a constraint but durability is paramount. The 200 rpm max speed is well-suited for slow, high-torque machinery.
