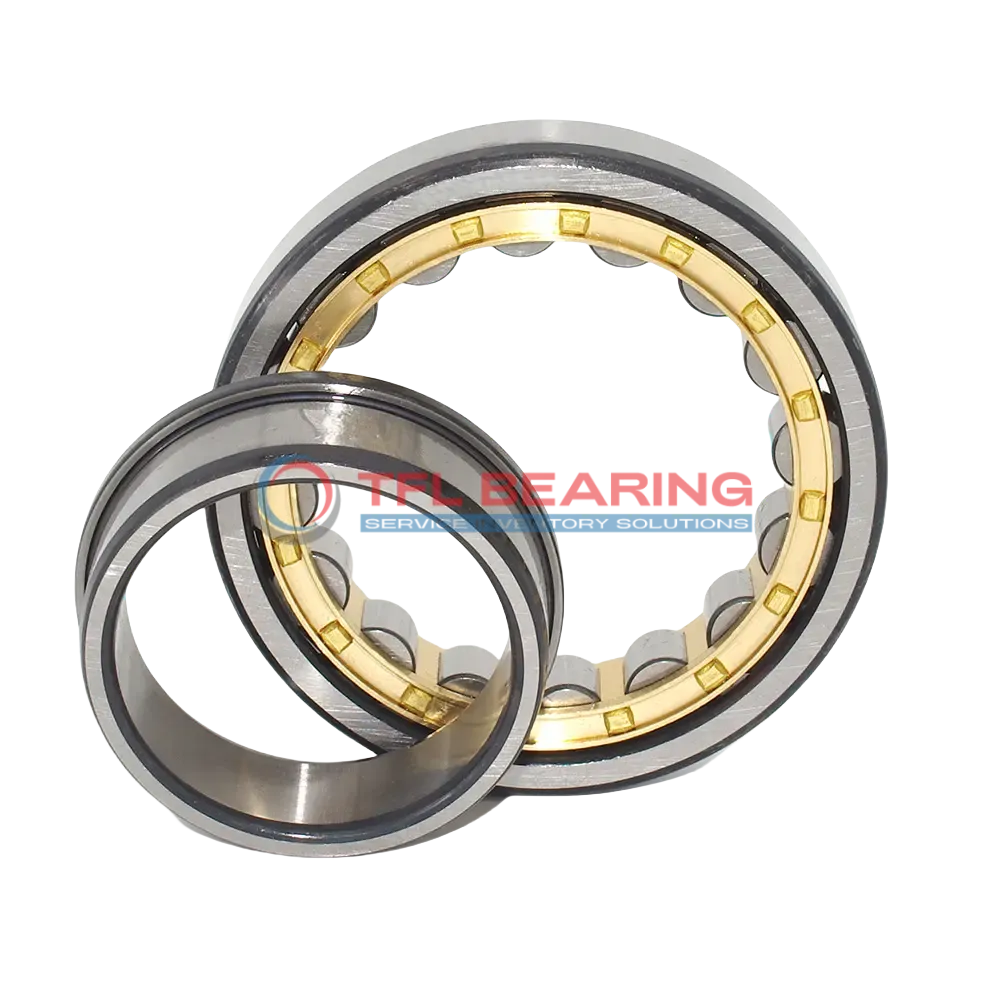

Single Row Cylindrical Roller Bearings With Inner Ring NJ 1060 MA

Single Row Cylindrical Roller Bearings With Inner Ring NJ 1060 MA

The NJ 1060 MA is a single row cylindrical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 193050 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage design ensures durability, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gear systems where radial and axial loads are present.

Weighing 46kg, it’s robust and reliable for large-scale operations. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 1060 MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 74 mm
  • Width Tolerance -0.35mm to 0
  • Shoulder Dia Of Inner Ring 356 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 193050 lbf
  • Static Radial Load 308250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 46 kg
  • Shoulder Dia Of Outer Ring 402 mm
  • Raceway Diameter Of Inner Ring 340 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 1060 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 1060 MA Bearing

NJ 1060 MA Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 193050 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2000 rpm, it balances durability and efficiency.

NJ 1060 MA Bearing works in temperatures from -30° to 110°C, making it suitable for various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise dimensions and tolerances of NJ 1060 MA Bearing ensure smooth operation and easy installation.
Its single-row cylindrical design provides excellent radial load capacity while maintaining compactness.

Application

Industrial Uses of NJ 1060 MA Bearing
NJ 1060 MA Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds, making it suitable for demanding environments.

Where Is NJ 1060 MA Bearing Used?
In automotive applications, NJ 1060 MA Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing and high load capacity make it a reliable choice for heavy vehicles and transport equipment.

Built for Heavy-Duty Use: NJ 1060 MA Bearing
NJ 1060 MA Bearing excels in wind turbines and mining equipment, where its ability to handle radial and axial loads is crucial. The open design allows for easy lubrication, extending its service life in harsh conditions.

Automotive vs Aerospace: Applications of NJ 1060 MA Bearing
In automotive settings, NJ 1060 MA Bearing is ideal for transmissions and axles, while in aerospace, it supports auxiliary systems requiring precision and durability. Its temperature range and load capacity make it versatile across industries.

Perfect Fit for Automation: NJ 1060 MA Bearing
NJ 1060 MA Bearing is a great choice for robotic arms and automated production lines, where its high-speed capability and stability are key. The chrome steel rollers ensure consistent performance in repetitive motion applications.
