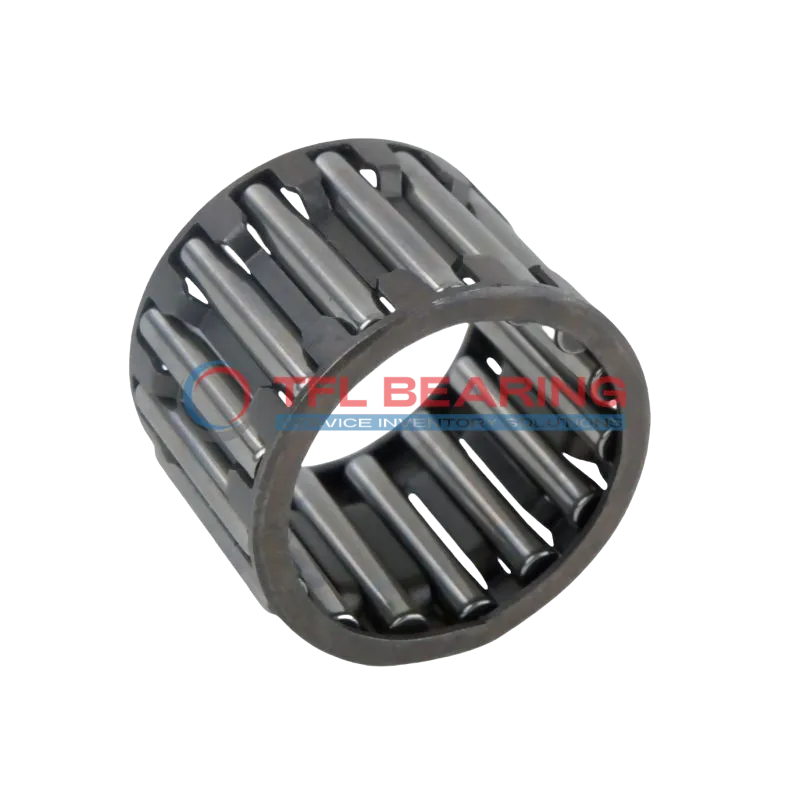

Needle Roller And Cage Assemblies K58X65X36-ZW

Needle Roller And Cage Assemblies K58X65X36-ZW

The K58X65X36-ZW is a double-row needle roller and cage assembly with a 58mm bore and 65mm outer diameter, crafted from sturdy steel. It handles radial loads up to 11025 lbf and operates smoothly at speeds up to 8000 RPM.
Its steel cage and needle rollers ensure durability, while the compact 36mm width fits snugly in tight spaces. The assembly performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gear pumps or automotive transmissions where space and load capacity are key.
Weighing just 127g, it’s lightweight yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K58X65X36-ZW
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 58 mm
  • Outer Dia 65 mm
  • Width 36 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Double Row
  • Series K-ZW Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 11025 lbf
  • Static Radial Load 24075 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 8000 rpm
  • Weight 127 g
Needle Roller And Cage Assemblies K58X65X36-ZW dimension drawing
Download DWG Download PDF

Features

How Does K58X65X36-ZW Bearing Handle Heavy Loads?
K58X65X36-ZW Bearing features a double-row needle roller design, providing high load capacity and stability.
Its steel cage and needles ensure durability, even under dynamic radial loads up to 11025 lbf.
The compact construction allows for efficient space utilisation while maintaining robust performance.
With a maximum speed of 8000 rpm, it suits high-speed applications without compromising reliability.
K58X65X36-ZW Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its compliant design meets RoHS standards, making it environmentally friendly.

Application

Industrial Uses of K58X65X36-ZW Bearing
K58X65X36-ZW Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The steel cage and needles ensure durability even in demanding environments.
What Makes K58X65X36-ZW Bearing a Preferred Choice?
In automotive transmissions, K58X65X36-ZW Bearing provides smooth operation due to its precise needle roller arrangement. Its compact size and high load capacity make it ideal for space-constrained applications.
Perfect Fit for Automation: K58X65X36-ZW Bearing
K58X65X36-ZW Bearing is well-suited for robotic arms and automated assembly lines, where its high-speed capability and reliability are key. The metric dimensions ensure easy integration with standard components.
Medical vs Industrial: Where K58X65X36-ZW Bearing Excels
While K58X65X36-ZW Bearing is robust enough for industrial gearboxes, its precision also benefits medical devices like dental drills. The steel construction meets hygiene and performance standards in both fields.
Where to Use K58X65X36-ZW Bearing
K58X65X36-ZW Bearing works well in household appliances, such as washing machines, where its low maintenance and long lifespan are appreciated. The double-row design handles vibrations effectively for quieter operation.
