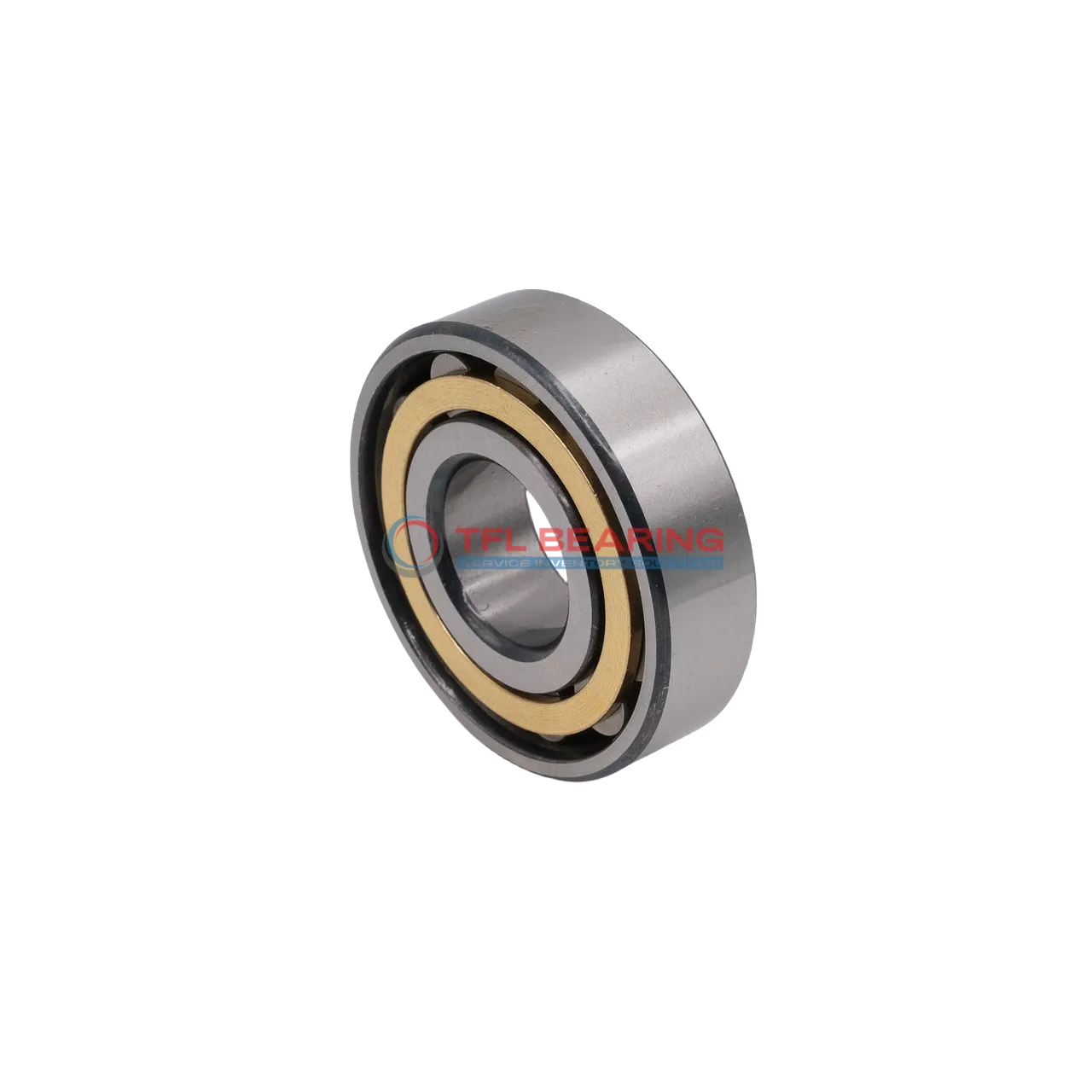

Single Row Cylindrical Roller Bearings With Inner Ring 316200

Single Row Cylindrical Roller Bearings With Inner Ring 316200

The 316200 is a single-row cylindrical roller bearing with a large 850mm bore and 1030mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 210375 lbf and works well with grease or oil lubrication.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing can handle axial displacement up to 7.5mm and operates in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.

Weighing 115kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 316200
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 850 mm
  • Bore Dia Tolerance -0.10 mm to 0
  • Outer Dia 1030 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 74 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 917 mm
  • Raceway Diameter Of Outer Ring(E) 978 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 7.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 210375 lbf
  • Static Radial Load 477000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 115 kg
Single Row Cylindrical Roller Bearings With Inner Ring 316200 dimension drawing
Download DWG Download PDF

Features

Performance Features of 316200 Bearing

316200 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 210375 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and enhancing durability.
With a width of 74 mm, it provides stability while maintaining a compact design.

316200 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of 316200 Bearing
316200 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

Where Is 316200 Bearing Used?
You’ll often find 316200 Bearing in wind turbines and mining equipment, thanks to its robust construction and ability to withstand combined loads. Its large bore size makes it ideal for heavy-duty applications.

Built for Heavy-Duty Use: 316200 Bearing
316200 Bearing excels in industrial fans and pumps, where its chrome steel rollers provide long-lasting performance. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 316200 Bearing
In automotive settings, 316200 Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric sizing ensures compatibility across various industries.

Essential Roles of 316200 Bearing
316200 Bearing is a go-to choice for paper manufacturing machines, where its high static radial load capacity ensures reliability. The grease or oil lubrication options make it versatile for different environments.
