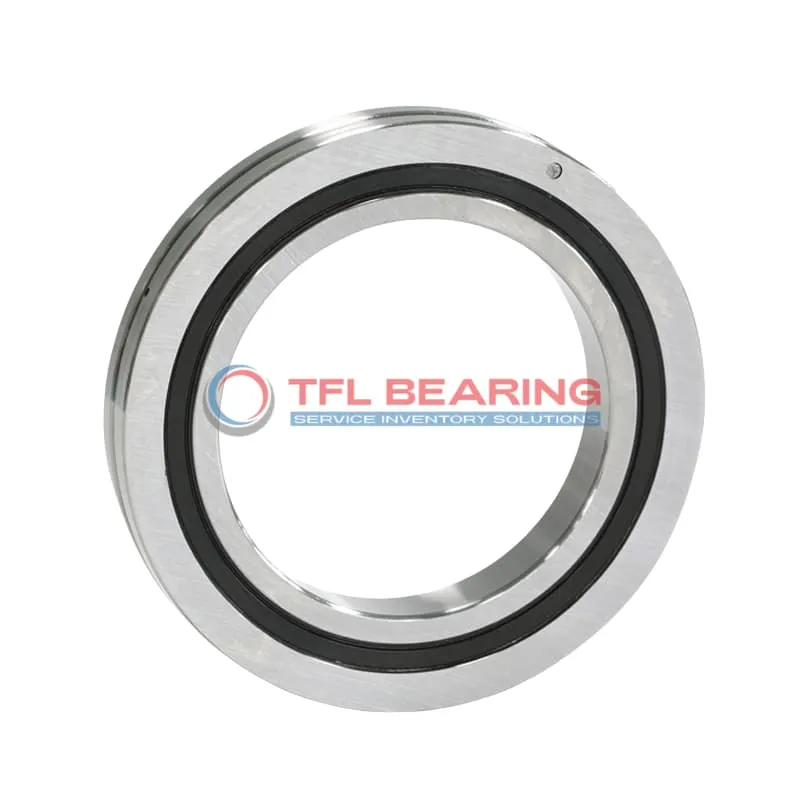

CRBH Crossed Roller Bearings CRBHV6013A

CRBH Crossed Roller Bearings CRBHV6013A

The CRBHV6013A is a crossed roller bearing with a compact size of 60mm bore, 90mm outer diameter, and 13mm width, made from sturdy steel for reliable performance. It handles combined loads with a basic load rating of 18.8 kN, making it suitable for various industrial applications.

Its open design allows for easy lubrication, while the press-fit mounting ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C, adapting well to different working conditions.

With an ABEC5 rating (and options for ABEC7/9), it offers precision for applications requiring high accuracy. Ideal for use in robotics, machine tools, or medical equipment where space and performance are key.

Weighing just 0.33kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and efficient choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV6013A
  • Brand TFL
  • Size 60 mm x 90 mm x 13 mm
  • Bore Dia 60 mm
  • Outer Dia 90 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 66 mm
  • Mounting Dimensions(Da) 84 mm
  • Basic Load Rating C 18 .800 kN
  • Basic Load Rating Co 24.300 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.33 Kg

Features

How Does CRBHV6013A Bearing Handle Combined Loads?

CRBHV6013A Bearing is designed with a crossed roller arrangement, providing excellent stability under combined loads.
Its steel rings and rollers offer a basic load rating of 18.800 kN, ensuring reliable performance in various applications.

The compact 13 mm width makes CRBHV6013A Bearing suitable for space-constrained installations.
With a temperature range of 0-230°F, it performs well in diverse operating conditions.

CRBHV6013A Bearing requires lubrication for optimal performance and longevity.
Its press-fit mounting simplifies installation, reducing setup time and effort.

Application

Common Applications of CRBHV6013A Bearing
CRBHV6013A Bearing is widely used in industrial automation, especially in robotic arms and precision machinery, where its crossed roller design ensures smooth rotation under combined loads. The compact 13mm width makes it ideal for space-constrained applications.

In medical imaging devices, CRBHV6013A Bearing provides stable support for rotating components, thanks to its steel construction and ABEC5 precision. The open design allows for easy lubrication, extending service life in high-use environments.

For automotive applications, CRBHV6013A Bearing excels in steering systems and electric vehicle components, where its press-fit mounting ensures secure installation. The metric sizing also simplifies integration with European and Asian vehicle designs.

In consumer electronics, CRBHV6013A Bearing can be found in high-end printers and 3D printers, where its low friction and durability enhance performance. The temperature range of 0-230°F ensures reliability in various operating conditions.
