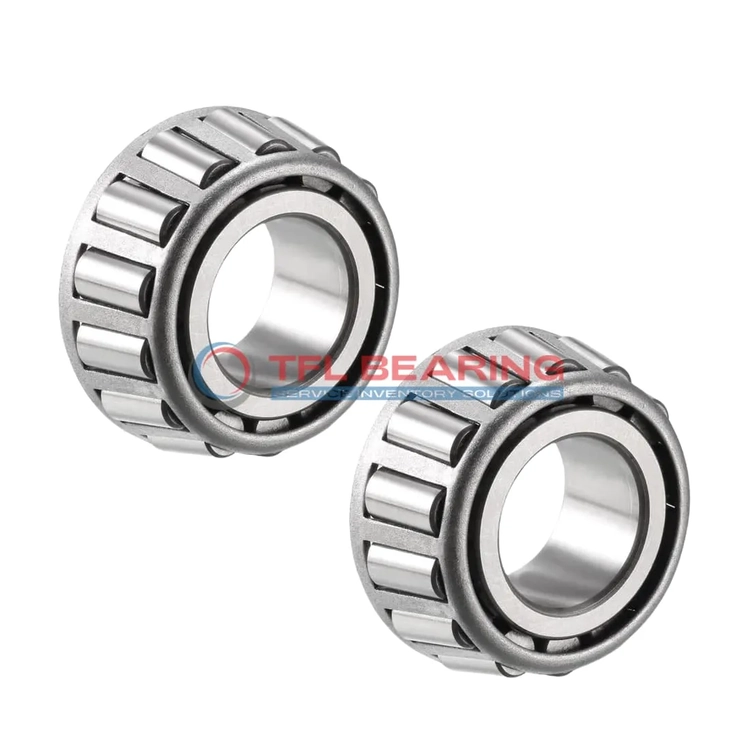

TS (Single Row Tapered Roller Bearings) (Imperial) HM926749-HM926710V

TS (Single Row Tapered Roller Bearings) (Imperial) HM926749-HM926710V

The HM926749-HM926710V is a single-row tapered roller bearing with a 5.0312″ bore and 9″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 132,000 lbf radially and 43,100 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where high load capacity is needed.

Weighing 18.8 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM926749-HM926710V
  • Brand TFL
  • Interchangeable Timken
  • Size 5.0312" x 9" x 2.125"
  • Bore Dia 5.0312"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.946"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.57"
  • Cone Backface Backing Diameter 6.14"
  • Cup Frontface Backing Diameter 8.64"
  • Cup Backface Backing Diameter 7.87"
  • Cage Cone Frontface Clearance 0.29"
  • Cage Cone Backface Clearance 0.31"
  • Effective Center Location 0.53"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM926749
  • Cup Part Number HM926710V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM926700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 132000 lbf
  • Static Radial Load 151000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 34200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 43100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 18.8 lb

Features

Performance Features of HM926749-HM926710V Bearing

HM926749-HM926710V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 132,000 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of HM926749-HM926710V Bearing provides effective load distribution, reducing wear and extending service life.
With a standard radial clearance, it balances precision and durability in various operating conditions.

HM926749-HM926710V Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, ensuring smooth operation even under high stress.

HM926749-HM926710V Bearing requires lubrication for optimal performance, reducing friction and heat generation.
The ABEC-1 rating ensures consistent quality and reliability in industrial applications.

Application

Industrial Uses of HM926749-HM926710V Bearing
HM926749-HM926710V Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM926749-HM926710V Bearing Used?
In automotive applications, HM926749-HM926710V Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and robust load capacity. Its compatibility with Timken models makes it a versatile choice for repairs.

Built for Heavy-Duty Use: HM926749-HM926710V Bearing
This bearing excels in industrial gearboxes, where its single-row design simplifies installation and maintenance. The steel cage adds stability, making it reliable for high-load scenarios.

Automotive vs Aerospace: Applications of HM926749-HM926710V Bearing
While HM926749-HM926710V Bearing is popular in truck axles, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: HM926749-HM926710V Bearing
In automated production lines, HM926749-HM926710V Bearing supports conveyor rollers with smooth operation. Its standard radial clearance adapts well to varying speeds and loads.
