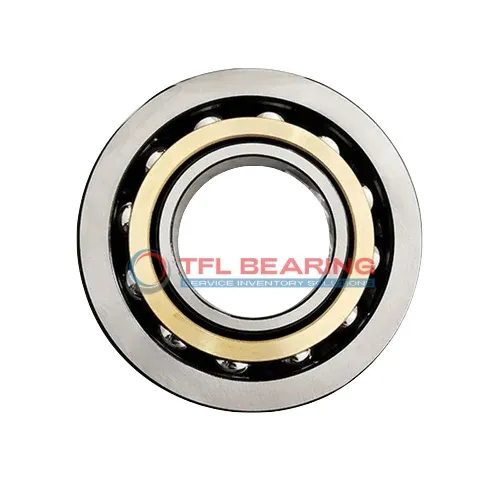

Single Row Angular Contact Ball Bearings (General) 7419 CBM

Single Row Angular Contact Ball Bearings (General) 7419 CBM

The 7419 CBM is a single-row angular contact ball bearing with a 95mm bore and 250mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 54450 lbf and operates smoothly at speeds up to 3400 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication and maintenance.

This bearing is suitable for temperatures ranging from -30°C to 110°C and meets P6 tolerance standards. It’s interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty applications like gearboxes or industrial machinery, where reliable performance under angular loads is essential. Weighing 13.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7419 CBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 55 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 144.69 mm
  • Internal Diameter On Outer Ring 199.45 mm
  • Chamfer Dimension 4 mm
  • Distance Pressure Point (a) 97 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 54450 lbf
  • Static Radial Load 53100 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 3400 rpm
  • Weight 13.5 kg
Single Row Angular Contact Ball Bearings (General) 7419 CBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7419 CBM Bearing

7419 CBM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
The chrome steel rings and balls provide strong resistance to wear, ensuring long-term reliability.

With a dynamic radial load capacity of 54450 lbf, it performs well in demanding applications.
The brass cage maintains ball alignment, reducing friction and extending operational life.

7419 CBM Bearing operates smoothly at speeds up to 3,400 rpm, balancing efficiency and durability.
Its P6 tolerance class ensures precise performance, making it suitable for high-accuracy tasks.

The open design allows for easy lubrication, maintaining optimal performance over time.
Weighing 13.5 kg, it is robust yet manageable for industrial use.

Application

Industrial Uses of 7419 CBM Bearing
7419 CBM Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high-speed conditions.

What Makes 7419 CBM Bearing a Preferred Choice?
In automotive applications, 7419 CBM Bearing is ideal for wheel hubs and transmission systems, thanks to its high load capacity and precision. The P6 tolerance class guarantees consistent performance in demanding environments.

Built for Heavy-Duty Use: 7419 CBM Bearing
For wind turbines and other renewable energy equipment, 7419 CBM Bearing offers reliable performance with its chrome steel construction. Its open design allows for easy lubrication, extending service life in harsh conditions.

Automotive vs Aerospace: Applications of 7419 CBM Bearing
In automotive systems, 7419 CBM Bearing supports high-load components like differentials, while in aerospace, it’s used in auxiliary systems where precision and durability are key. The metric sizing ensures compatibility across various industries.

Practical Applications of 7419 CBM Bearing
7419 CBM Bearing is a solid choice for machine tools, where its 40° contact angle provides stability during high-precision operations. The lubricated design reduces friction, making it suitable for continuous use.
