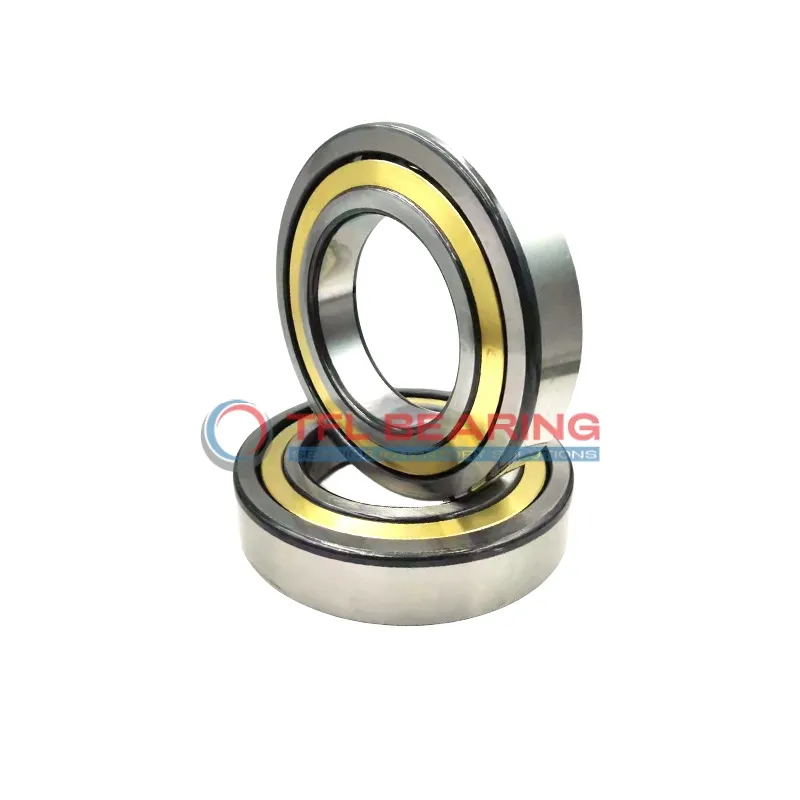

Single Row Angular Contact Ball Bearings (General) 7412 BM

Single Row Angular Contact Ball Bearings (General) 7412 BM

The 7412 BM is a single-row angular contact ball bearing with a 60mm bore and 150mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 26775 lbf dynamically.

Designed for smooth operation at speeds up to 7500 RPM, the open structure allows easy lubrication. The brass cage enhances durability while reducing friction during high-speed use.

With a P6 tolerance class, it offers reliable precision for industrial applications. Suitable for machine tools or pumps where angular loads are present.

Weighing 3.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7412 BM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 95.15 mm
  • External Diameter On Inner Ring (Small Side Face) 77.95 mm
  • Internal Diameter On Outer Ring 116.46 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 62 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 26775 lbf
  • Static Radial Load 19462 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 3.3 kg
  • Price（$） 152.5
Single Row Angular Contact Ball Bearings (General) 7412 BM dimension drawing
Download DWG Download PDF

Features

How Does 7412 BM Bearing Support Angular Contact Loads?

7412 BM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

The dynamic radial load capacity of 26775 lbf makes it suitable for demanding applications.
With a maximum speed of 7,500 rpm, it balances performance and durability.

7412 BM Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its P6 tolerance class ensures precision and reliability in various industrial uses.

Application

Industrial Uses of 7412 BM Bearing
7412 BM Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds.

In automotive applications, 7412 BM Bearing fits well in wheel hubs and transmissions, thanks to its durable chrome steel construction. The 40° contact angle provides stability during cornering and acceleration.

For automation systems, 7412 BM Bearing supports robotic arms and precision equipment, where its P6 tolerance class ensures accurate movement. The open seal design allows for easy lubrication and maintenance.

Key Fields for 7412 BM Bearing
7412 BM Bearing is ideal for conveyor systems, where its high dynamic load capacity keeps operations running smoothly. The 150 mm outer diameter offers a sturdy fit for heavy-duty frames.

In medical imaging devices, 7412 BM Bearing’s reliable performance ensures minimal vibration during scans. The temperature range of -30° to 110°C makes it suitable for various clinical environments.
