Single Row Angular Contact Ball Bearings (General) 7319 BEGAY

Single Row Angular Contact Ball Bearings (General) 7319 BEGAY

The 7319 BEGAY is a single-row angular contact ball bearing with a 95mm bore and 200mm outer diameter, designed for angular loads. Made from chrome steel, it handles radial loads up to 40500 lbf and operates smoothly at speeds up to 4300 RPM.

Its 40° contact angle provides stable performance under combined loads, while the brass cage ensures durability. The open design allows for easy lubrication and maintenance.

This bearing is suitable for applications like pumps or gearboxes where angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 6.05kg, it’s a robust choice for industrial machinery. Compliant with RoHS and REACH, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7319 BEGAY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 45 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 136.2 mm
  • External Diameter On Inner Ring (Small Side Face) 114.92 mm
  • Internal Diameter On Outer Ring 161.25 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 84 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 40500 lbf
  • Static Radial Load 36675 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 6.05 kg
  • Price（$） 137.33

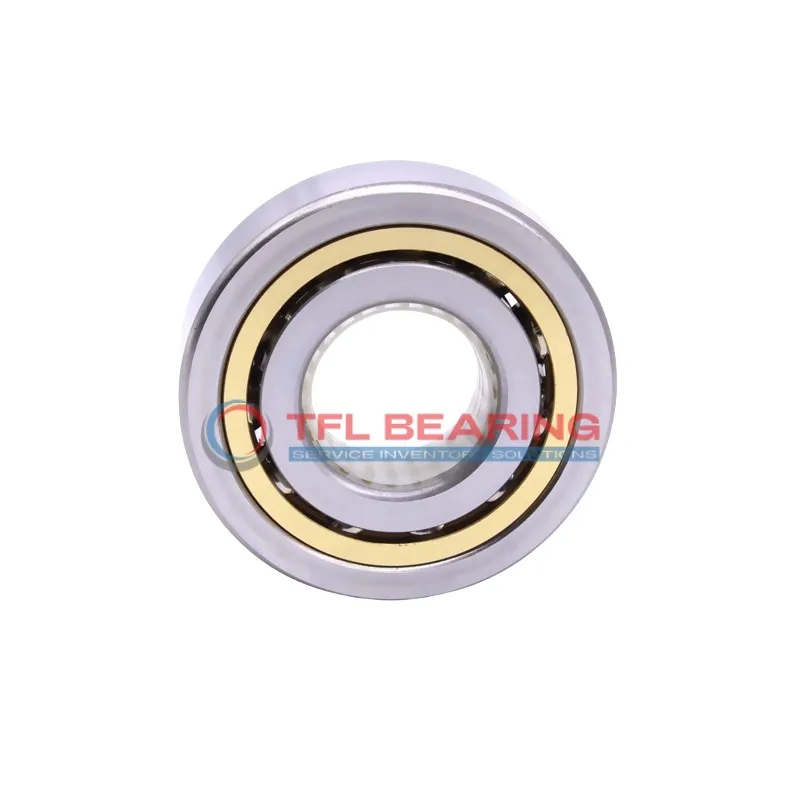

Single Row Angular Contact Ball Bearings (General) 7319 BEGAY dimension drawing
Download DWG Download PDF

Features

How Is 7319 BEGAY Bearing Engineered for Reliability?

7319 BEGAY Bearing features a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 40500 lbf.

The brass cage maintains ball alignment, reducing friction and wear during high-speed operation.
With a maximum speed of 4,300 rpm, it delivers consistent performance in demanding conditions.

Designed for temperatures from -30° to 110°C, 7319 BEGAY Bearing adapts to varied environments.
Its P6 tolerance class ensures precision, making it suitable for applications requiring high accuracy.

Application

Industrial Uses of 7319 BEGAY Bearing
7319 BEGAY Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined loads.
The brass cage ensures smooth operation even at moderate speeds, making it suitable for continuous use in demanding environments.

How Does 7319 BEGAY Bearing Improve Performance?
In automotive applications, 7319 BEGAY Bearing enhances stability in wheel hubs and transmissions, thanks to its 40° contact angle.
Its chrome steel construction provides durability, while the P6 tolerance class ensures precision in high-performance vehicles.

Perfect Fit for Automation: 7319 BEGAY Bearing
7319 BEGAY Bearing works well in robotic arms and automated assembly lines, where precise angular load handling is essential.
The lubricated design reduces friction, extending service life in high-cycle operations.

Medical vs Industrial: Where 7319 BEGAY Bearing Excels
In medical imaging devices, 7319 BEGAY Bearing offers reliable performance due to its consistent radial load capacity.
For industrial gearboxes, its robust construction and brass cage make it a dependable choice for heavy-duty applications.

Where Is 7319 BEGAY Bearing Used?
You’ll often find 7319 BEGAY Bearing in wind turbine gearboxes, where its ability to handle axial and radial loads is crucial.
The open seal design allows for easy relubrication, ensuring long-term performance in remote installations.
