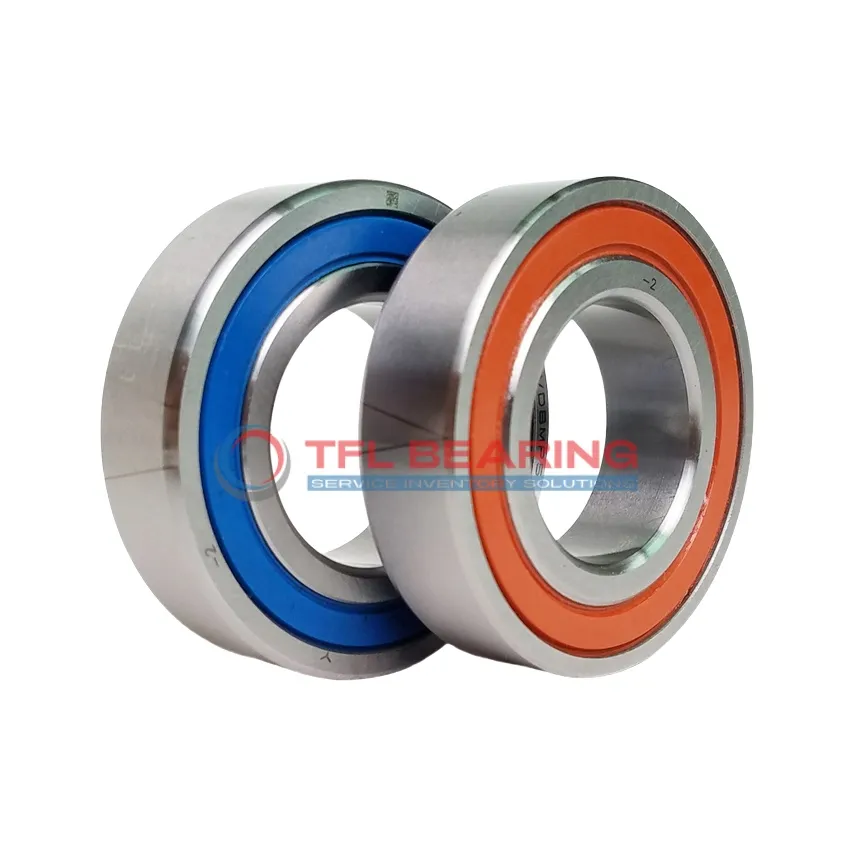

Single Row Angular Contact Ball Bearings (General) 7306 BE-2RZP

Single Row Angular Contact Ball Bearings (General) 7306 BE-2RZP

The 7306 BE-2RZP is a single-row angular contact ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7312 lbf and operates smoothly at speeds up to 9500 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle efficiently manages combined radial and axial loads.

This bearing suits moderate-speed applications like pumps or electric motors where reliability is key. It works in temperatures from -30°C to 110°C and meets P6 precision standards.

Weighing 0.35kg, it’s a robust yet compact solution for industrial machinery. Compliant with RoHS and REACH regulations for safe use across various sectors.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7306 BE-2RZP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 19 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 46.5 mm
  • External Diameter On Inner Ring (Small Side Face) 37.9 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 31 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7312 lbf
  • Static Radial Load 4342 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.35 kg
Single Row Angular Contact Ball Bearings (General) 7306 BE-2RZP dimension drawing
Download DWG Download PDF

Features

Why Choose 7306 BE-2RZP Bearing for Precision Tasks?

7306 BE-2RZP Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The sealed design of 7306 BE-2RZP Bearing protects against contaminants, extending its service life.
With a maximum speed of 9,500 rpm, it offers reliable performance in high-speed operations.

Nylon cage in 7306 BE-2RZP Bearing reduces friction and noise, making it suitable for precision instruments.
Its P6 tolerance class ensures consistent performance and accuracy in various applications.

7306 BE-2RZP Bearing operates efficiently within a temperature range of -30° to 110°C.
This makes it versatile for use in different environmental conditions.

Application

Industrial Uses of 7306 BE-2RZP Bearing
The 7306 BE-2RZP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The sealed construction keeps contaminants out, ensuring longer service life in dusty workshops.

In automotive applications, 7306 BE-2RZP Bearing fits well in wheel hubs and transmissions, thanks to its 40° contact angle for stability. Its nylon cage reduces noise, making it ideal for passenger vehicles.

For robotics, 7306 BE-2RZP Bearing offers precise movement in robotic arms, with its P6 tolerance ensuring smooth operation. The lubricated design minimises maintenance, perfect for automated production lines.

In household appliances like washing machines, 7306 BE-2RZP Bearing provides reliable performance under constant vibration. Its chrome steel rings and balls withstand daily wear, keeping appliances running quietly.
