Stainless Steel Deep Groove Ball Bearings W 61906-2Z

Stainless Steel Deep Groove Ball Bearings W 61906-2Z

The W 61906-2Z is a stainless steel deep groove ball bearing with a 30mm bore and 47mm outer diameter, designed for radial loads. Its compact 9mm width makes it suitable for tight spaces.

This shielded bearing handles dynamic radial loads up to 1403 lbf and spins smoothly at speeds up to 15000 RPM. The all-stainless steel construction offers good corrosion resistance.

Pre-lubricated with grease, it requires minimal maintenance and performs well in temperatures from -30°C to 120°C. The P0 tolerance ensures reliable operation for general applications.

Ideal for food processing equipment or marine environments where rust resistance is important. Its lightweight design (0.048kg) and SKF interchangeability make it a practical choice for replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61906-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1403 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.048 kg

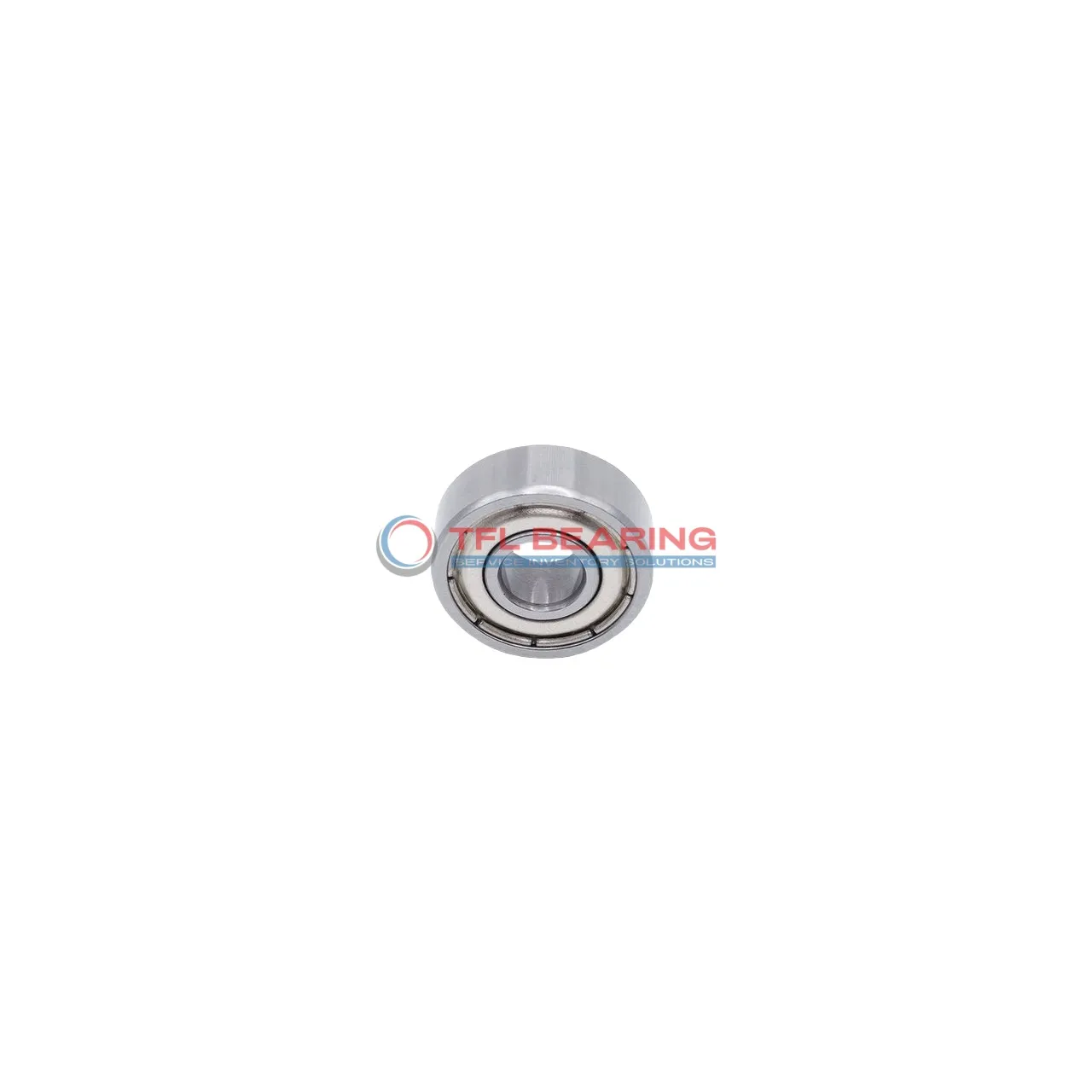

Stainless Steel Deep Groove Ball Bearings W 61906-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 61906-2Z Bearing for Precision Tasks?

W 61906-2Z Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its shielded design protects against contaminants while maintaining smooth operation.

The bearing handles dynamic radial loads up to 1403 lbf, making it suitable for precise applications.
With a maximum speed of 15,000 rpm, it ensures efficient performance in various conditions.

W 61906-2Z Bearing’s compact size (30 mm×47 mm×9 mm) allows for easy integration into tight spaces.
Its grease lubrication reduces maintenance needs, providing long-lasting reliability.

Application

Common Applications of W 61906-2Z Bearing
W 61906-2Z Bearing is widely used in industrial equipment like conveyor systems and pumps, where its shielded design helps keep contaminants out. The stainless steel construction ensures it performs well even in humid or corrosive environments.

In automotive applications, W 61906-2Z Bearing fits well in electric motors and small gearboxes, offering reliable radial load support. Its compact size and metric dimensions make it a versatile choice for various vehicle components.

For home appliances, W 61906-2Z Bearing works smoothly in fans and small electric tools, thanks to its grease lubrication and low maintenance needs. The shielded seals also help extend its lifespan in everyday use.

How Does W 61906-2Z Bearing Support High-Speed Operations?
W 61906-2Z Bearing handles high-speed rotations effortlessly, making it ideal for precision machinery like dental drills or small spindles. The stainless steel balls and cage reduce friction, ensuring consistent performance.

In robotics, W 61906-2Z Bearing is often found in joint mechanisms, where its radial load capacity and smooth operation are key. The shielded design also protects against dust, which is common in automated environments.
