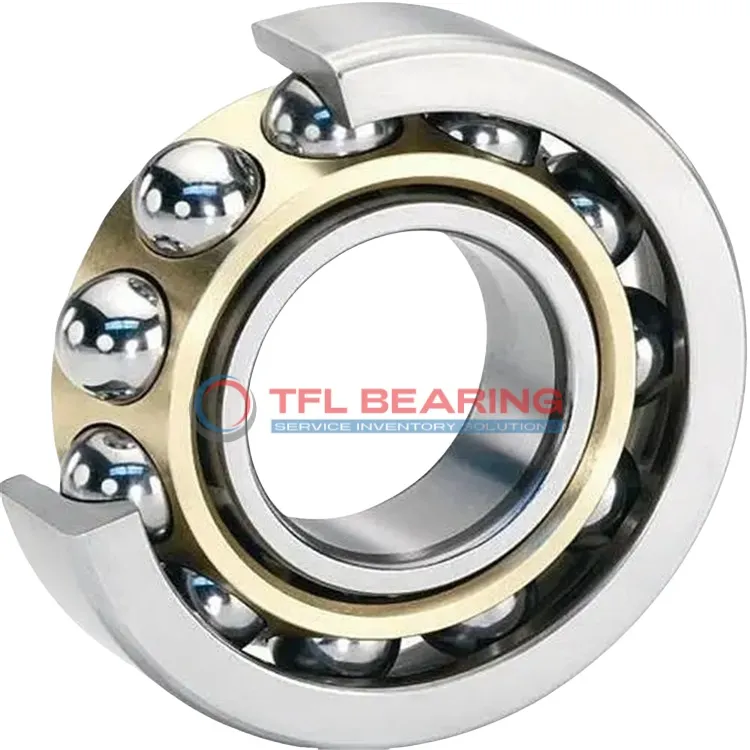

Single Row Angular Contact Ball Bearings (General) 7260 BCBM

Single Row Angular Contact Ball Bearings (General) 7260 BCBM

The 7260 BCBM is a single-row angular contact ball bearing with a 300mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 124425 lbf and operates at speeds up to 1300 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage adds durability, while the open design allows for easy lubrication.

This bearing suits applications like heavy machinery or industrial gearboxes where angular loads are common. It’s interchangeable with SKF models, making replacements straightforward.

Weighing 85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7260 BCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 85 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 395.5 mm
  • External Diameter On Inner Ring (Small Side Face) 354.1 mm
  • Internal Diameter On Outer Ring 450.5 mm
  • Chamfer Dimension 5 mm
  • Distance Pressure Point (a) 219 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 124425 lbf
  • Static Radial Load 209250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1300 rpm
  • Weight 85 kg
Single Row Angular Contact Ball Bearings (General) 7260 BCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7260 BCBM Bearing

7260 BCBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability under high dynamic radial loads up to 124425 lbf.

The brass cage maintains ball alignment, reducing friction and wear during operation.
With a maximum speed of 1,300 rpm, it balances performance and longevity in demanding applications.

7260 BCBM Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) ensures consistent precision in industrial settings.

The open design allows for easy lubrication, enhancing maintenance convenience.
Weighing 85 kg, it’s built for robust performance in heavy-duty machinery.

Application

Industrial Uses of 7260 BCBM Bearing
The 7260 BCBM Bearing is commonly used in heavy industrial machinery, such as large gearboxes and pumps, where its angular contact design efficiently handles combined radial and axial loads.
Its brass cage and chrome steel construction ensure durability in high-load environments, making it suitable for continuous operation.

Where Is 7260 BCBM Bearing Used?
In wind turbines, the 7260 BCBM Bearing supports the main shaft, providing stability under varying wind conditions.
The P6 tolerance class ensures precise alignment, which is crucial for maintaining efficiency in renewable energy applications.

Built for Heavy-Duty Use: 7260 BCBM Bearing
The 7260 BCBM Bearing excels in mining equipment, where its robust design withstands harsh conditions and heavy loads.
Its lubricated construction reduces friction, extending service life even in dusty or high-temperature environments.

Automotive vs Aerospace: Applications of 7260 BCBM Bearing
In automotive systems, the 7260 BCBM Bearing is found in large truck transmissions, offering reliable performance under high torque.
For aerospace applications, its precision and load capacity make it suitable for auxiliary power units and landing gear mechanisms.

Practical Applications of 7260 BCBM Bearing
The 7260 BCBM Bearing is ideal for paper manufacturing machinery, where its angular contact design handles high-speed rollers.
Its metric dimensions and interchangeable compatibility with SKF bearings simplify maintenance and replacement in global industrial settings.
