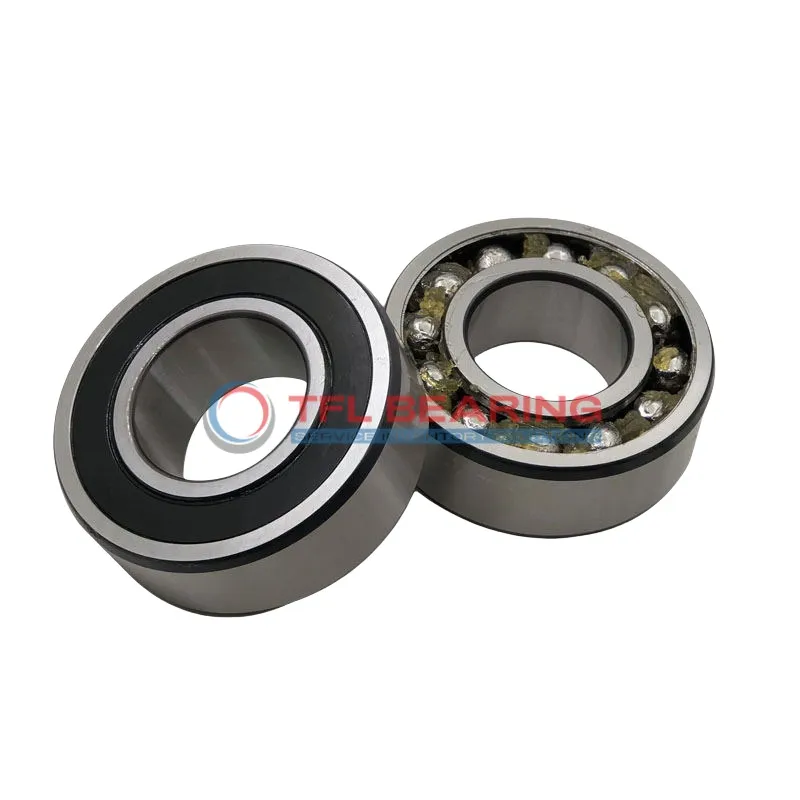

Self Aligning Ball Bearings 2204E-2RS

Self Aligning Ball Bearings 2204E-2RS

The 2204E-2RS is a self-aligning ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2858 lbf and runs smoothly at speeds up to 10,000 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, making maintenance hassle-free. The nylon cage reduces friction and noise, ensuring quiet operation.

This bearing is pre-lubricated and works well in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for applications like conveyor systems or electric motors where misalignment might occur. Weighing just 0.14kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2204E-2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 25.9 mm
  • Internal Diameter On Outer Ring 41.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.14 kg
  • Price（$） 33.37
Self Aligning Ball Bearings 2204E-2RS dimension drawing
Download DWG Download PDF

Features

Why Choose 2204E-2RS Bearing for Precision Tasks?

2204E-2RS Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 2858 lbf makes it suitable for high-performance applications.

The sealed construction of 2204E-2RS Bearing protects against contaminants, enhancing durability.
With a maximum speed of 10,000 rpm, it delivers smooth operation in demanding conditions.

2204E-2RS Bearing’s nylon cage reduces friction and noise, ideal for precision instruments.
Its temperature range of -30° to 110°C ensures reliable performance in varied environments.

Application

Industrial Uses of 2204E-2RS Bearing
2204E-2RS Bearing is commonly used in conveyor systems, where its self-aligning feature helps compensate for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2204E-2RS Bearing Used?
You’ll often find 2204E-2RS Bearing in electric motors, where its double-row construction handles radial loads efficiently. The nylon cage reduces friction, making it a quiet option for household appliances like washing machines.

Built for Heavy-Duty Use: 2204E-2RS Bearing
2204E-2RS Bearing works well in agricultural machinery, where rough conditions demand durability. Its chrome steel rings and lubricated design provide reliable performance even under heavy loads.

Automotive vs Industrial: Applications of 2204E-2RS Bearing
In automotive applications, 2204E-2RS Bearing supports components like alternators, thanks to its radial load capacity. For industrial pumps, its sealed construction prevents lubricant leakage, reducing maintenance needs.
