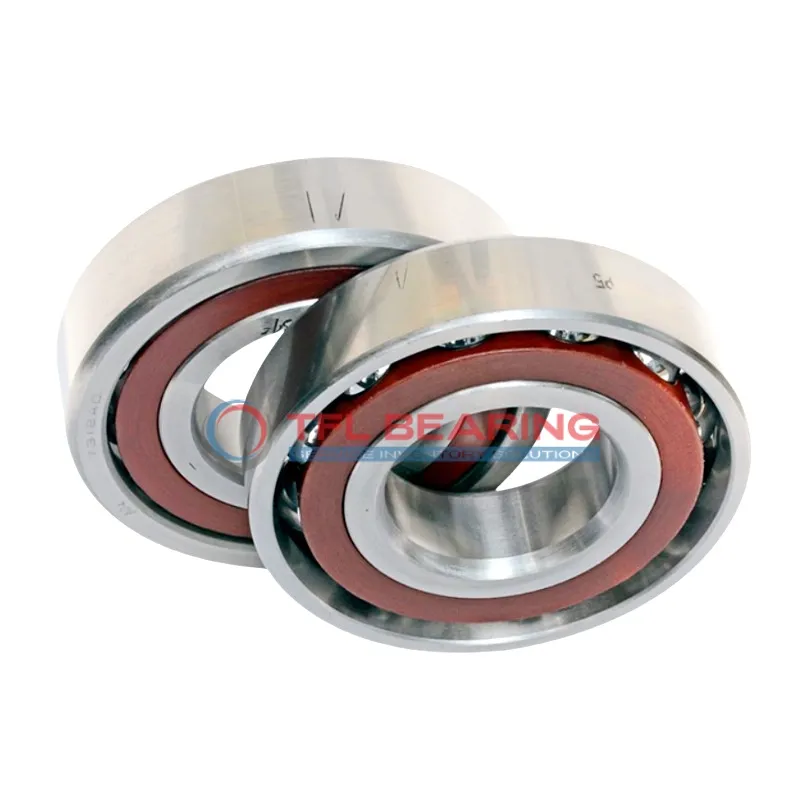

Single Row Angular Contact Ball Bearings (General) 7221 BECBP

Single Row Angular Contact Ball Bearings (General) 7221 BECBP

The 7221 BECBP is a single-row angular contact ball bearing with a 105mm bore and 190mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads, supporting up to 35100 lbf dynamically.

Designed for high-speed use, it spins smoothly at 4300 RPM and operates in temperatures from -30°C to 110°C. The open seal allows easy lubrication, while the nylon cage reduces friction for quieter performance.

This bearing meets P6 (ABEC-3) precision standards and is interchangeable with SKF models. Ideal for machinery like pumps or gearboxes where precise angular load support is needed.

Weighing 3.95kg, it balances durability with manageable handling. Compliant with RoHS and REACH regulations for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7221 BECBP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 36 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 137.95 mm
  • External Diameter On Inner Ring (Small Side Face) 121.17 mm
  • Internal Diameter On Outer Ring 159.1 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 80 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 33750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 3.95 kg
  • Price（$） 85.38
Single Row Angular Contact Ball Bearings (General) 7221 BECBP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7221 BECBP Bearing

7221 BECBP Bearing is built with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls provide strength, while the nylon cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 35,100 lbf, 7221 BECBP Bearing is suitable for demanding applications.
Its P6 tolerance class (ABEC-3) ensures precision and reliability in performance.

The open design allows for easy lubrication, maintaining efficiency over time.
7221 BECBP Bearing operates within a temperature range of -30° to 110°C, adapting to various environments.

Weighing 3.95 kg, it balances durability and ease of handling.
The 4,300 rpm maximum speed makes it a versatile choice for industrial use.

Application

Industrial Uses of 7221 BECBP Bearing
The 7221 BECBP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations in industrial settings.

Where Is 7221 BECBP Bearing Used?
You’ll find the 7221 BECBP Bearing in automotive transmissions, supporting smooth gear shifts with its angular contact design. Its chrome steel construction ensures durability even under heavy loads.

Built for Heavy-Duty Use: 7221 BECBP Bearing
In conveyor systems, the 7221 BECBP Bearing excels due to its robust build and precise tolerance class. The lubricated design reduces friction, extending the bearing’s lifespan in demanding environments.

Automotive vs Aerospace: Applications of 7221 BECBP Bearing
While the 7221 BECBP Bearing is popular in car wheel hubs, it also fits aerospace applications where reliable angular contact is needed. Its P6 tolerance ensures consistent performance across different industries.

Perfect Fit for Automation: 7221 BECBP Bearing
The 7221 BECBP Bearing works well in robotic arms, offering smooth movement thanks to its nylon cage. Its metric sizing makes it compatible with various automation equipment.
