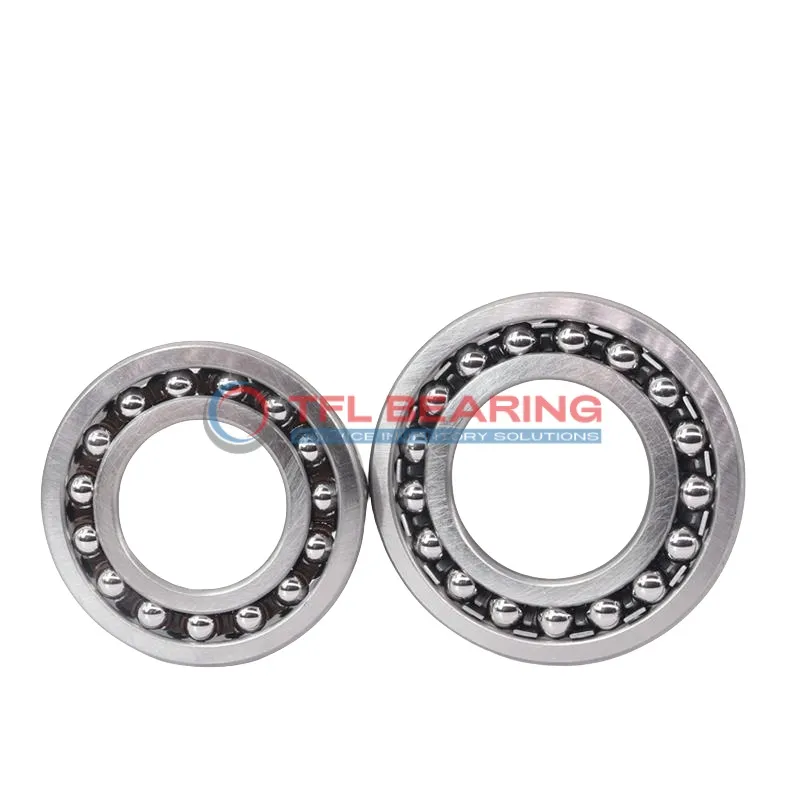

Self Aligning Ball Bearings 1217-K C/3

Brand: TFL Bearing Interchangeable: SKF 1217-K C/3 85 mm × 150 mm × 28 mm Metric Open
Part number: 1217-K C/3
Self Aligning Ball Bearings 1217-K C/3
In Stock
US$121.72 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.018mm to 0
Width28 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring107 mm
Internal Diameter On Outer Ring131 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load10,980 lbf
Static Radial Load4,680 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight2.05 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1217-K C/3 is a self-aligning ball bearing with an 85mm tapered bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 10980 lbf and operates smoothly at speeds reaching 5600 RPM.

Its double-row design and open construction allow for easy lubrication and maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 2.05kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Performance Features of 1217-K C/3 Bearing

1217-K C/3 Bearing is designed with a double-row ball construction, offering excellent radial load capacity up to 10980 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in various applications.

The tapered bore design of 1217-K C/3 Bearing allows for secure mounting, enhancing stability during operation.
With a maximum speed of 5,600 rpm, it balances performance and reliability.

1217-K C/3 Bearing operates smoothly in temperatures ranging from -30° to 110°C, making it versatile for different environments.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Lubrication is simplified with 1217-K C/3 Bearing, ensuring consistent performance with minimal maintenance.
Its open seal design allows for easy inspection and re-lubrication when needed.

Application

Industrial Uses of 1217-K C/3 Bearing
The 1217-K C/3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its double-row design helps distribute radial loads evenly, ensuring smooth operation.

In automotive applications, 1217-K C/3 Bearing fits well in gearboxes and drivetrains, where its tapered bore provides a secure fit. The chrome steel construction ensures durability under varying loads and speeds.

For automation equipment, 1217-K C/3 Bearing offers reliable performance in robotic arms and assembly lines. The open seal design allows for easy lubrication, extending its service life in high-use environments.

Where Is 1217-K C/3 Bearing Used?
You’ll often find 1217-K C/3 Bearing in heavy machinery, such as mining equipment, where its self-aligning feature handles shaft misalignment effortlessly. The stainless steel cage adds extra resistance to wear and corrosion.

In household appliances like washing machines, 1217-K C/3 Bearing provides quiet and efficient operation. Its metric sizing makes it compatible with a wide range of European and Asian models, ensuring versatility.

Built for Heavy-Duty Use: 1217-K C/3 Bearing
The 1217-K C/3 Bearing excels in construction equipment, where its high dynamic radial load capacity supports heavy loads. The lubricated design reduces friction, enhancing performance in demanding conditions.

Medical devices like centrifuges benefit from 1217-K C/3 Bearing’s precision and reliability. The chrome steel rings and balls ensure consistent operation, even in high-speed scenarios.

Automotive vs Aerospace: Applications of 1217-K C/3 Bearing
In automotive systems, 1217-K C/3 Bearing is ideal for wheel hubs and transmissions, thanks to its tapered bore and radial load capacity. The aerospace industry values it for auxiliary systems where alignment flexibility is crucial.

For industrial pumps, 1217-K C/3 Bearing’s self-aligning feature reduces wear caused by shaft deflection. The open seal allows for easy maintenance, making it a practical choice for long-term use.
