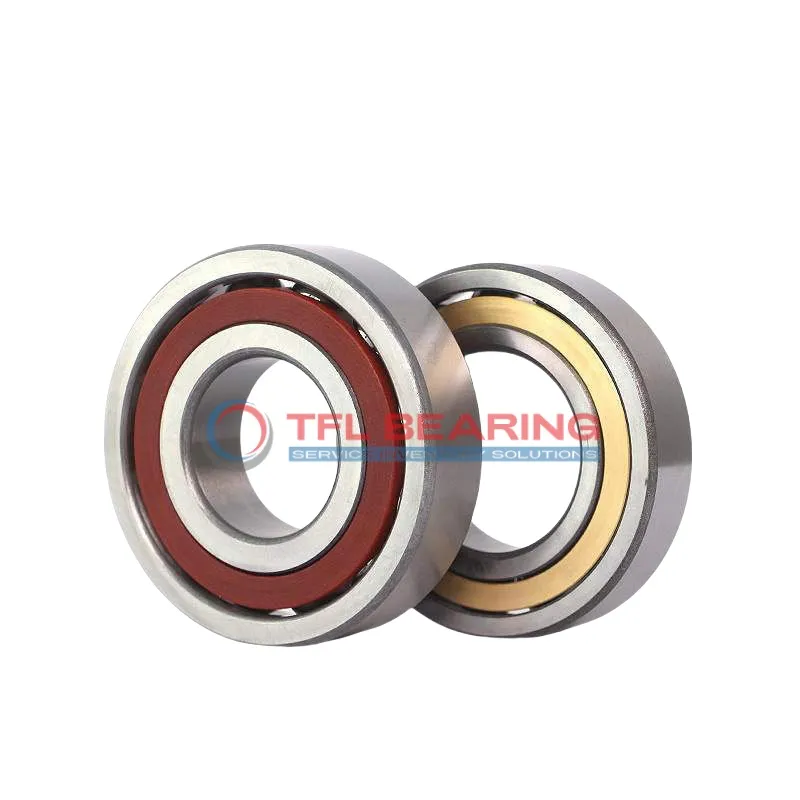

Single Row Angular Contact Ball Bearings (General) 7210 ACCBM

Single Row Angular Contact Ball Bearings (General) 7210 ACCBM

The 7210 ACCBM is a single-row angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports both radial and axial loads, with a dynamic radial load capacity of 10238 lbf.

With a 25° contact angle, it efficiently handles combined loads while spinning smoothly at speeds up to 14000 RPM. The brass cage enhances durability and reduces friction during operation.

Its open design allows for easy lubrication, and it performs reliably in temperatures from -30°C to 110°C. The bearing meets P6 tolerance standards for precise applications.

Ideal for machinery like pumps or gearboxes where angular contact is needed. Weighing 0.47kg, it’s a robust choice for industrial use, compliant with RoHS and REACH regulations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7210 ACCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 25°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 65.67 mm
  • External Diameter On Inner Ring (Small Side Face) 57.65 mm
  • Internal Diameter On Outer Ring 75.05 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 26 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 10238 lbf
  • Static Radial Load 7988 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 0.47 kg
Single Row Angular Contact Ball Bearings (General) 7210 ACCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7210 ACCBM Bearing

7210 ACCBM Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for smooth operation.

With a dynamic radial load capacity of 10238 lbf, 7210 ACCBM Bearing performs reliably under heavy loads.
The P6 tolerance class guarantees precision, making it suitable for high-speed applications up to 14,000 rpm.

Designed for a temperature range of -30° to 110°C, 7210 ACCBM Bearing adapts to various operating conditions.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7210 ACCBM Bearing
The 7210 ACCBM Bearing is commonly used in machine tools, where its angular contact design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds, making it suitable for precision equipment.

In automotive applications, 7210 ACCBM Bearing works well in wheel hubs and transmissions, thanks to its 25° contact angle. Its P6 tolerance class provides the accuracy needed for reliable performance in vehicles.

For automation systems, 7210 ACCBM Bearing supports robotic arms and conveyor belts, where consistent load distribution is key. The chrome steel construction offers durability in demanding industrial environments.

Medical imaging devices benefit from 7210 ACCBM Bearing’s low friction and stable operation. Its lubricated design ensures quiet performance, which is essential in sensitive medical settings.

In household appliances like washing machines, 7210 ACCBM Bearing provides long-lasting performance. The metric sizing makes it easy to replace in various European and Asian models.
