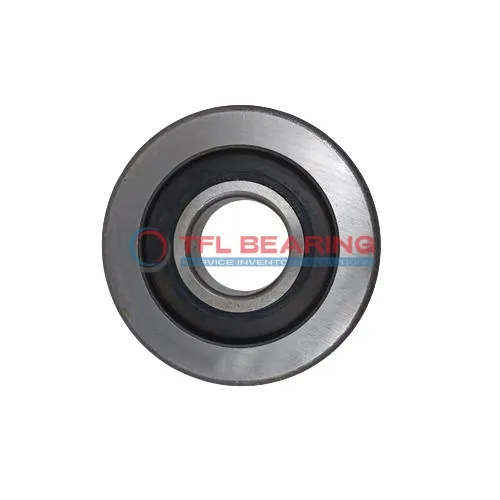

Mast Guide Bearings MG 307 FFB

Mast Guide Bearings MG 307 FFB

The MG 307 FFB is a mast guide bearing measuring 35mm in inner diameter and 101mm in outer diameter, with a compact width of 31.8mm. Built for durability, it handles dynamic loads up to 33,540 N and static loads up to 19,230 N.

Its sturdy construction includes a 21mm wide inner ring and a 3mm radius for smooth operation. The bearing weighs 1.18kg, offering a good balance between strength and portability.

Ideal for mast guidance systems, this bearing ensures reliable performance in demanding conditions. Its robust design makes it suitable for heavy-duty applications where precision and longevity are key.

Compatible with OEM standards, it’s a practical choice for replacements or new installations. The simple yet effective design caters to both engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFB
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 101.00 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 31.800 mm
  • Radius (R) 3 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.1793 Kg
Mast Guide Bearings MG 307 FFB dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 FFB Bearing

MG 307 FFB Bearing is built to handle dynamic loads up to 33,540 N, making it suitable for demanding applications.
Its static capacity of 19,230 N ensures stability even under heavy loads.

The dimensions of 35.000 mm x 101.00 mm x 31.800 mm provide a compact yet robust design.
With a weight of 1.1793 Kg, it balances strength and ease of handling.

The 3 mm radius design reduces stress concentration, enhancing durability.
Its chrome steel construction ensures reliable performance in various industrial conditions.

Application

Industrial Uses of MG 307 FFB Bearing
MG 307 FFB Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads. The 35mm bore size makes it suitable for various shaft configurations.

In automotive applications, MG 307 FFB Bearing fits well in steering systems and drivetrains, offering reliable performance under constant stress. Its 101mm outer diameter provides stability in compact spaces.

For automation projects, MG 307 FFB Bearing ensures smooth movement in robotic arms and conveyor belts. The 31.8mm width balances load distribution, reducing wear over time.

Around the home, MG 307 FFB Bearing can be found in power tools like drills and saws, where its durability keeps things running smoothly. The 1.1793kg weight adds just enough heft for steady operation.
