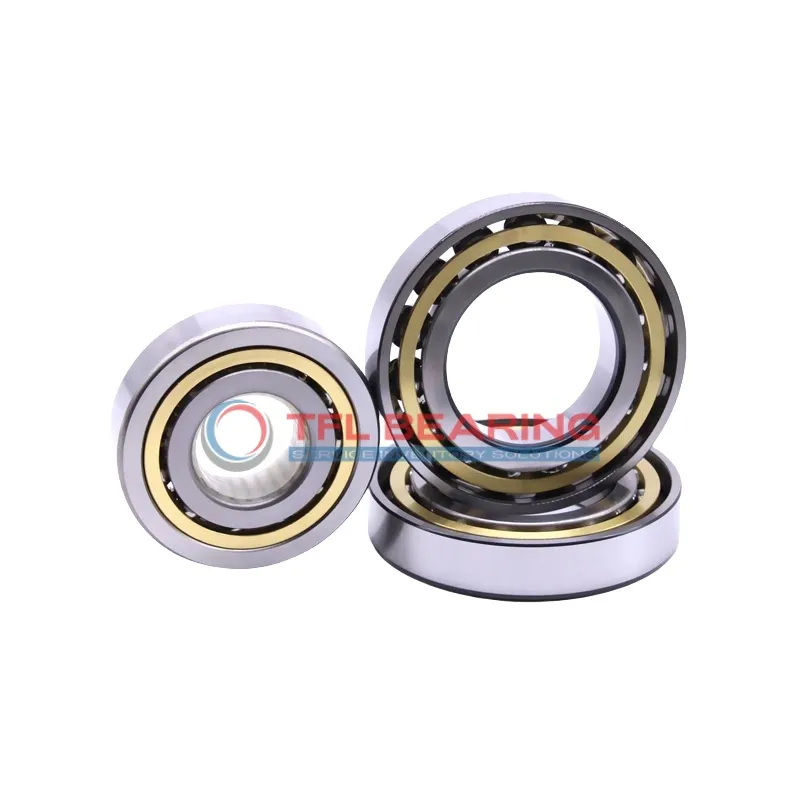

Single Row Angular Contact Ball Bearings (General) 7205 BEGBY

Brand: TFL Bearing Interchangeable: SKF 7205 BEGBY 25 mm × 52 mm × 15 mm Metric Open
Part number: 7205 BEGBY
Single Row Angular Contact Ball Bearings (General) 7205 BEGBY
In Stock
US$13.51 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia52 mm
Outer Dia Tolerance-0.011mm to 0
Width15 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)35.85 mm
External Diameter On Inner Ring (Small Side Face)30.87 mm
Internal Diameter On Outer Ring41.5 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load2,250 lbf
Temperature Range-30° to 110 °C
Max Speed17,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)24 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.13 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7205 BEGBY is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 3510 lbf and operates smoothly at speeds up to 17,000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows easy lubrication, while the brass cage ensures durability and quiet operation.

This bearing suits applications like pumps or electric motors where precise alignment is needed. Its compact 15mm width and 0.13kg weight make it ideal for space-conscious setups.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for hassle-free replacements. Works reliably in temperatures from -30°C to 110°C.

Features

Why Choose 7205 BEGBY Bearing for Precision Tasks?

7205 BEGBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

The bearing’s P6 tolerance class (ABEC-3) guarantees high accuracy, suitable for demanding applications.
With a maximum speed of 17,000 rpm, it delivers reliable performance in high-speed scenarios.

7205 BEGBY Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Key Fields for 7205 BEGBY Bearing
7205 BEGBY Bearing is commonly used in industrial machinery, especially in spindle assemblies and gearboxes where angular contact is needed. Its brass cage and chrome steel construction ensure smooth operation under radial and axial loads.

In automotive applications, 7205 BEGBY Bearing fits well in wheel hubs and transmissions, thanks to its 40° contact angle. The P6 tolerance class makes it reliable for high-precision components.

For automation systems, 7205 BEGBY Bearing works efficiently in robotic arms and CNC machines. Its open design allows for easy lubrication, extending service life in continuous operations.

Medical devices like centrifuges benefit from 7205 BEGBY Bearing’s stable performance. The temperature range of -30° to 110°C ensures reliability in various clinical environments.

Household appliances such as washing machines also use 7205 BEGBY Bearing for its durability. The metric sizing ensures compatibility with a wide range of consumer products.
