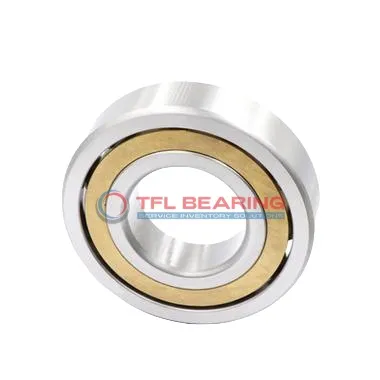

Single Row Angular Contact Ball Bearings (General) 718/560 AMB

Brand: TFL Bearing Interchangeable: SKF 718/560 AMB 560 mm × 680 mm × 56 mm Metric Open
Part number: 718/560 AMB
Single Row Angular Contact Ball Bearings (General) 718/560 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia560 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia680 mm
Outer Dia Tolerance-0.045mm to 0
Width56 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)600 mm
External Diameter On Inner Ring (Small Side Face)600 mm
Internal Diameter On Outer Ring640.65 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load89,325 lbf
Static Radial Load209,250 lbf
Temperature Range-30° to 110 °C
Max Speed900 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)207 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight41.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 718/560 AMB is a single-row angular contact ball bearing with a 560mm bore and 680mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 89325 lbf and operates smoothly at speeds up to 900 RPM.

With a 40° contact angle, it handles combined loads effectively, while the brass cage ensures durability. The open design allows for easy lubrication and maintenance.

This bearing is suitable for heavy-duty applications like industrial gearboxes or large machinery, where precision and reliability are key. It works in temperatures from -30°C to 110°C.

Weighing 41.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.

Features

Why Choose 718/560 AMB Bearing for Precision Tasks?

718/560 AMB Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 89,325 lbf, it performs reliably in demanding applications.
The P6 tolerance class (ABEC-3) ensures high precision for critical tasks.

Designed for a maximum speed of 900 rpm, it balances performance and durability.
Its open design simplifies lubrication, maintaining efficiency over time.

Application

Industrial Uses of 718/560 AMB Bearing
718/560 AMB Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its angular contact design handles combined radial and axial loads effectively. The brass cage ensures smooth operation even under high stress conditions.

Where Is 718/560 AMB Bearing Used?
You’ll often find 718/560 AMB Bearing in wind turbine systems, where its robust construction and P6 tolerance class provide reliable performance. Its large bore size makes it suitable for heavy-duty rotating equipment.

Built for Heavy-Duty Use: 718/560 AMB Bearing
718/560 AMB Bearing excels in applications like mining equipment, where its chrome steel rings and brass cage withstand harsh environments. The 40° contact angle offers excellent load distribution for demanding tasks.

Automotive vs Aerospace: Applications of 718/560 AMB Bearing
In automotive applications, 718/560 AMB Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems due to its precision and durability. The lubricated design ensures long service life in both sectors.

Practical Applications of 718/560 AMB Bearing
718/560 AMB Bearing is ideal for large pumps and compressors, where its static radial load capacity ensures stability. The metric sizing and open seal type simplify maintenance in industrial settings.
