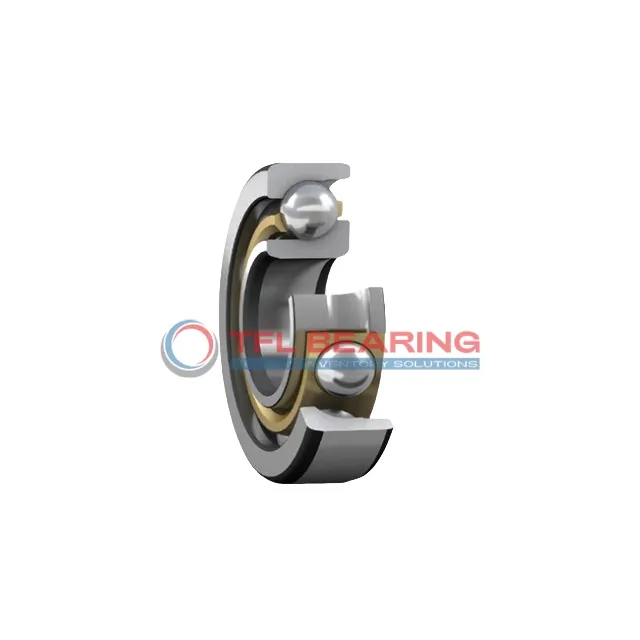

Single Row Angular Contact Ball Bearings (General) 7076 BGM

Brand: TFL Bearing Interchangeable: SKF 7076 BGM 380 mm × 560 mm × 82 mm Metric Open
Part number: 7076 BGM
Single Row Angular Contact Ball Bearings (General) 7076 BGM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia380 mm
Bore Dia Tolerance-0.03mm to 0
Outer Dia560 mm
Outer Dia Tolerance-0.038mm to 0
Width82 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)451.1 mm
External Diameter On Inner Ring (Small Side Face)418.89 mm
Internal Diameter On Outer Ring489.25 mm
Chamfer Dimension5 mm
Performance
Dynamic Radial Load105,300 lbf
Static Radial Load191,250 lbf
Temperature Range-30° to 110 °C
Max Speed1,200 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)238 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight65.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7076 BGM is a single-row angular contact ball bearing with a 380mm bore and 560mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 105300 lbf and operates smoothly at speeds up to 1200 RPM.

Its 40° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design simplifies lubrication, and it performs reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Suitable for heavy-duty machinery like pumps or compressors where angular contact is needed.

Weighing 65.5kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe industrial use.

Features

Performance Features of 7076 BGM Bearing

7076 BGM Bearing is built with a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, supporting dynamic radial loads up to 105,300 lbf.

The brass cage ensures smooth ball movement, reducing friction and wear during operation.
With a maximum speed of 1,200 rpm, it balances performance and durability in demanding applications.

Designed for a temperature range of -30° to 110°C, 7076 BGM Bearing performs reliably in varied conditions.
Its P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-accuracy machinery.

Application

Industrial Uses of 7076 BGM Bearing
The 7076 BGM Bearing is commonly used in heavy machinery, such as large-scale lathes and milling equipment, where its angular contact design handles combined loads effectively. Its brass cage ensures smooth operation even under high radial forces.

In wind turbine systems, 7076 BGM Bearing supports the main shaft, providing stability and durability in demanding conditions. The P6 tolerance class makes it suitable for precision applications where minimal vibration is crucial.

For industrial pumps and compressors, 7076 BGM Bearing’s chrome steel construction offers reliable performance in continuous operation. The open seal design allows for easy lubrication, extending the bearing’s service life in harsh environments.

Where Is 7076 BGM Bearing Used?
You’ll often find 7076 BGM Bearing in construction equipment like cranes and excavators, where its high static load capacity is essential. The 40° contact angle ensures optimal load distribution during heavy lifting operations.

In railway applications, 7076 BGM Bearing is used in axle boxes, providing smooth rotation and resistance to shock loads. Its metric dimensions make it compatible with various European rail standards.

Built for Heavy-Duty Use: 7076 BGM Bearing
The 7076 BGM Bearing excels in steel rolling mills, where its large bore and width handle extreme radial and axial forces. The lubricated design reduces friction, maintaining efficiency even at lower speeds.

For mining equipment, 7076 BGM Bearing’s robust construction withstands abrasive conditions and heavy loads. Its temperature range of -30° to 110°C ensures performance in diverse operating environments.
